Drilling and milling head, straight, angular adjustable collet chuck, ER20A, PRECI-FLEX®, external coolant supply
| 产品编号 | 4.201.880 |
| 适配 | EMAG VL4 (VDI40) |
| 翻译 | 1:1 |
| 输入转速 | max. 5000 1/min |
| 输出转速 | max. 5000 1/min |
| 输出扭矩 | max. 13 Nm |
| 旋转方向 |  |
| 交货期 | without wrench and collets * Actual size inscribed on the tool |
| 附件 | Collets see Equipment for Toolholders Z2. Wrench for spindle 10006 PRECI-FLEX® Adapter Spindle cover see P99.1 |
Zusätzliche CAD-Dateien finden Sie hier:

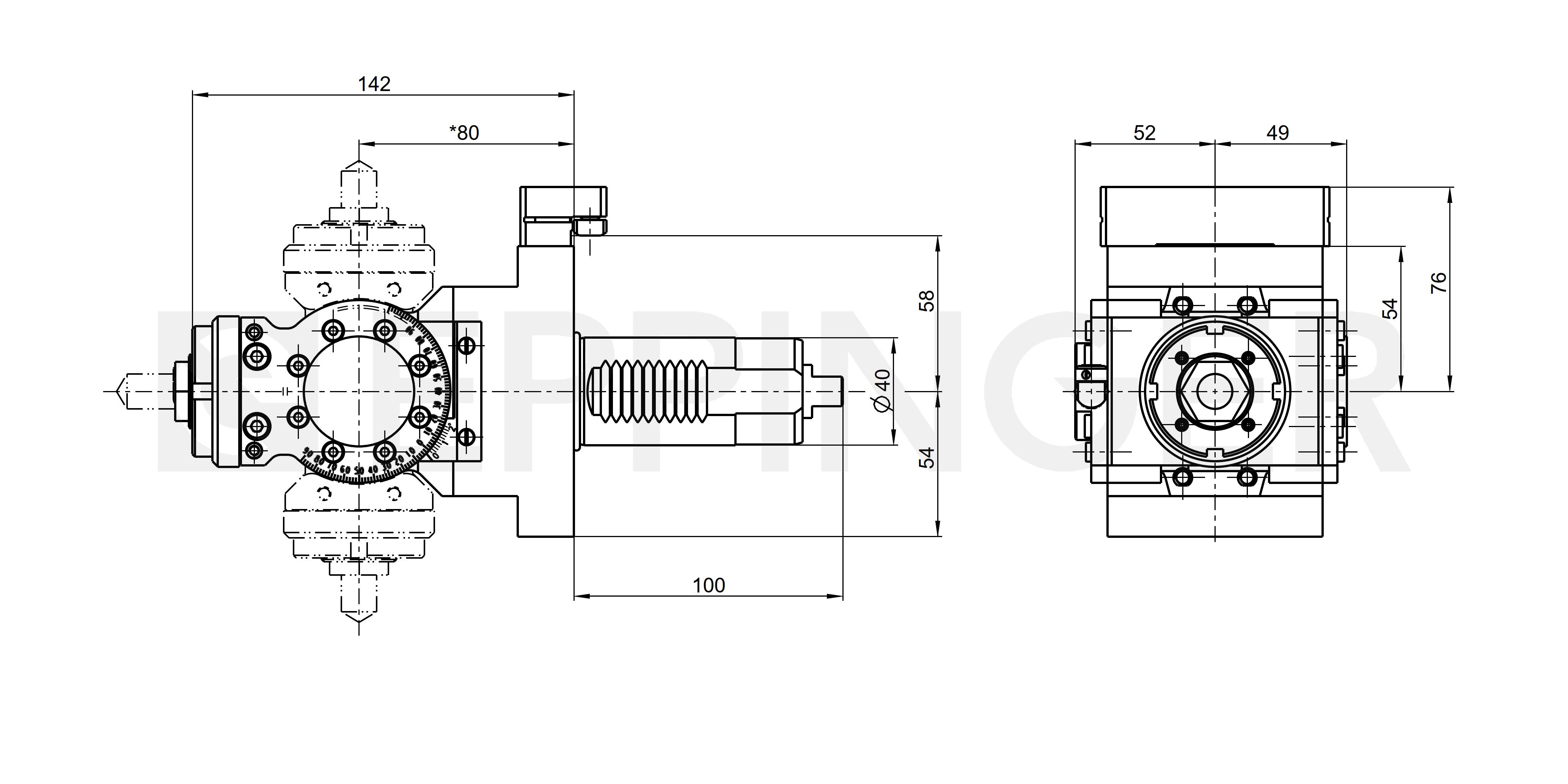

2D 视图

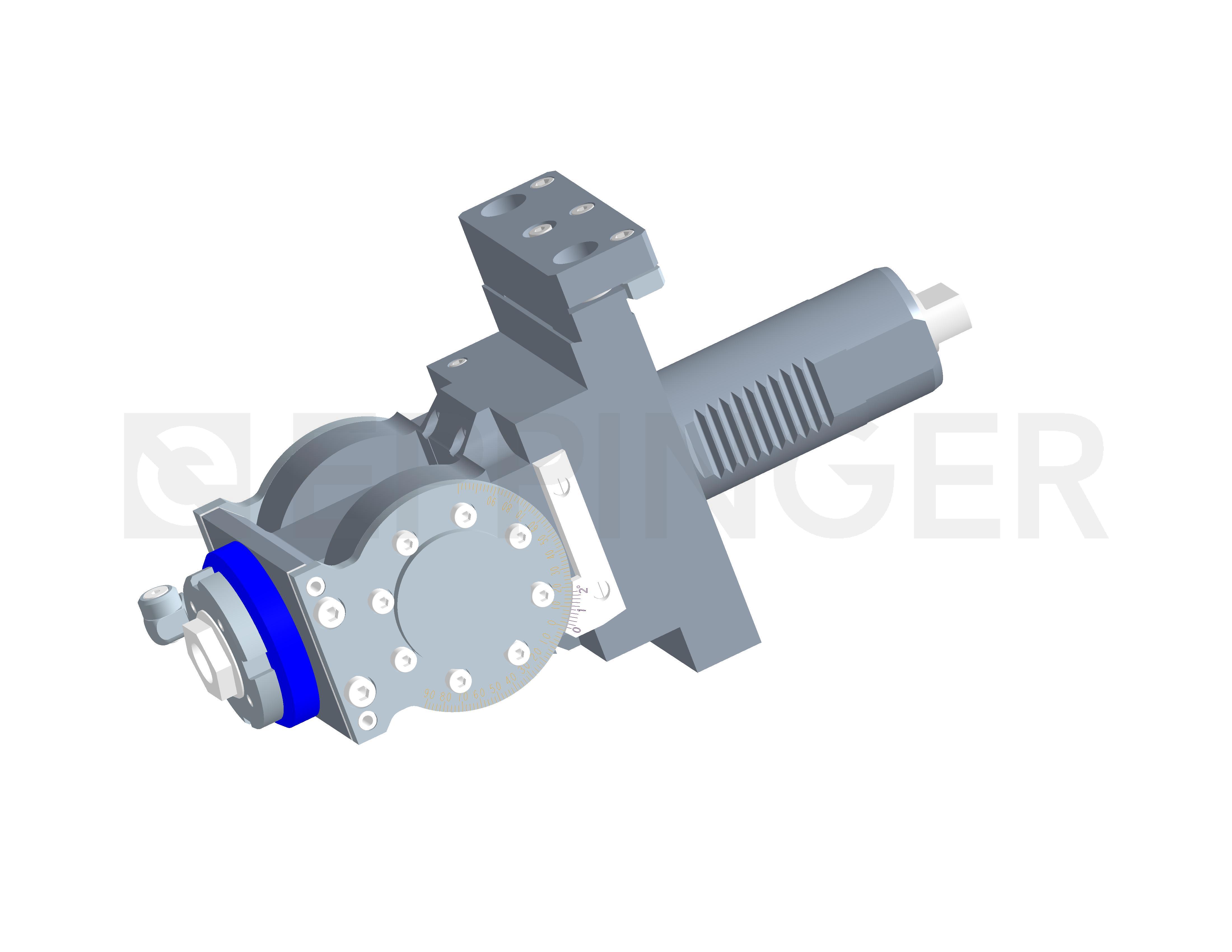

3D 视图
