Detailed View

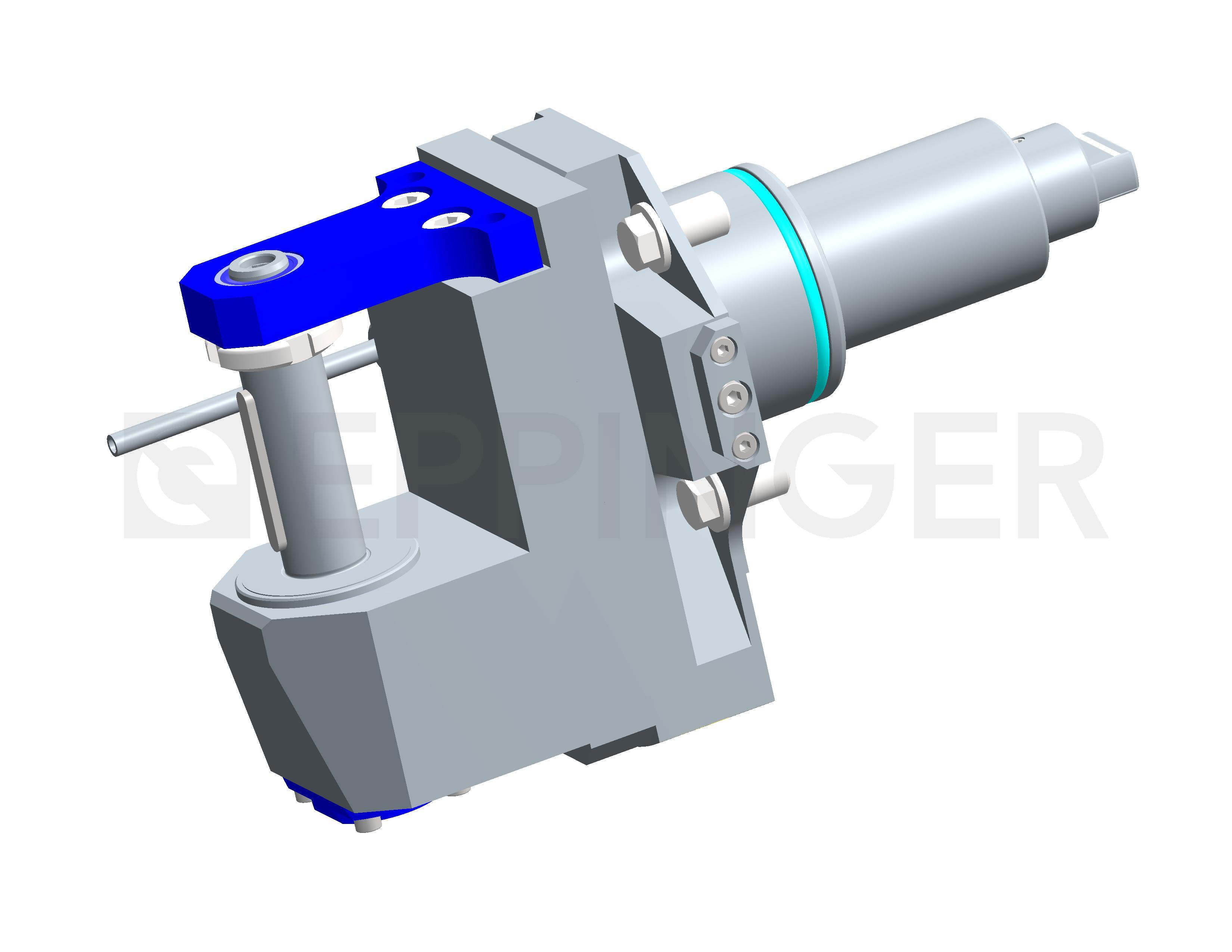

Device for gear milling chuck for cutter arbor Ø22, angle adjustable ±20°, CC
| Part Number | 7.170.555 |
| for | EMAG VT4/VT200 VTC200/250 (BMT65) (*) |
| Ratio | 2:1 |
| rpm at Input | max. 6000 rpm |
| rpm at Output | max. 3000 rpm |
| Torque at Output | max. 45 Nm |
| Direction of Rotation |  |
Additional CAD Files:

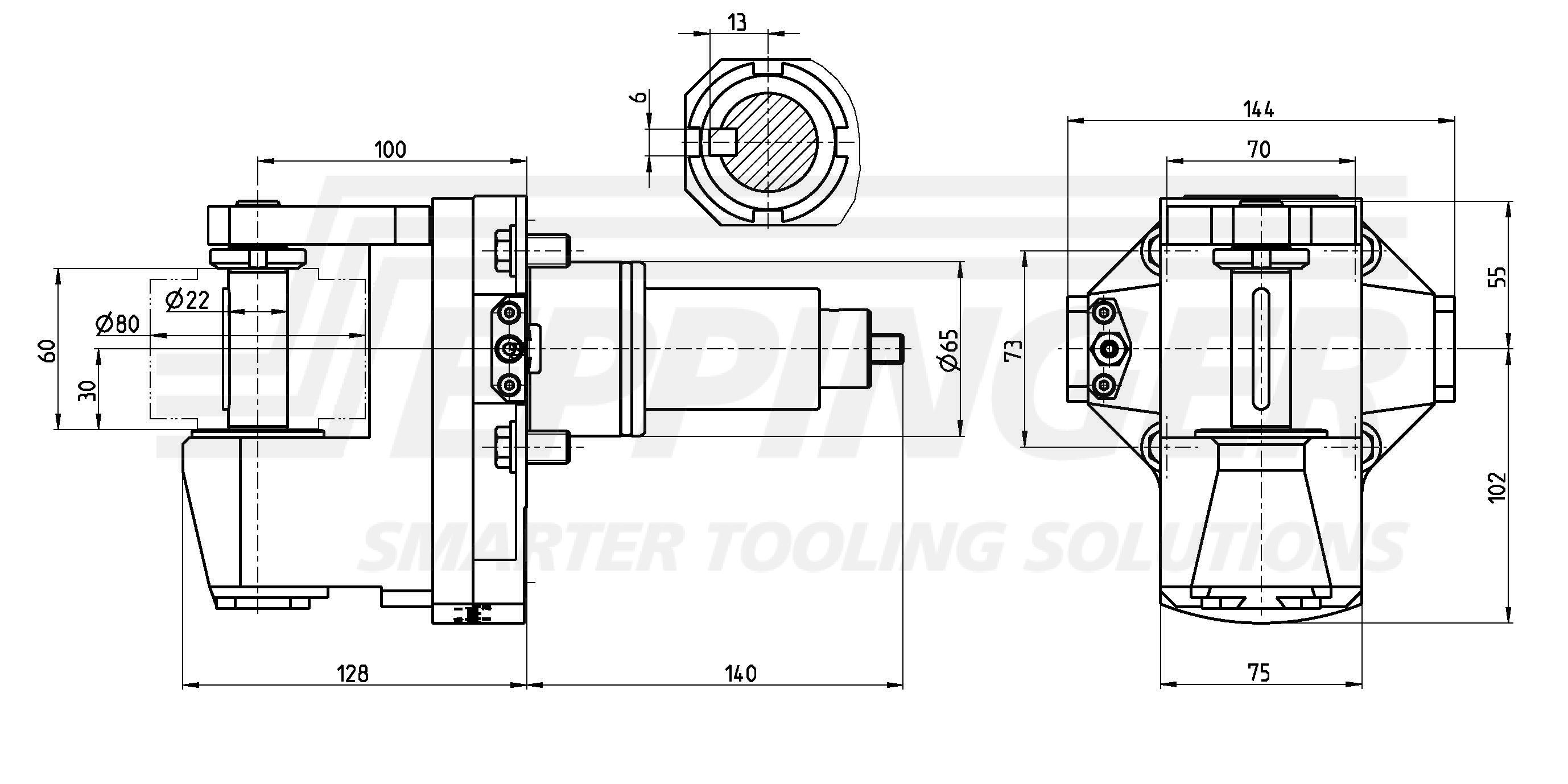

2D-View
3D-View

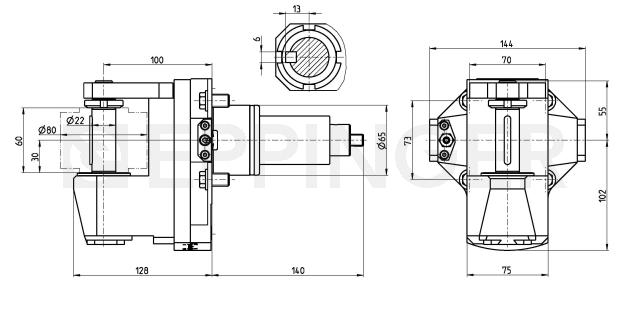

2D-View
3D-View / QR-Code
