Drilling and milling head, angular, left hand adjustable alignment pin collet chuck, ER20A, PRECI-FLEX® external and central coolant supply
| Part Number | 3.201.295 |
| for | DMG MORI NL1500-2500 (VDI30) |
| Ratio | 1:1 |
| rpm at Input | max. 6000 rpm |
| rpm at Output | max. 6000 rpm |
| Torque at Output | max. 30 Nm |
| Direction of Rotation |  |
| Scope of Delivery | without wrench and collets * Actual size inscribed on the tool |
| Accessories | Collets see Equipment for Toolholders Z2.1 Sealing washers see Equipment for Toolholders Z4.1 Wrench for spindle 10006 PRECI-FLEX® Adapter Spindle cover see P99.1 Coolant tubes 218.844.220 |
Additional CAD Files:

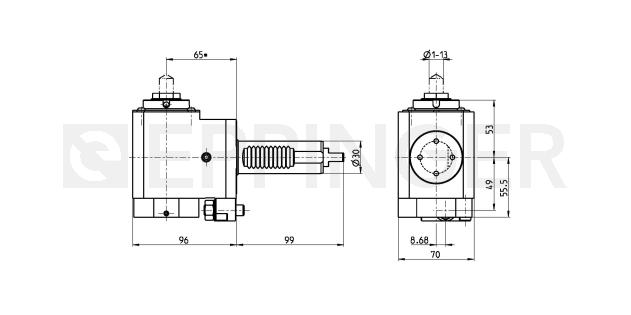

2D-View
3D-View

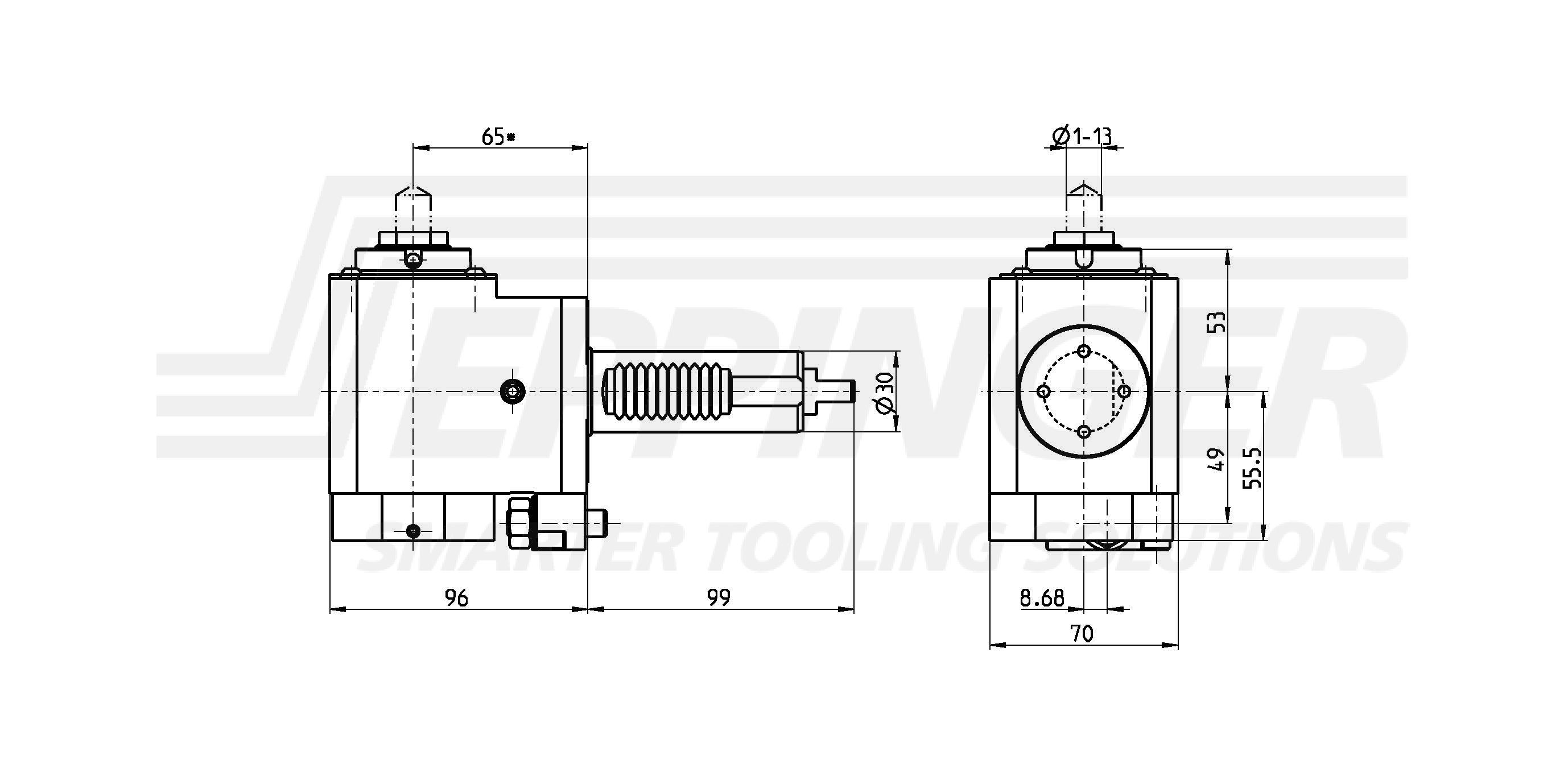

2D-View

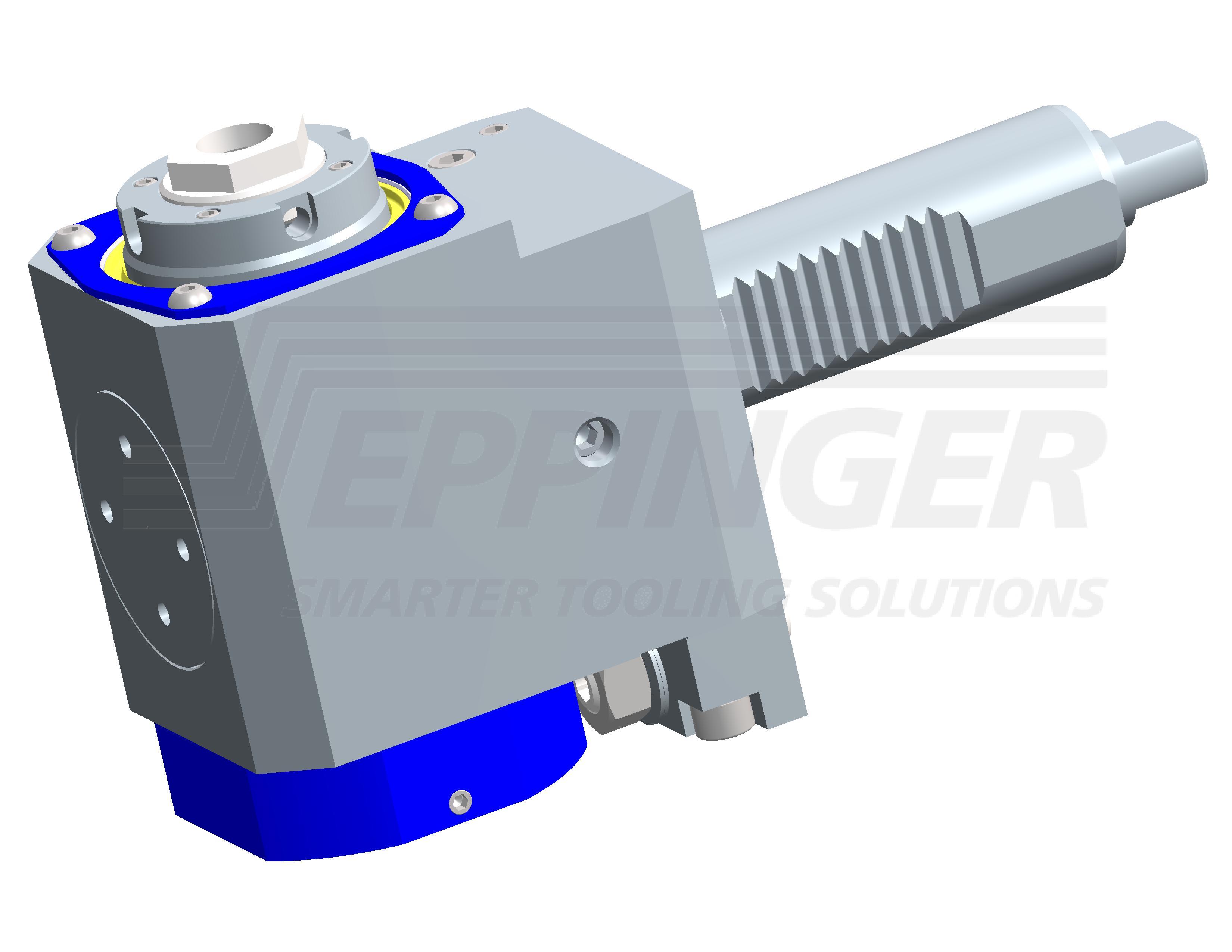

3D-View / QR-Code
