Detailed View
Drilling and milling head, straight, double, Z offset collet chuck, ER20A, PRECI-FLEX® external coolant supply
| Part Number | 7.077.920 |
| for | Miyano ABX-TH2 |
| Ratio | 1:1 |
| rpm at Input | max. 6000 rpm |
| rpm at Output | max. 6000 rpm |
| Torque at Output | max. 25 Nm |
| Direction of Rotation |  |
| Scope of Delivery | without wrench and collets |
| Accessories | Collets see Equipment for Toolholders Z2. Wrench for spindle 0.002.325 PRECI-FLEX® Adapter Protection cover for spindle see P99.1 |
Additional CAD Files:
2D-View

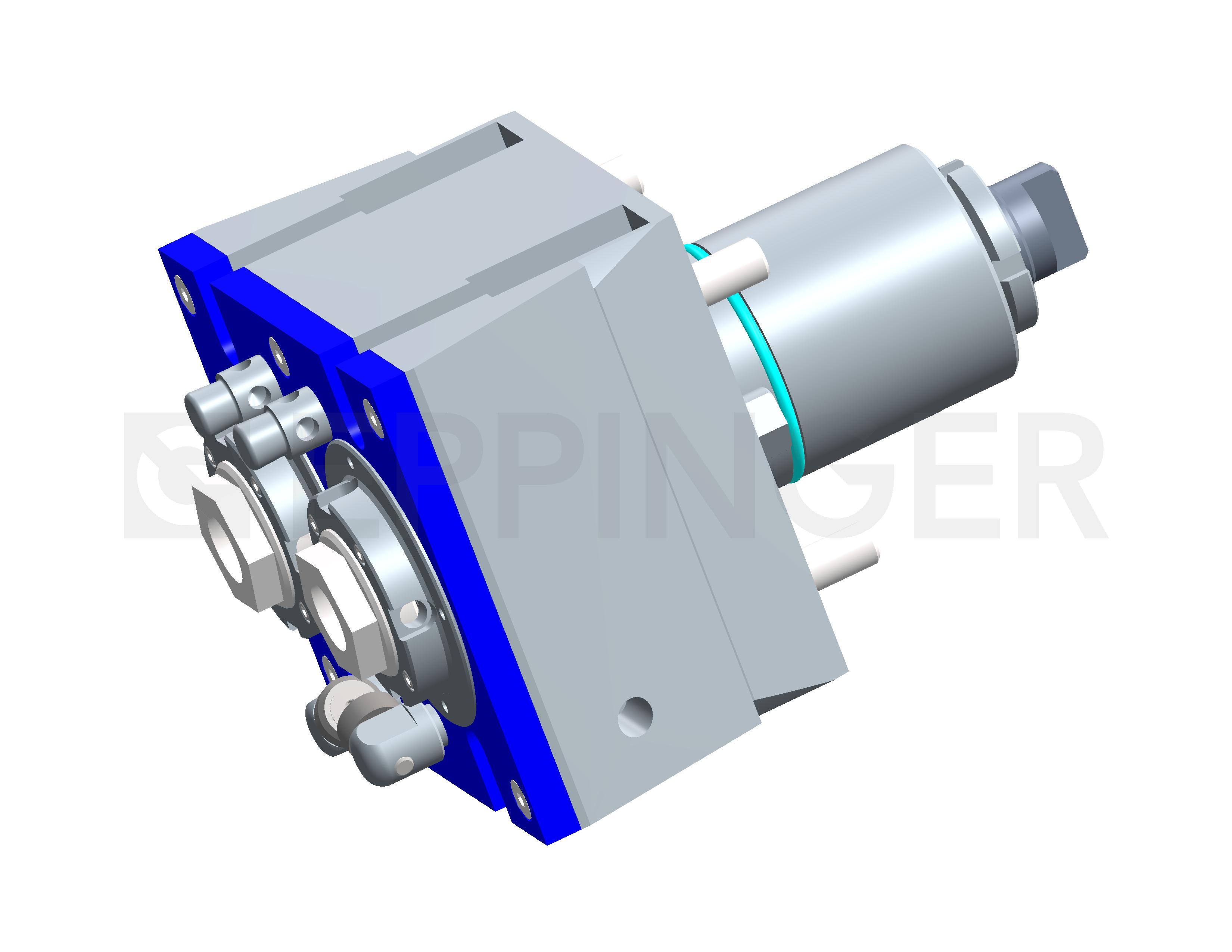

3D-View
2D-View
3D-View / QR-Code
