Drilling and milling head, straight collet chuck, ER25A, PRECI-FLEX®, external coolant supply

Part Number 7.074.816
for Miyano BNE-64SY2
Ratio1:1
rpm at Inputmax. 6000 rpm
rpm at Outputmax. 6000 rpm
Torque at Outputmax. 25 Nm
Direction of Rotation
Scope of Deliverywithout wrench and collets
AccessoriesCollets see Equipment for Toolholders Z2. Wrench for spindle 0.002.277 PRECI-FLEX® Adapter Spindle cover see P99.1
Additional CAD Files:

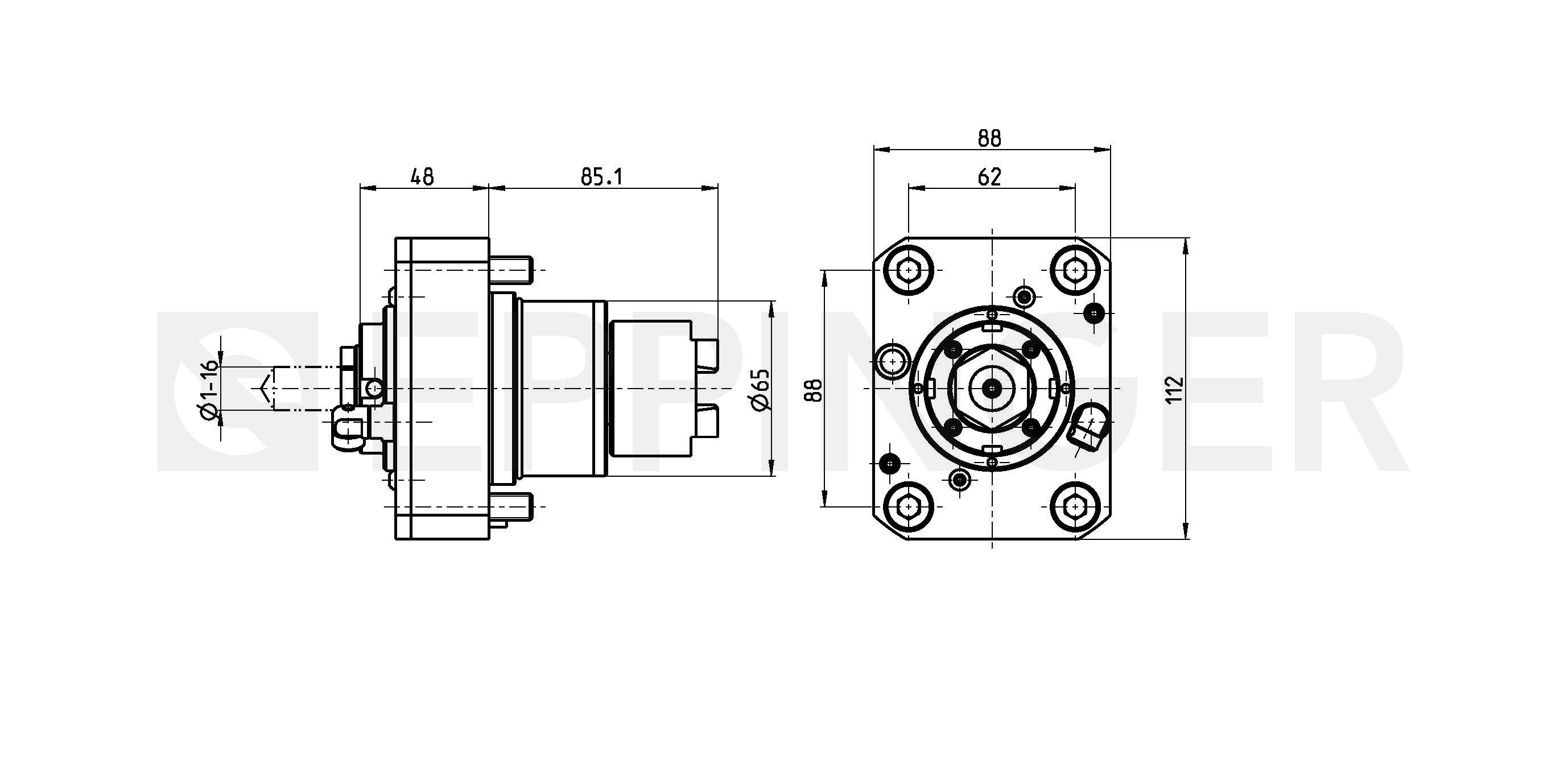

2D-View

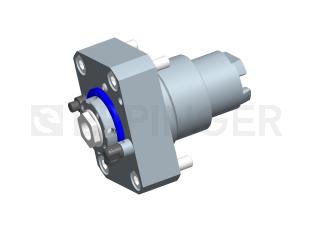

3D-View

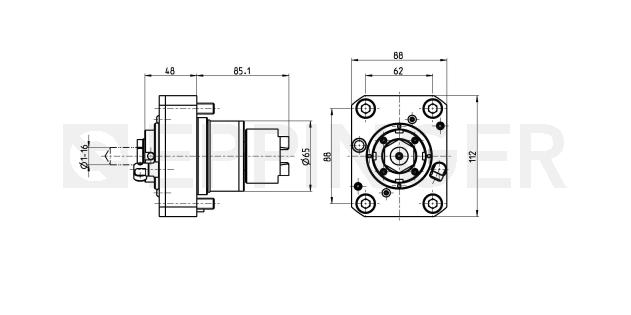

2D-View
3D-View / QR-Code

Upload to Smart Phone
