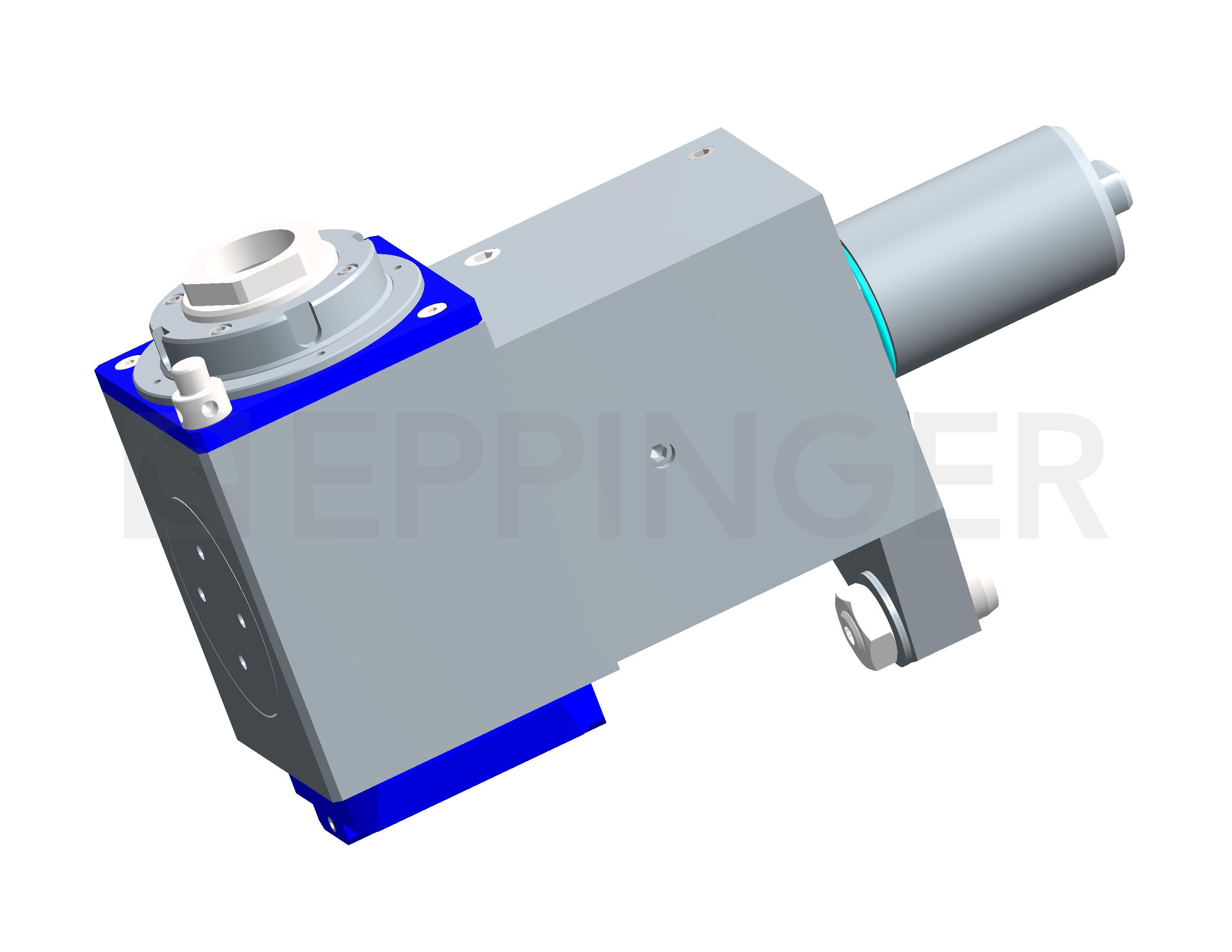

Drilling and milling head, angular, right hand adjustable alignment pin collet chuck, ER32A, PRECI-FLEX® external and central coolant supply
| 产品编号 | 7.078.850 |
| 适配 | 4 机型 |
| 翻译 | 2:1 |
| 输入转速 | max. 6000 1/min |
| 输出转速 | max. 3000 1/min |
| 输出扭矩 | max. 40 Nm |
| 旋转方向 |  |
| 交货期 | supplied with wrench, excluding collets * Actual size inscribed on the tool |
| 附件 | Collets see Equipment for Toolholders Z2.1 Sealing washers see Equipment for Toolholders Z4.1 PRECI-FLEX® Adapter Spindle cover see P99.1 Spindle sealing see P99.1 Coolant tubes 218.445.220 |
Zusätzliche CAD-Dateien finden Sie hier:

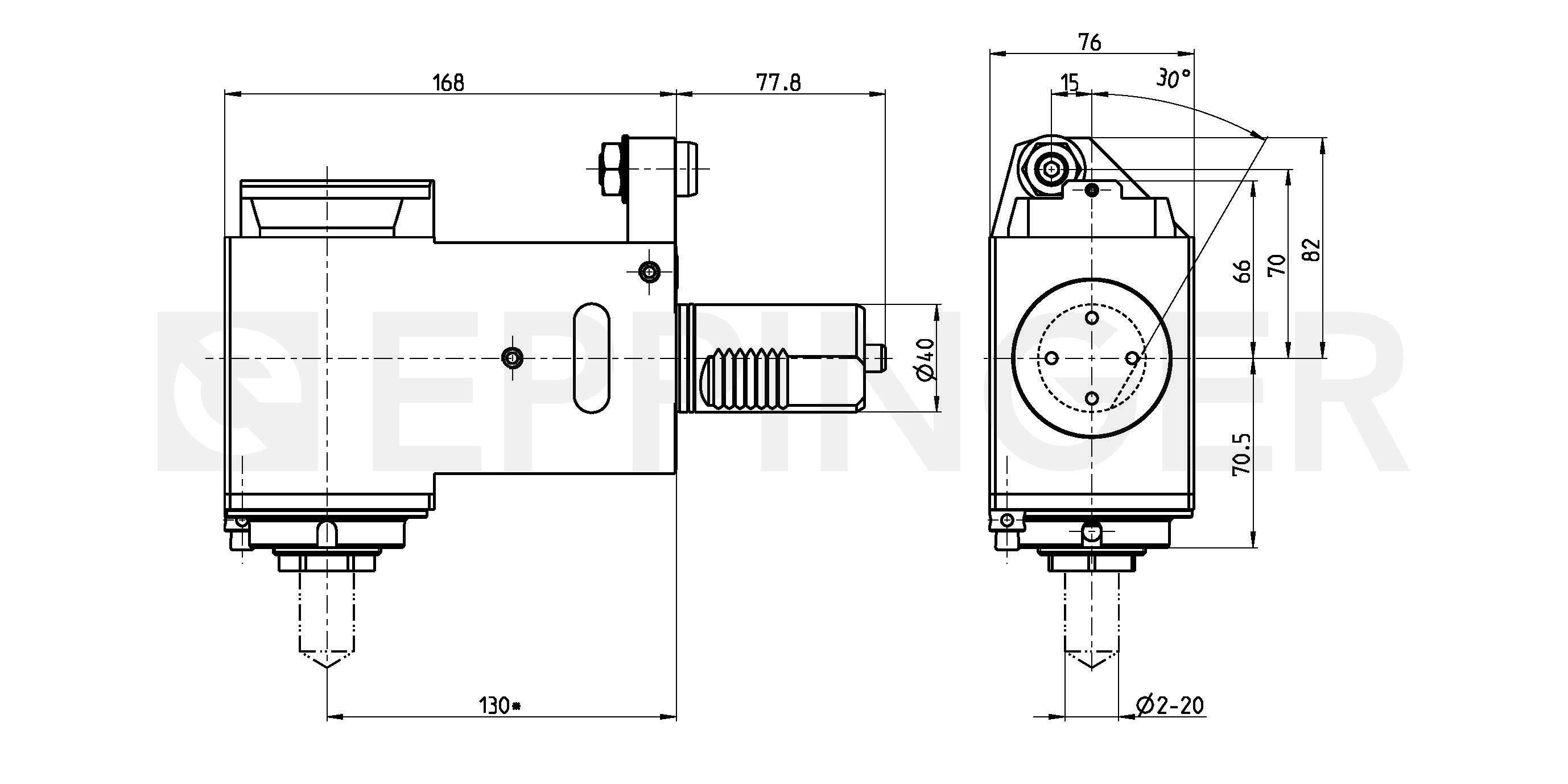

2D 视图
3D 视图
2D 视图
3D 视图 / 快速查询代码
