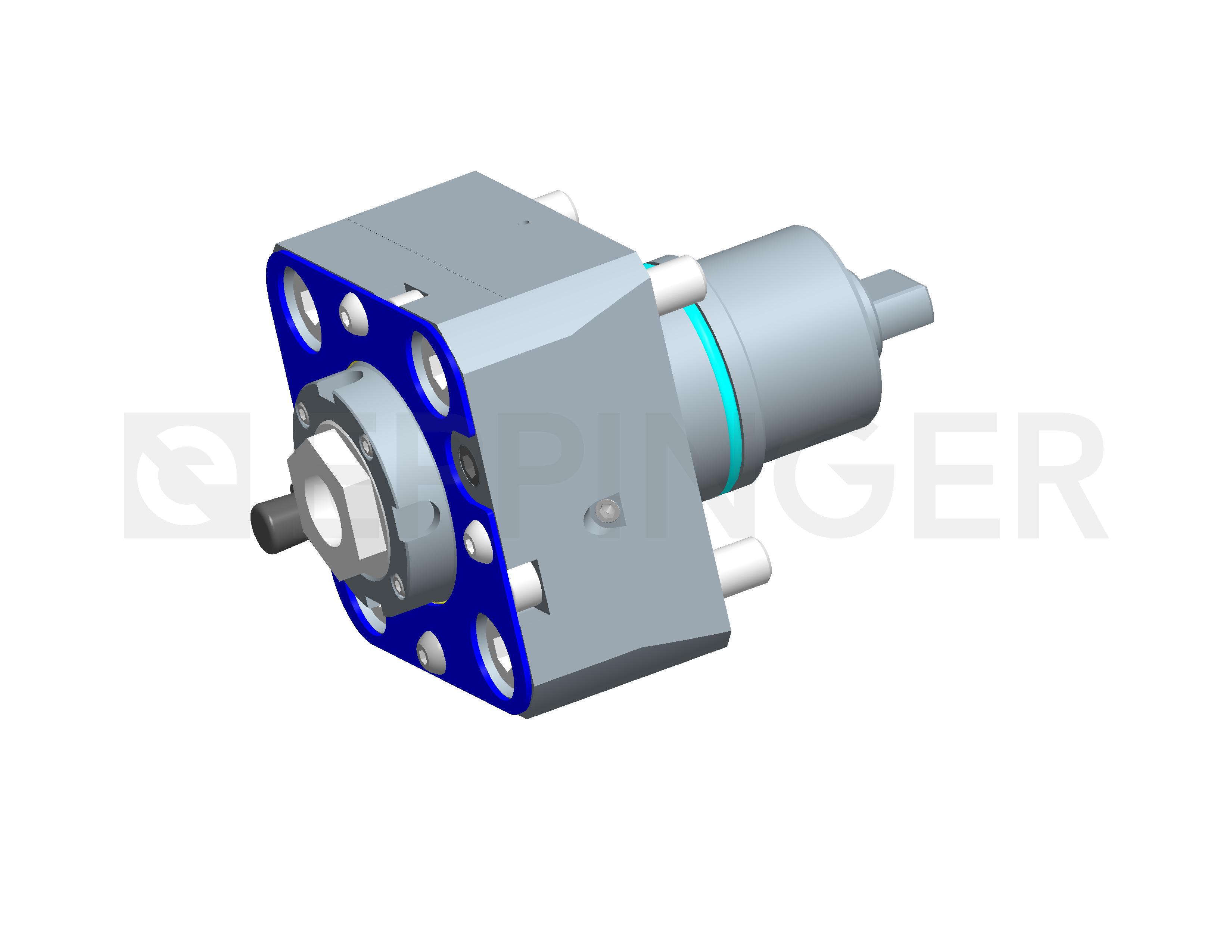

Drilling and milling head, straight collet chuck, ER20A, PRECI-FLEX® external and central coolant supply
| 产品编号 | 7.075.295 |
| 适配 | Biglia B436 |
| 翻译 | 1:1 |
| 输入转速 | max. 6000 1/min |
| 输出转速 | max. 6000 1/min |
| 输出扭矩 | max. 25 Nm |
| 旋转方向 |  |
| 交货期 | without wrench and collets |
| 附件 | Collets see Equipment for Toolholders Z2.1 Sealing washers see Equipment for Toolholders Z4.1 Wrench for spindle 7.075.341 PRECI-FLEX® Adapter Spindle cover see P99.1 Spindle sealing see P99.1 Coolant tubes 0.000.377 |
Zusätzliche CAD-Dateien finden Sie hier:

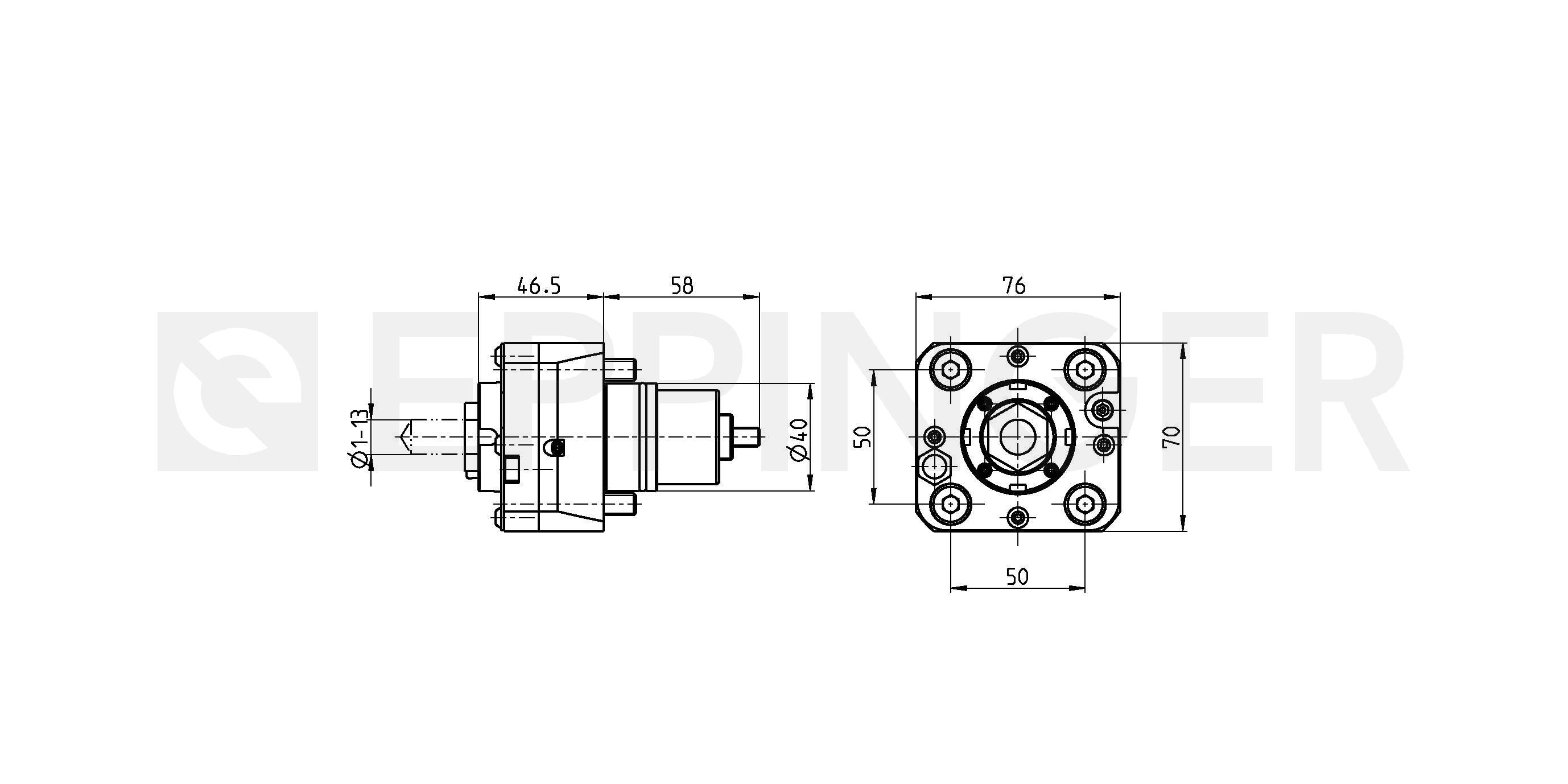

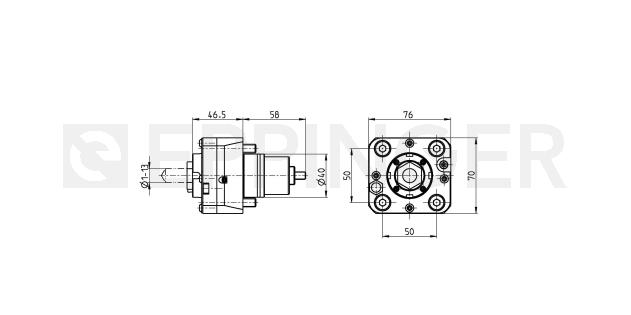

2D 视图
3D 视图
2D 视图
3D 视图 / 快速查询代码
