Drilling and milling head, straight - Y offset collet chuck, ER25A, PRECI-FLEX®, external coolant supply
| 产品编号 | 7.073.880 |
| 适配 | Goodway GTS100-GLS150 |
| 翻译 | 1:1 |
| 输入转速 | max. 6000 1/min |
| 输出转速 | max. 6000 1/min |
| 输出扭矩 | max. 25 Nm |
| 旋转方向 |  |
| 交货期 | without wrench and collets |
| 附件 | Collets see Equipment for Toolholders Z2.1 Sealing washers see Equipment for Toolholders Z4.1 Wrench for spindle 0.000.443 |
Zusätzliche CAD-Dateien finden Sie hier:

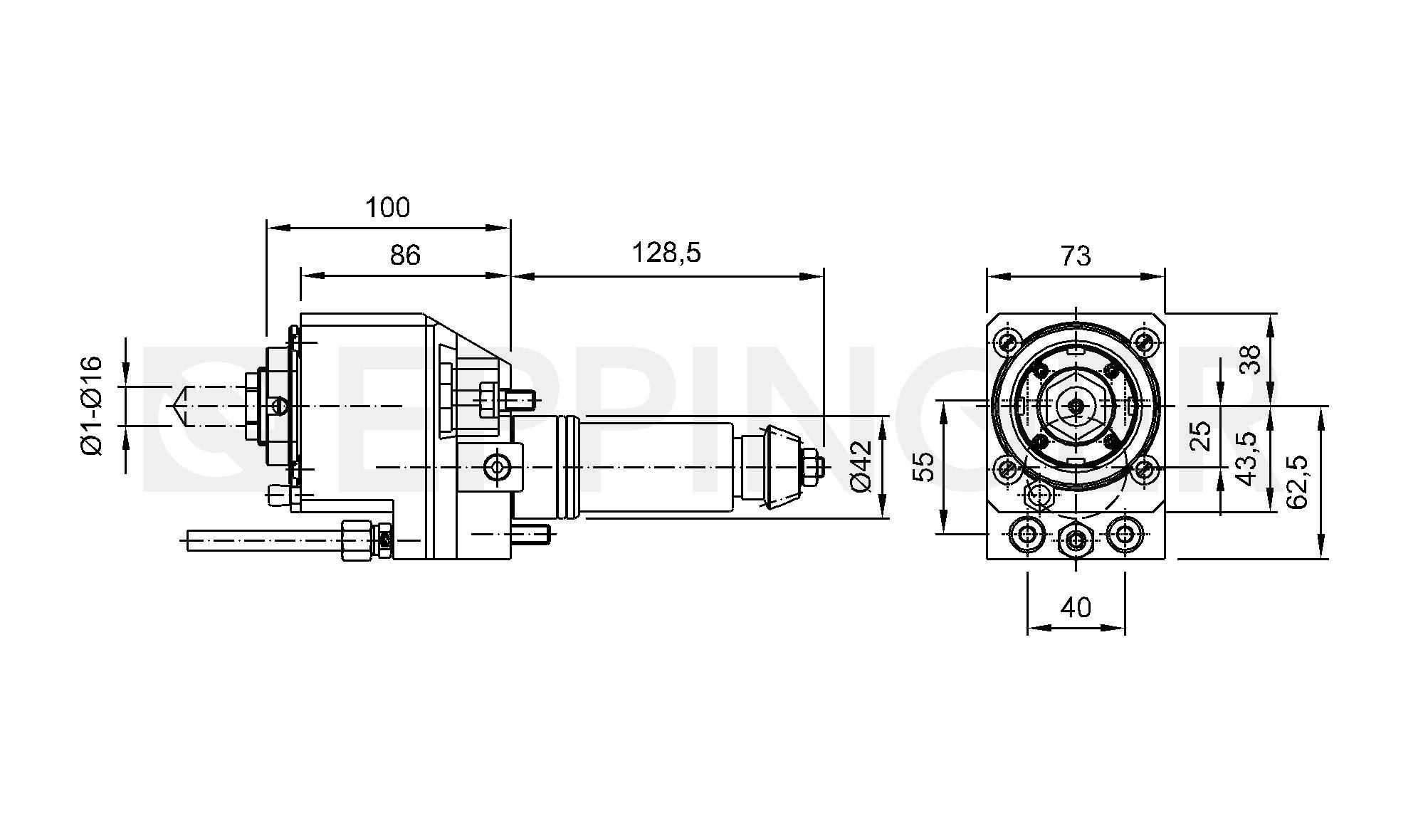

2D 视图

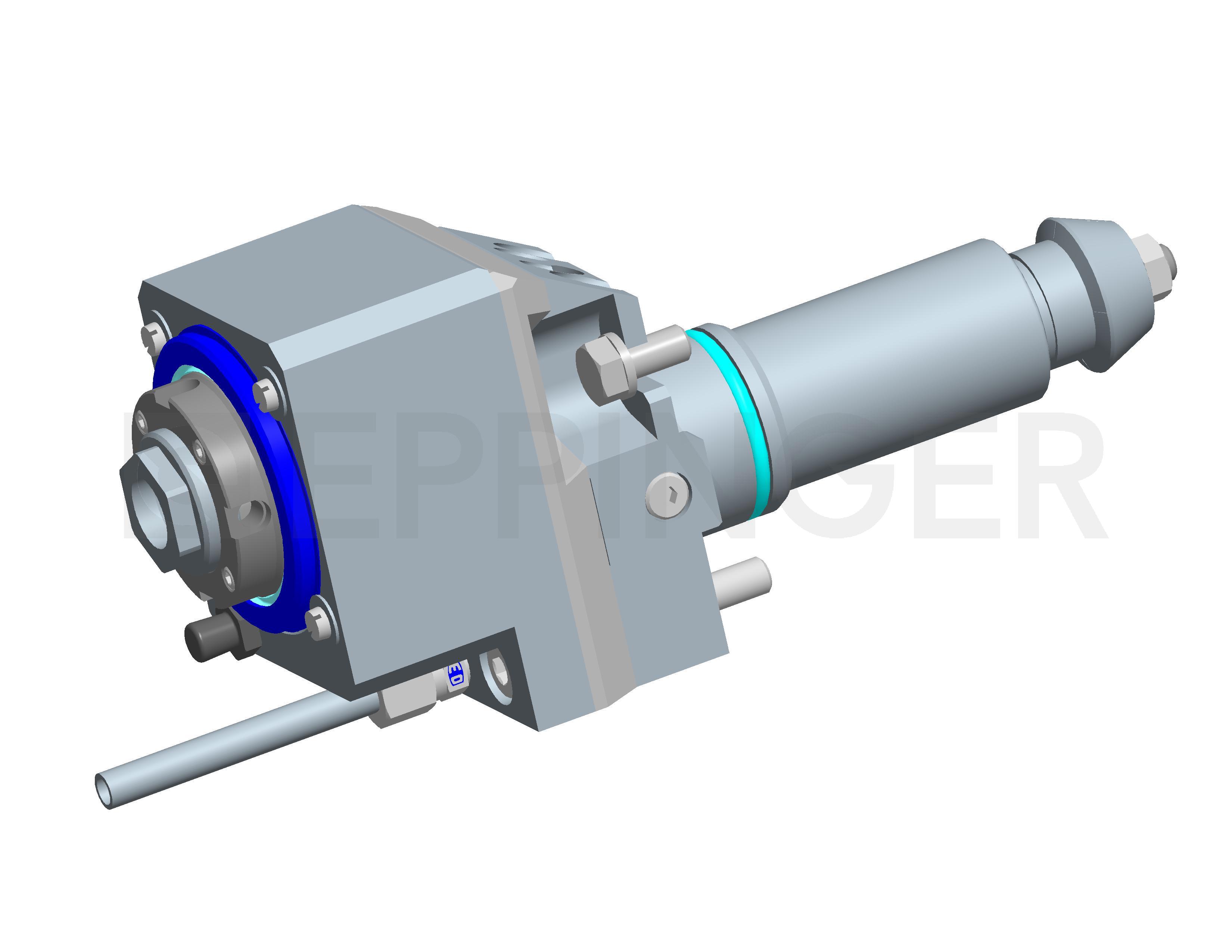

3D 视图
2D 视图
3D 视图 / 快速查询代码
