Drilling and milling head, angular, left hand collet chuck, ER25A, PRECI-FLEX® external and central coolant supply
| 产品编号 | 3.200.930 |
| 适配 | 2 机型 |
| 翻译 | 1:1 |
| 输入转速 | max. 6000 1/min |
| 输出转速 | max. 6000 1/min |
| 输出扭矩 | max. 40 Nm |
| 旋转方向 |  |
| 交货期 | without wrench and collets * Actual size inscribed on the tool |
| 附件 | Collets see Equipment for Toolholders Z2.1 Sealing washers see Equipment for Toolholders Z4.1 Wrench for spindle 10006 PRECI-FLEX® Adapter Spindle cover see P99.1 Spindle sealing see P99.1 Coolant tubes 218.844.220 |
Zusätzliche CAD-Dateien finden Sie hier:

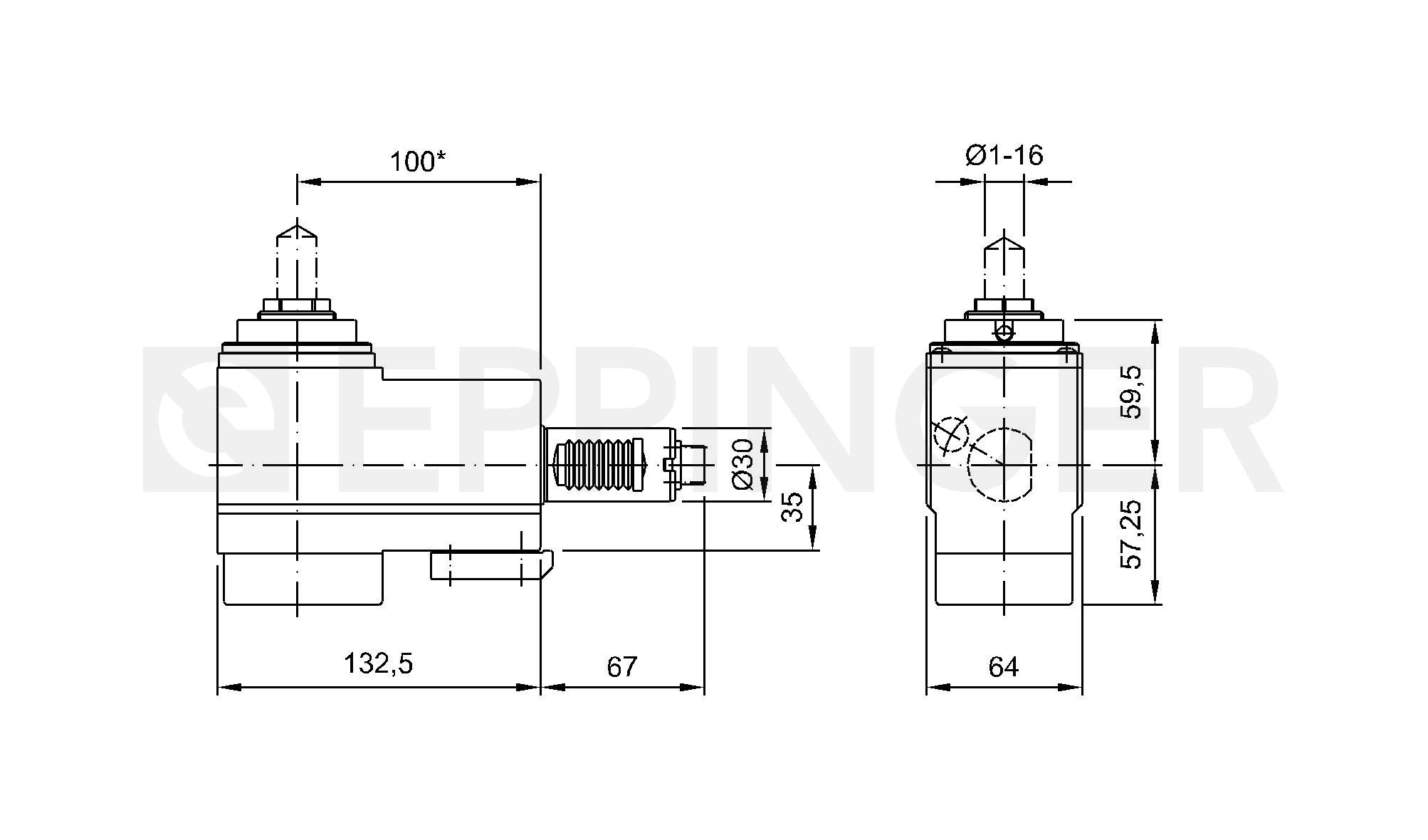

2D 视图
3D 视图
2D 视图
