详细视图
Drilling and milling head, straight collet chuck, ER32A, PRECI-FLEX®, CC external and central coolant supply
| 产品编号 | 7.073.364 |
| 适配 | 57 机型 |
| 翻译 | 1:1 |
| 输入转速 | max. 5000 1/min |
| 输出转速 | max. 5000 1/min |
| 输出扭矩 | max. 70 Nm |
| 旋转方向 |  |
| 交货期 | without wrench and collets |
| 附件 | Collets see Equipment for Toolholders Z2.1 Sealing washers see Equipment for Toolholders Z4.1 Wrench for spindle 0.002.277 PRECI-FLEX® Adapter Spindle cover see P99.1 Spindle sealing see P99.1 Coolant tubes 0.000.377 |
Zusätzliche CAD-Dateien finden Sie hier:

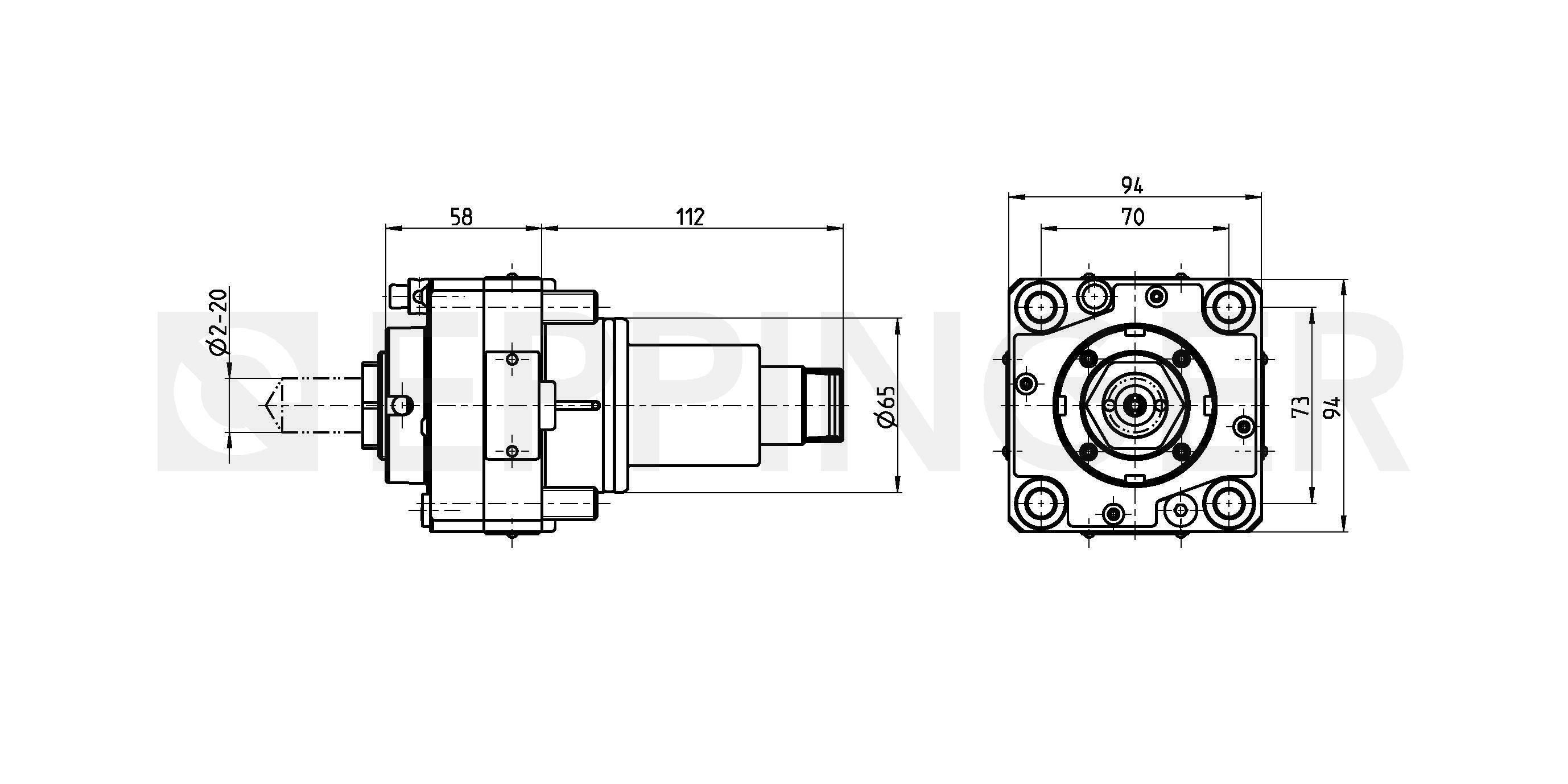

2D 视图

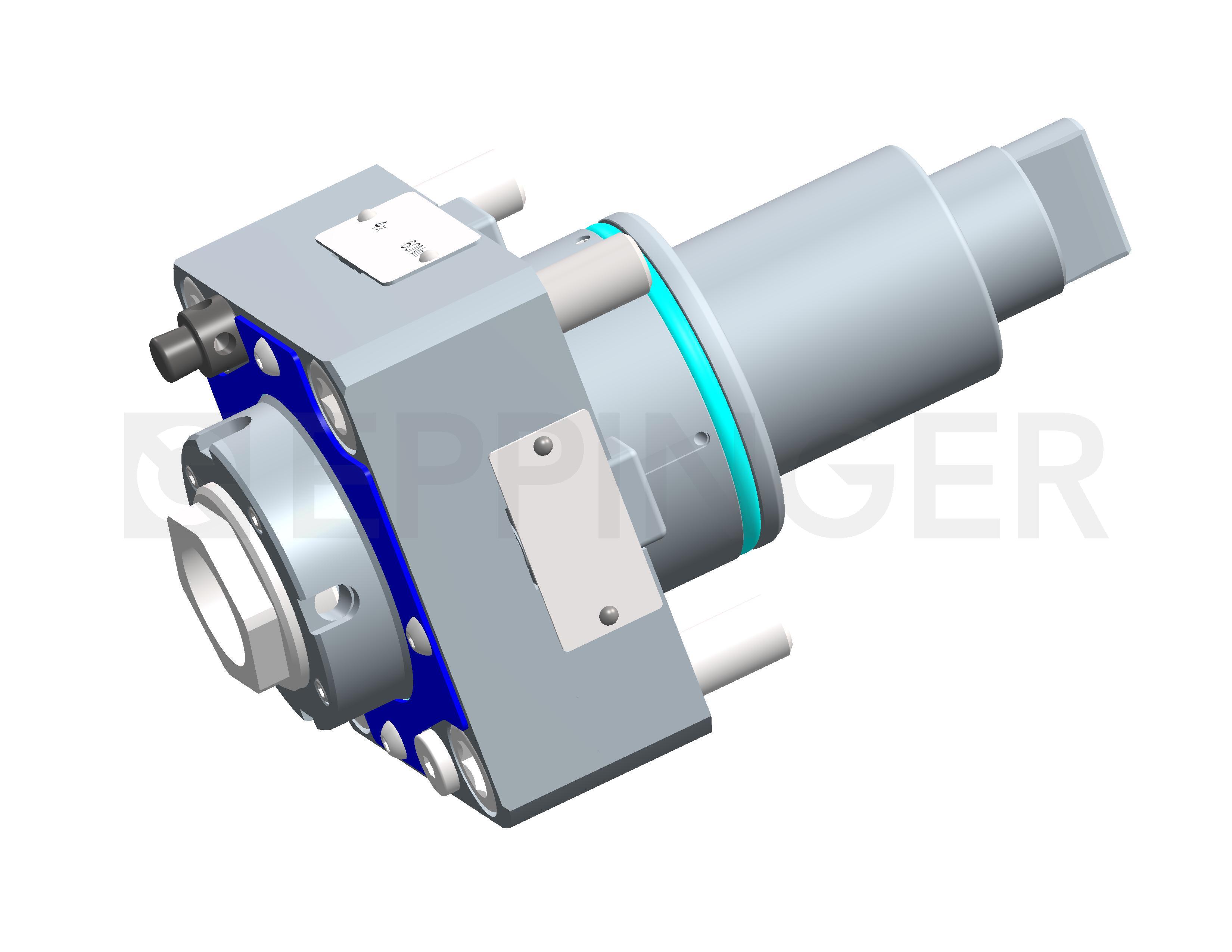

3D 视图
2D 视图
3D 视图 / 快速查询代码
