Drilling and milling head, angular, right hand collet chuck, ER40 , external and central coolant supply
| 产品编号 | 6.200.063 |
| 适配 | 4 机型 |
| 翻译 | 1:1 |
| 输入转速 | max. 4000 1/min |
| 输出转速 | max. 4000 1/min |
| 输出扭矩 | max. 100 Nm |
| 旋转方向 |  |
| 交货期 | supplied with wrench, excluding collets |
| 附件 | Collets see Equipment for Toolholders Z2.1 Sealing washers see Equipment for Toolholders Z4.1 Coolant tubes 218.469.220 |
Zusätzliche CAD-Dateien finden Sie hier:

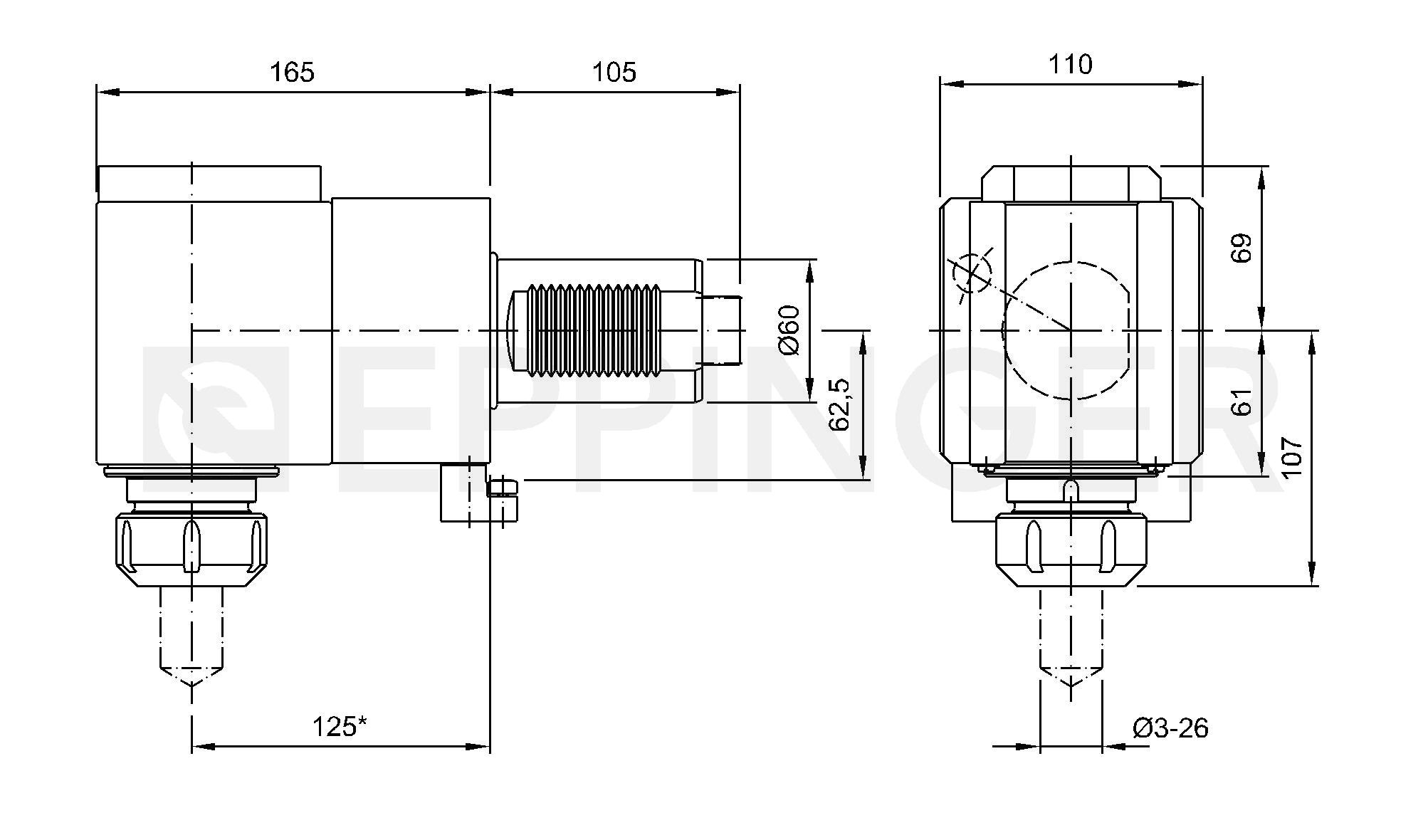

2D 视图
3D 视图
2D 视图
