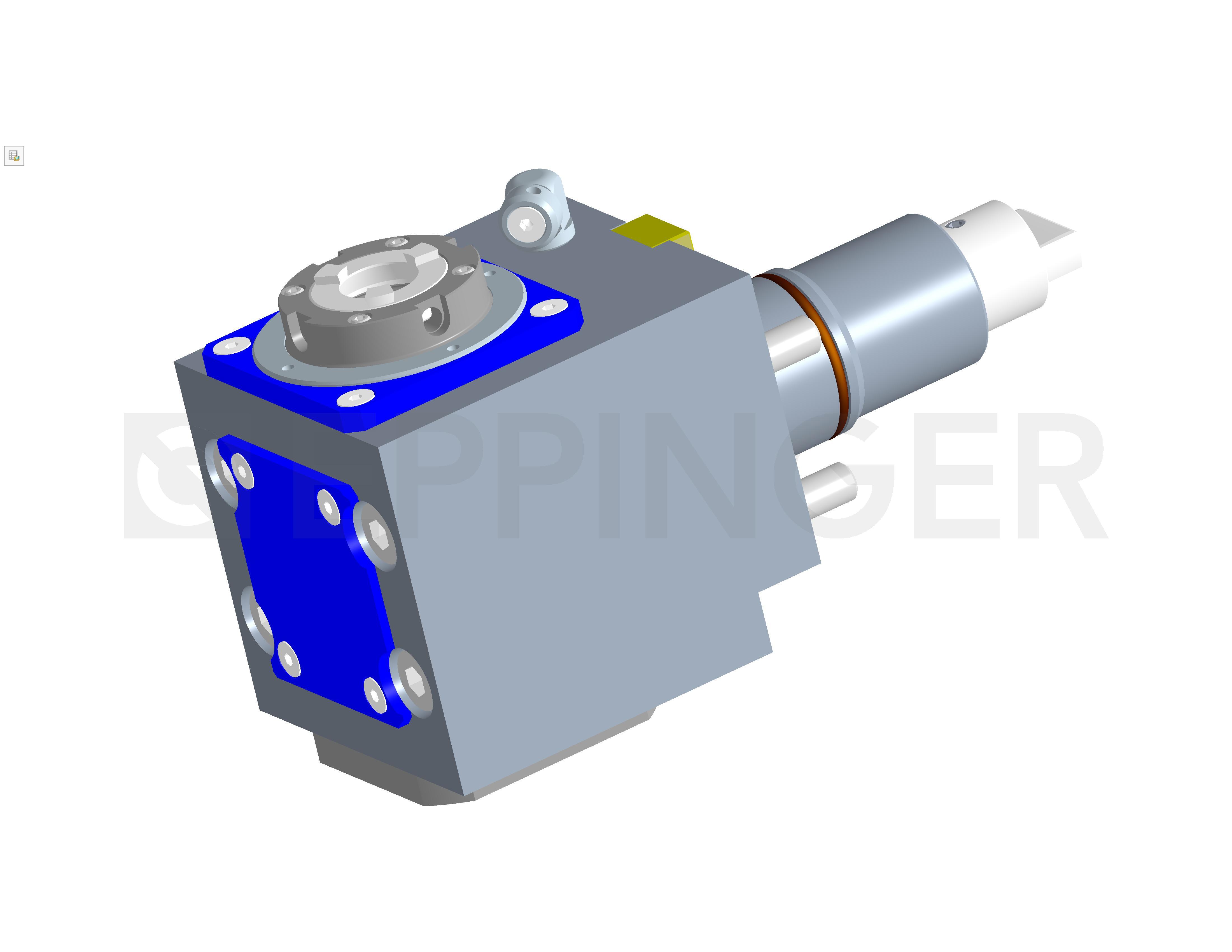

Drilling and milling head, angular, left hand - right hand collet chuck, ER20A, PRECI-FLEX®, CC external coolant supply
| 产品编号 | 1127331 |
| 适配 | Nakamura-Tome NT-FLEX |
| 翻译 | 1:1 |
| 输入转速 | max. 10000 1/min |
| 输出转速 | max. 10000 1/min |
| 输出扭矩 | max. 25 Nm |
| 旋转方向 |  |
| 交货期 | without wrench and collets * Actual size inscribed on the tool |
| 附件 | Collets see Equipment for Toolholders Z2. Wrench for spindle 0.002.325 PRECI-FLEX® Adapter Protection cover for spindle see P99.1 |
Zusätzliche CAD-Dateien finden Sie hier:

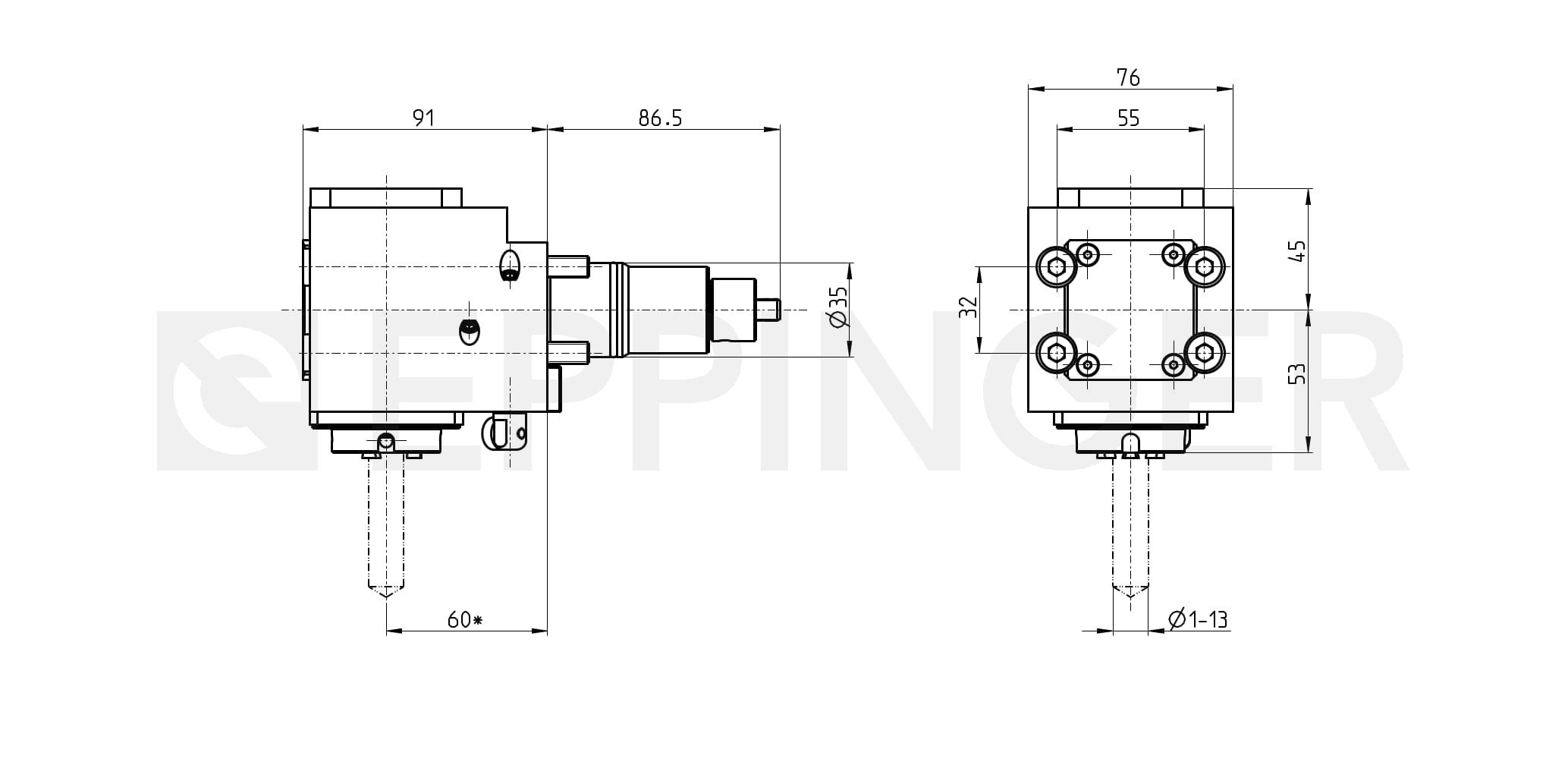

2D 视图
3D 视图
2D 视图
3D 视图 / 快速查询代码
