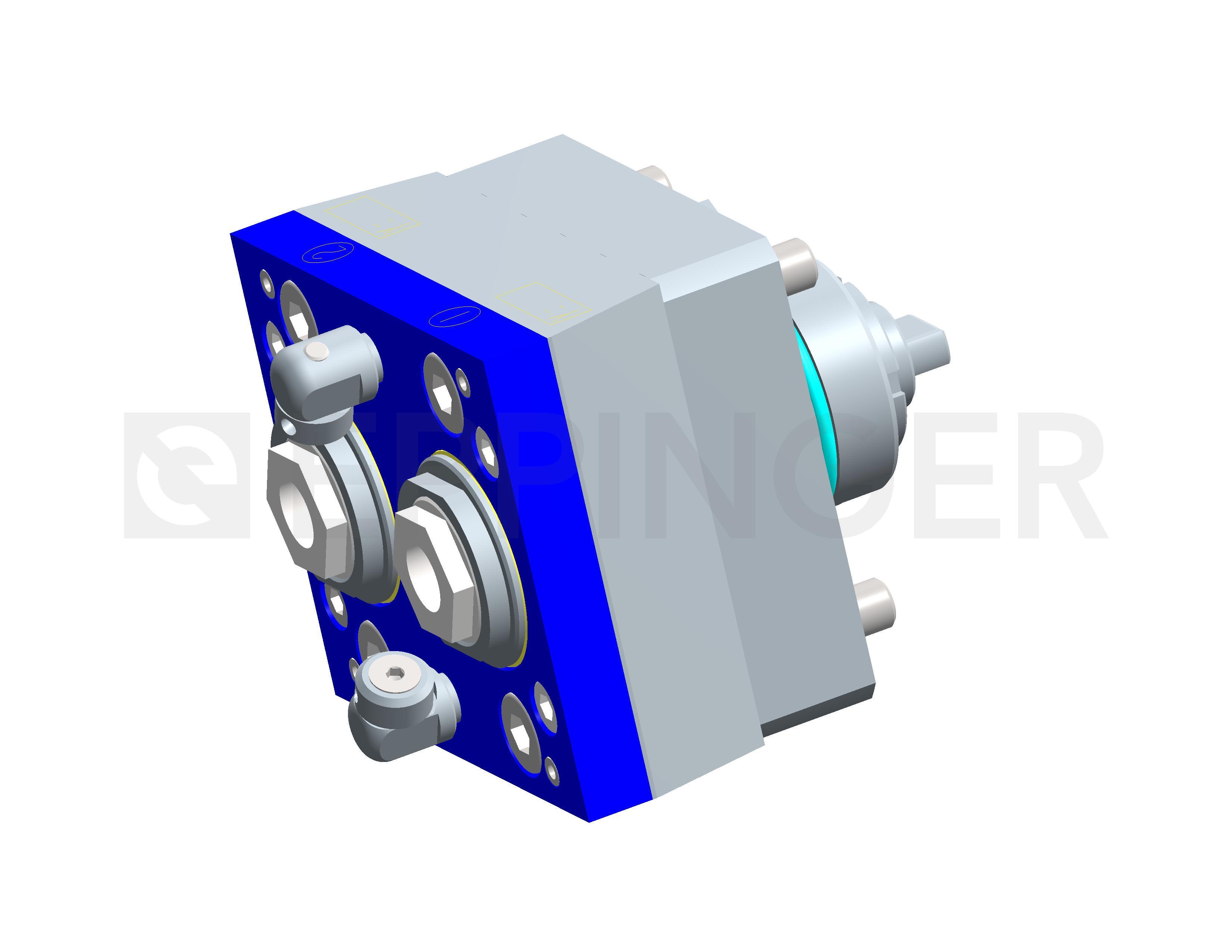

Drilling and milling head, straight, double collet chuck, ER16A external coolant supply

Part Number 7.172.422
for 2 Machines
Ratio1:1
rpm at Inputmax. 6000 rpm
rpm at Outputmax. 6000 rpm
Torque at Outputmax. 20 Nm
Direction of Rotation
Scope of Deliverywithout wrench and collets
AccessoriesCollets see Equipment for Toolholders Z2.1
Cover for internal coolant 1088334
Additional CAD Files:

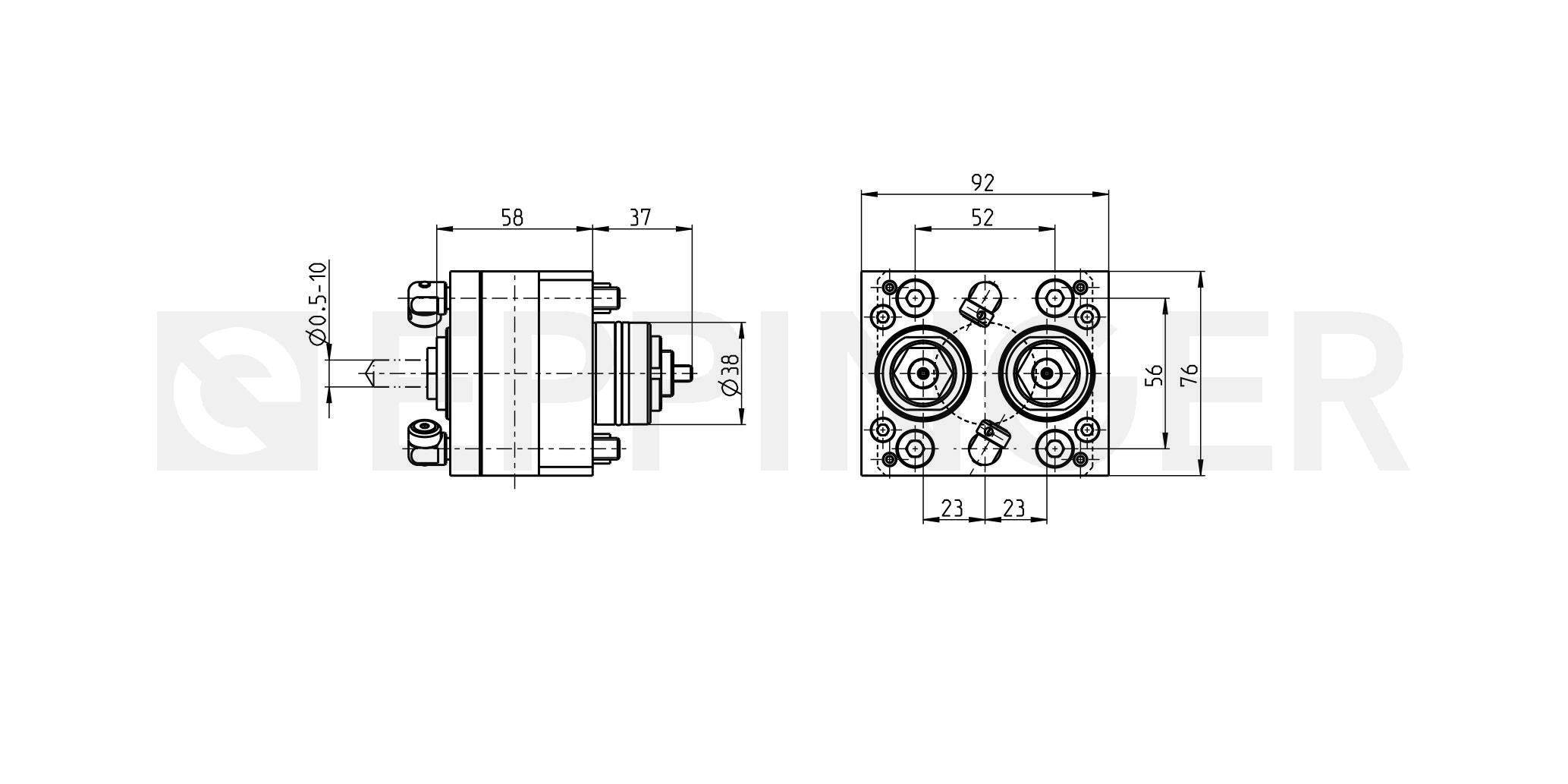

2D-View
3D-View
2D-View
3D-View / QR-Code

Upload to Smart Phone
