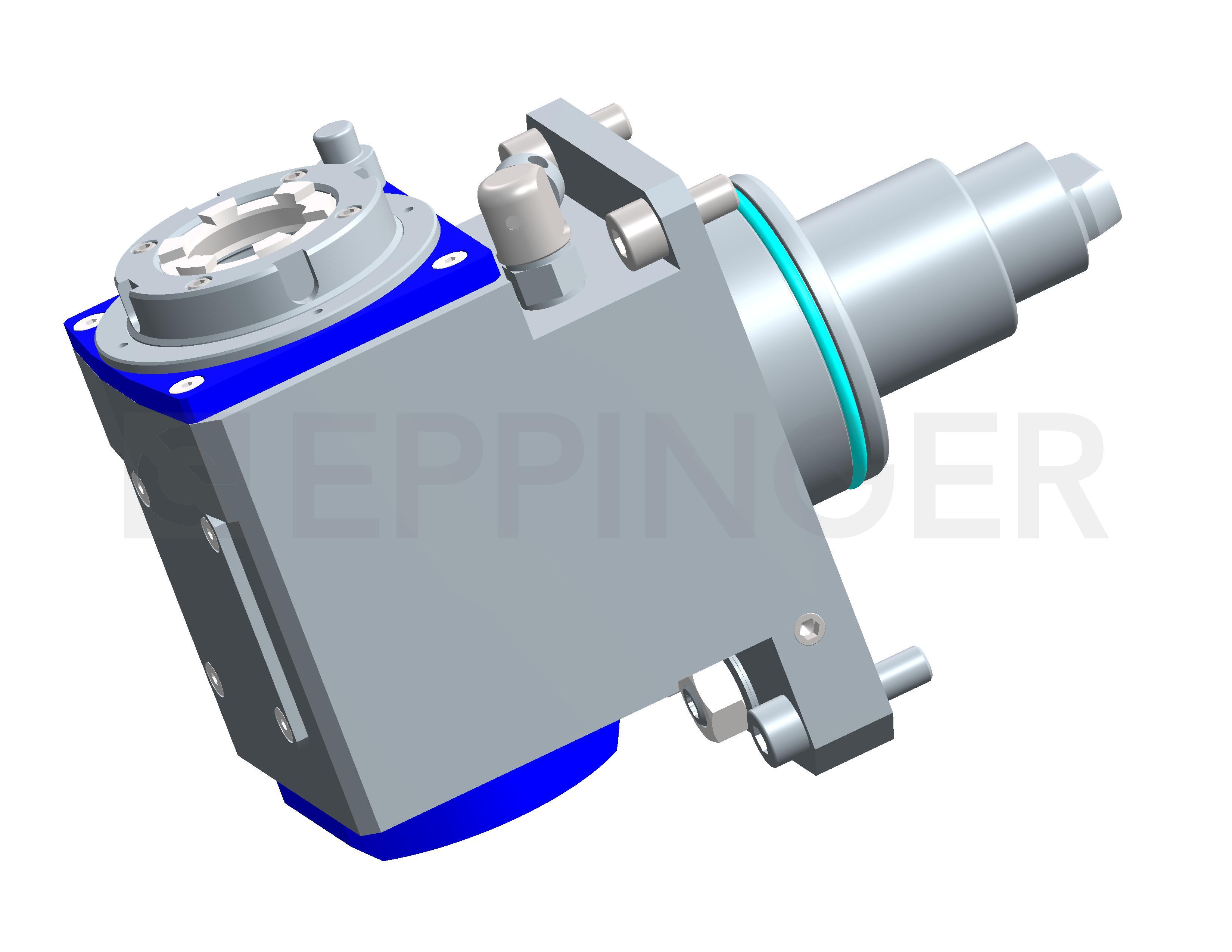

Drilling and milling head, angular, right hand adjustable alignment pin collet chuck, ER32A, PRECI-FLEX®, CC external coolant supply
| Part Number | 7.079.136 |
| for | Mazak QT(C) (U) 200M (A,S,SY,Y) 12 [Bolt On] / QTS 200/250 M 12000 |
| Ratio | 1:1 |
| rpm at Input | max. 12000 rpm |
| rpm at Output | max. 12000 rpm |
| Torque at Output | max. 70 Nm |
| Direction of Rotation |  |
| Scope of Delivery | without wrench and collets * Actual size inscribed on the tool |
| Accessories | Collets see Equipment for Toolholders Z2.1 Wrench for spindle 0.002.277, 15672 PRECI-FLEX® Adapter Spindle cover see P99.1 |
Additional CAD Files:

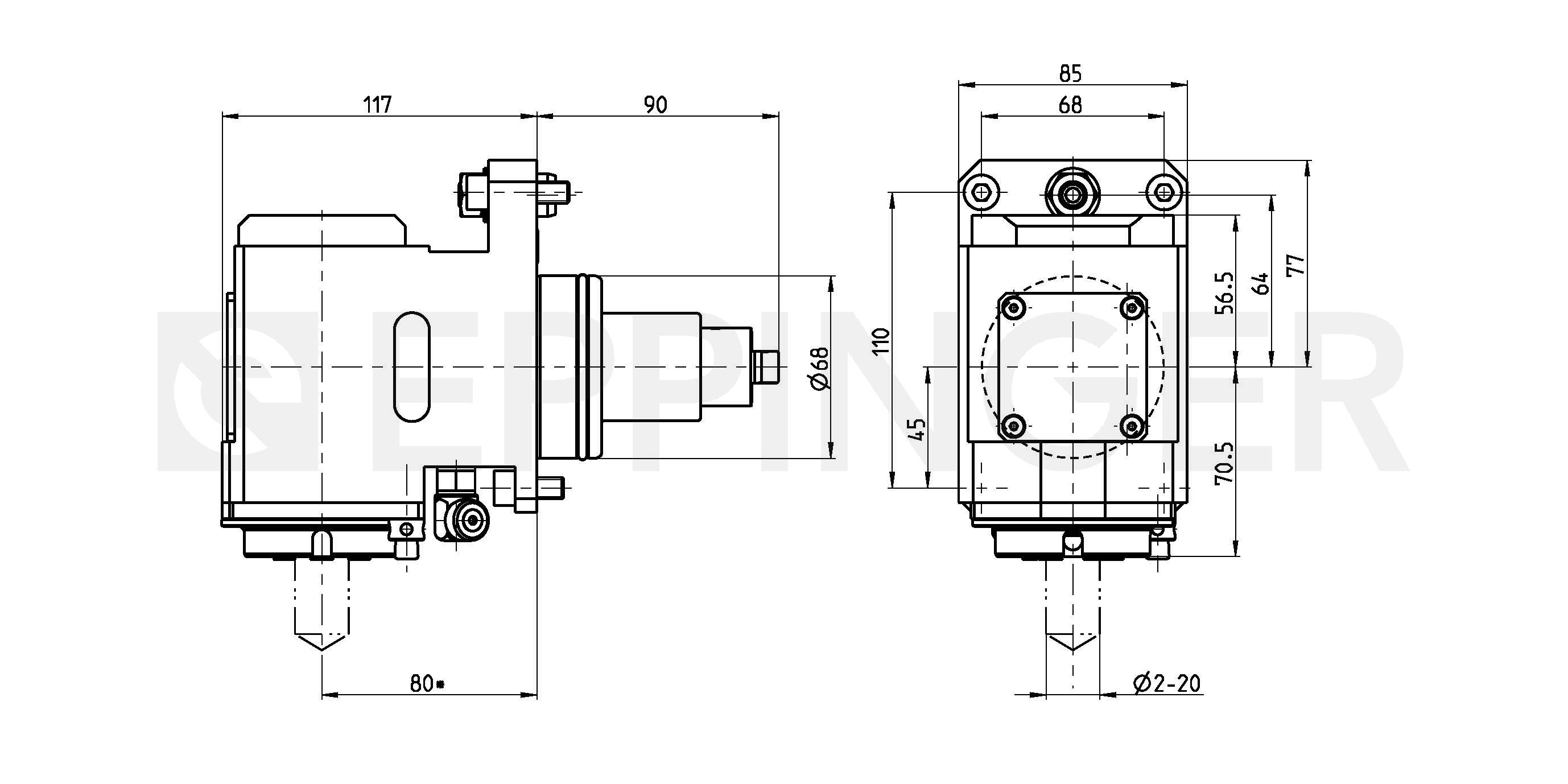

2D-View
3D-View
2D-View
3D-View / QR-Code
