Detailed View

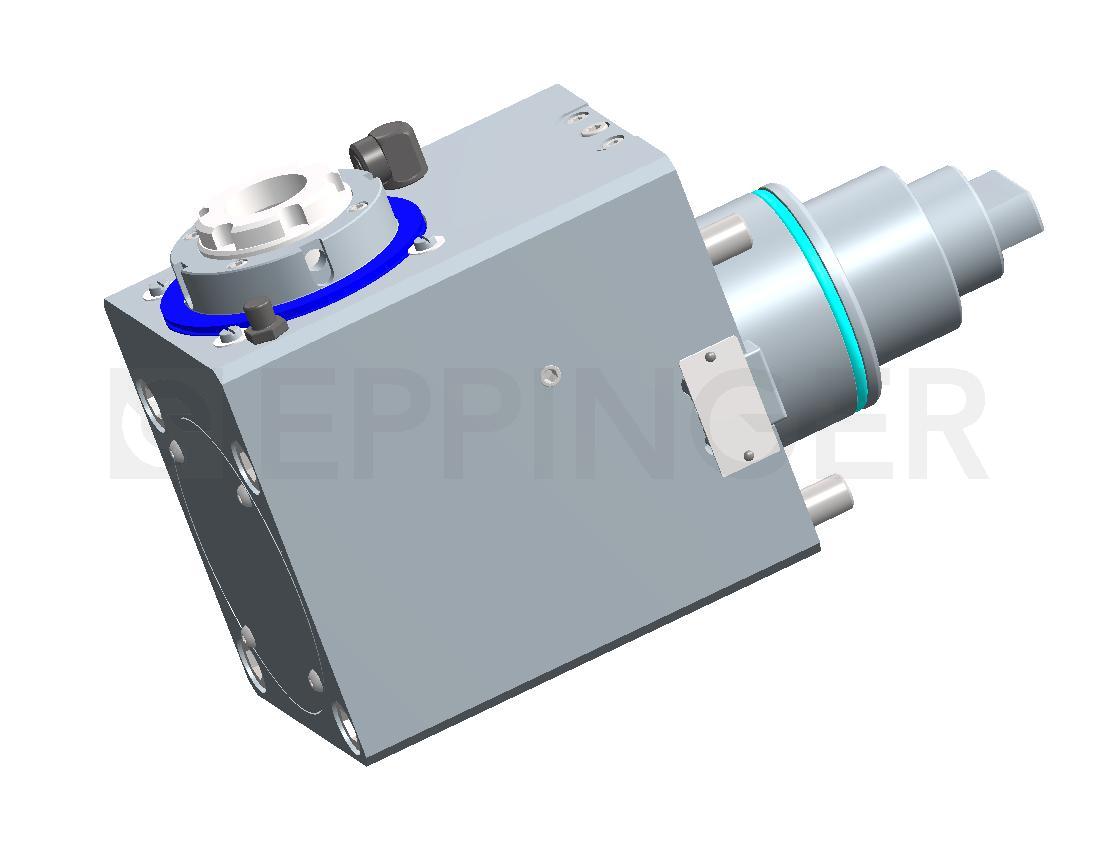

Drilling and milling head, angular, left hand collet chuck, ER40A, PRECI-FLEX®, CC external coolant supply
| Part Number | 7.076.850 |
| for | 26 Machines |
| Ratio | 1:1 |
| rpm at Input | max. 3000 rpm |
| rpm at Output | max. 3000 rpm |
| Torque at Output | max. 100 Nm |
| Direction of Rotation |  |
| Scope of Delivery | without wrench and collets * Actual size inscribed on the tool |
| Accessories | Collets see Equipment for Toolholders Z2.1 Sealing washers see Equipment for Toolholders Z4.1 Wrench 0.002.277 , 10006 PRECI-FLEX® Adapter Spindle cover see P99.1 |
Additional CAD Files:

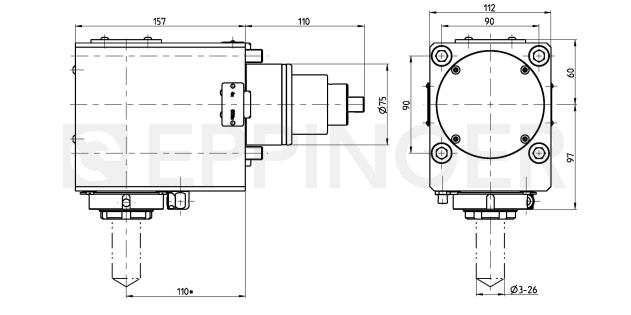

2D-View
3D-View

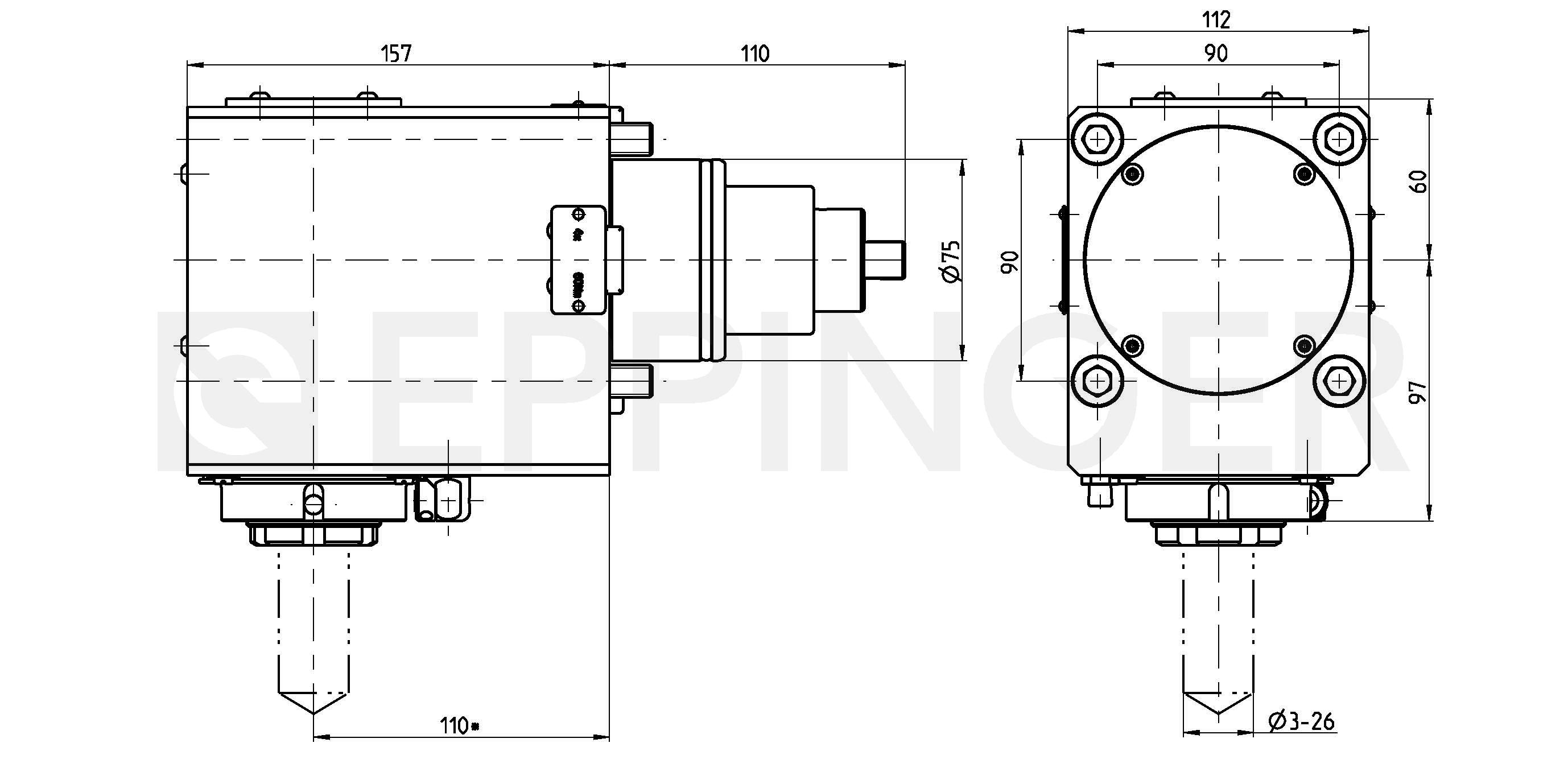

2D-View
3D-View / QR-Code
