Drilling and milling head, angular, double sided collet chuck, ER32A, PRECI-FLEX®, CC, external coolant supply

Part Number 7.076.560
for Miyano ABX-51/64 SYY/THY
Ratio1:1
rpm at Inputmax. 6000 rpm
rpm at Outputmax. 6000 rpm
Torque at Outputmax. 70 Nm
Direction of Rotation
Scope of Deliverywithout wrench and collets * Actual size inscribed on the tool
AccessoriesCollets see Equipment for Toolholders Z2. Wrench for spindle 0.002.277 PRECI-FLEX® Adapter Spindle cover see P99.1
Additional CAD Files:

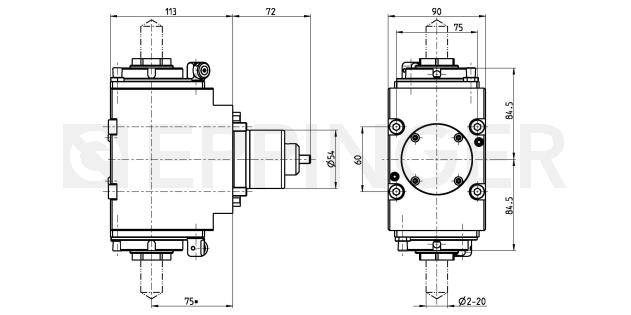

2D-View

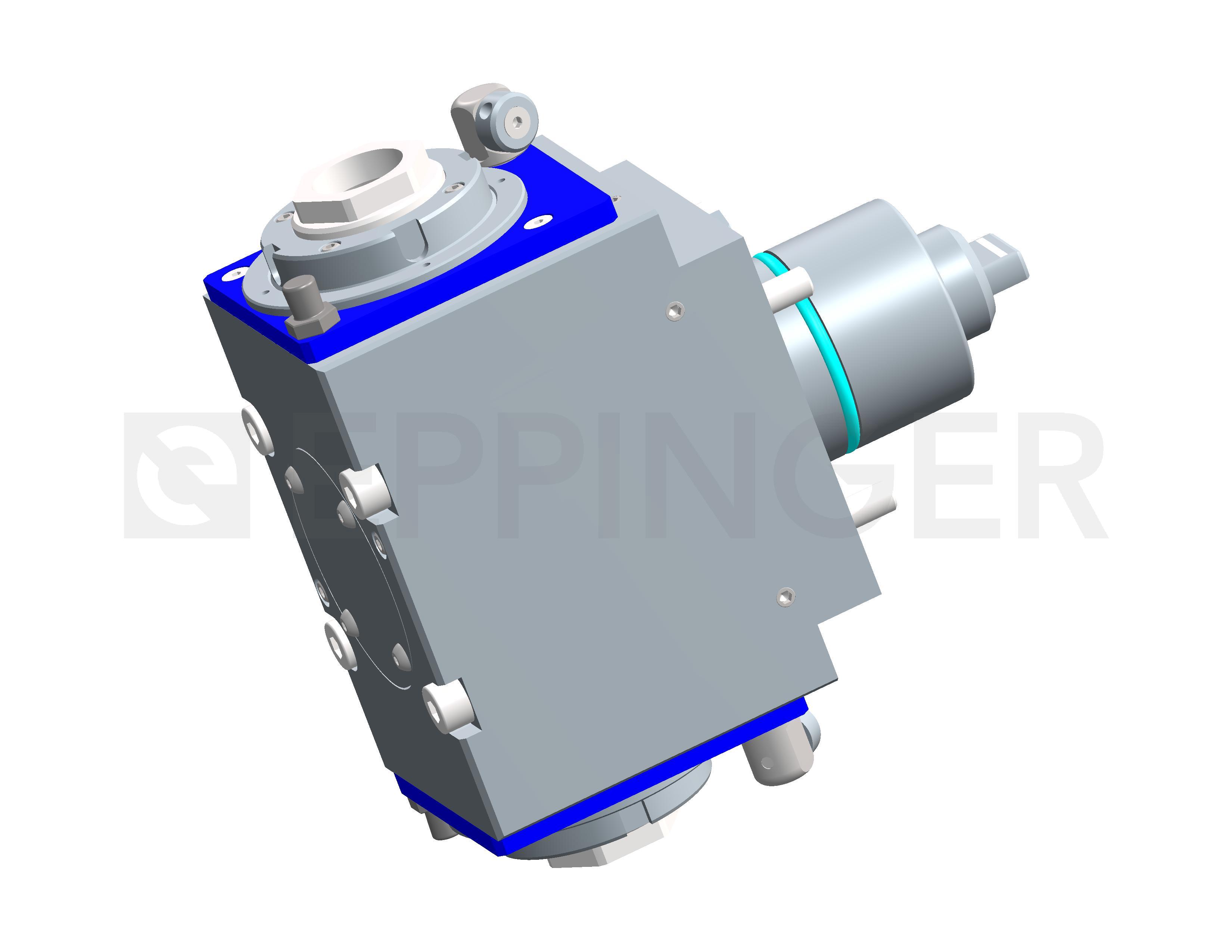

3D-View

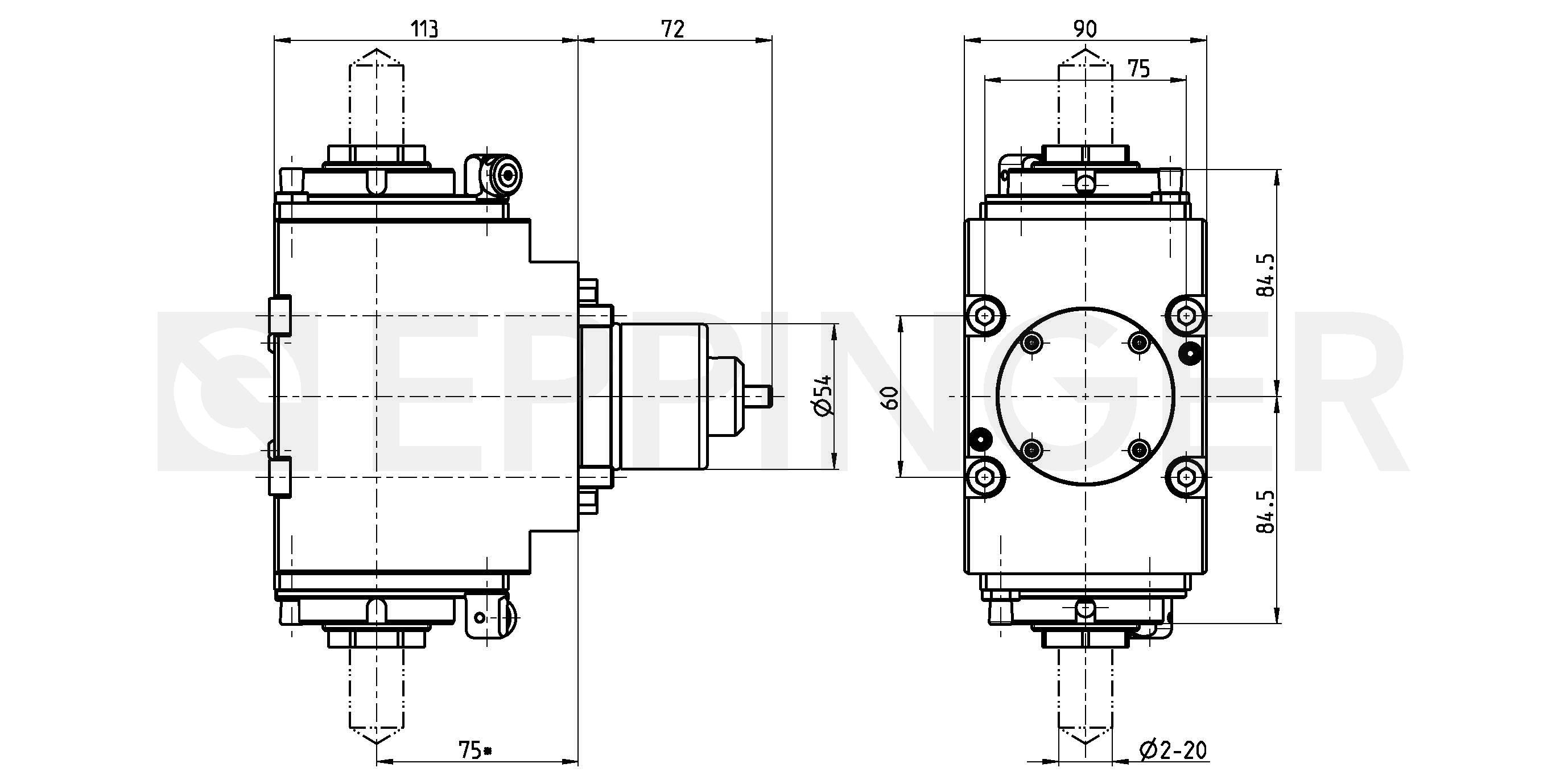

2D-View
3D-View / QR-Code

Upload to Smart Phone
