Drilling and milling head, angular, left hand - right hand collet chuck, ER20A, PRECI-FLEX® external and central coolant supply

Part Number 7.075.208
for 3 Machines
Ratio1:1
rpm at Inputmax. 6000 rpm
rpm at Outputmax. 6000 rpm
Torque at Outputmax. 25 Nm
Direction of Rotation
Scope of Deliverywithout wrench and collets * Actual size inscribed on the tool
AccessoriesCollets see Equipment for Toolholders Z2.1
Sealing washers see Equipment for Toolholders Z4.1
Wrench for spindle 0.002.325
PRECI-FLEX® Adapter
Spindle cover see P99.1
Spindle sealing see P99.1
Coolant tubes 0.000.377
Additional CAD Files:

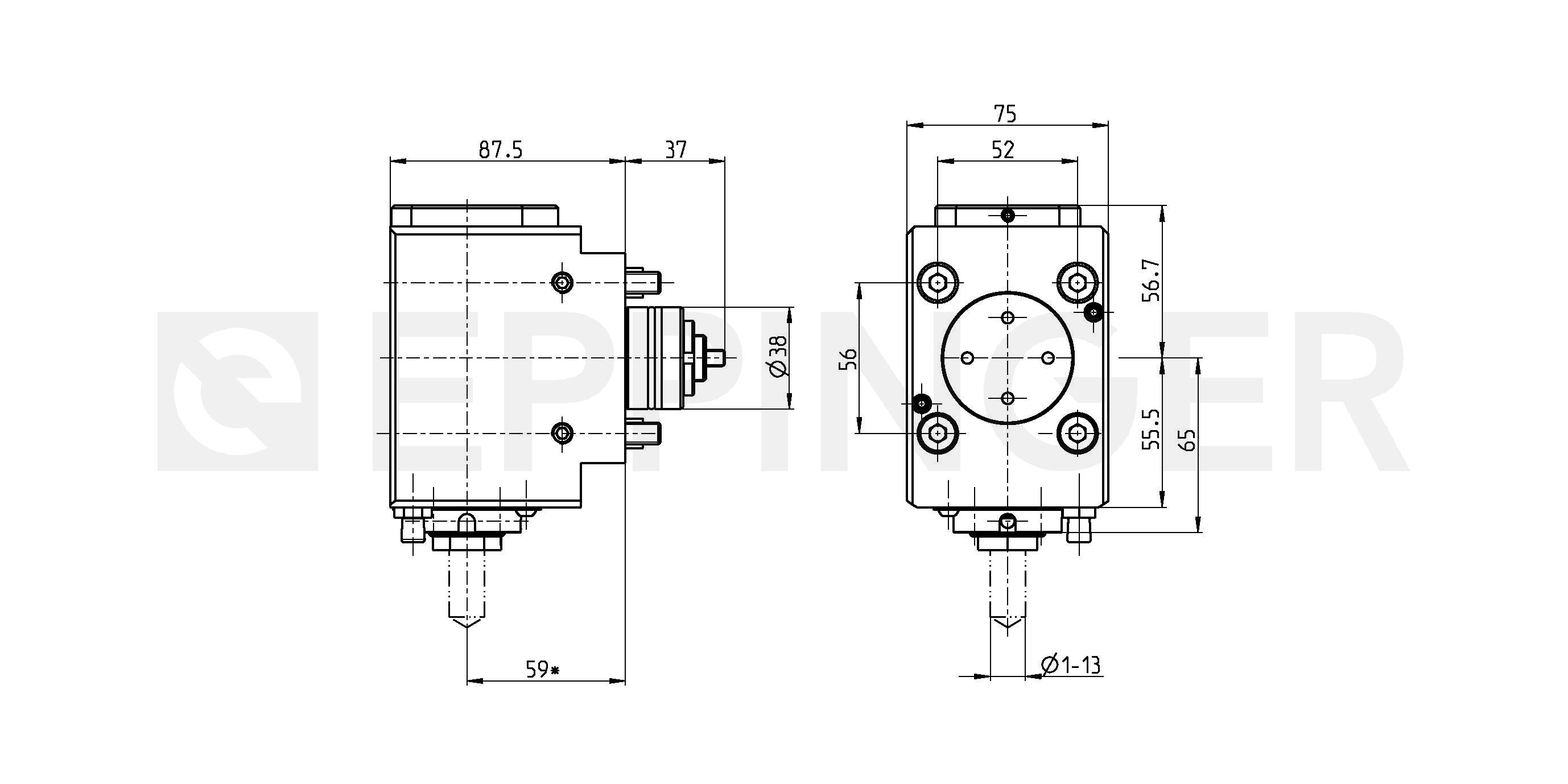

2D-View

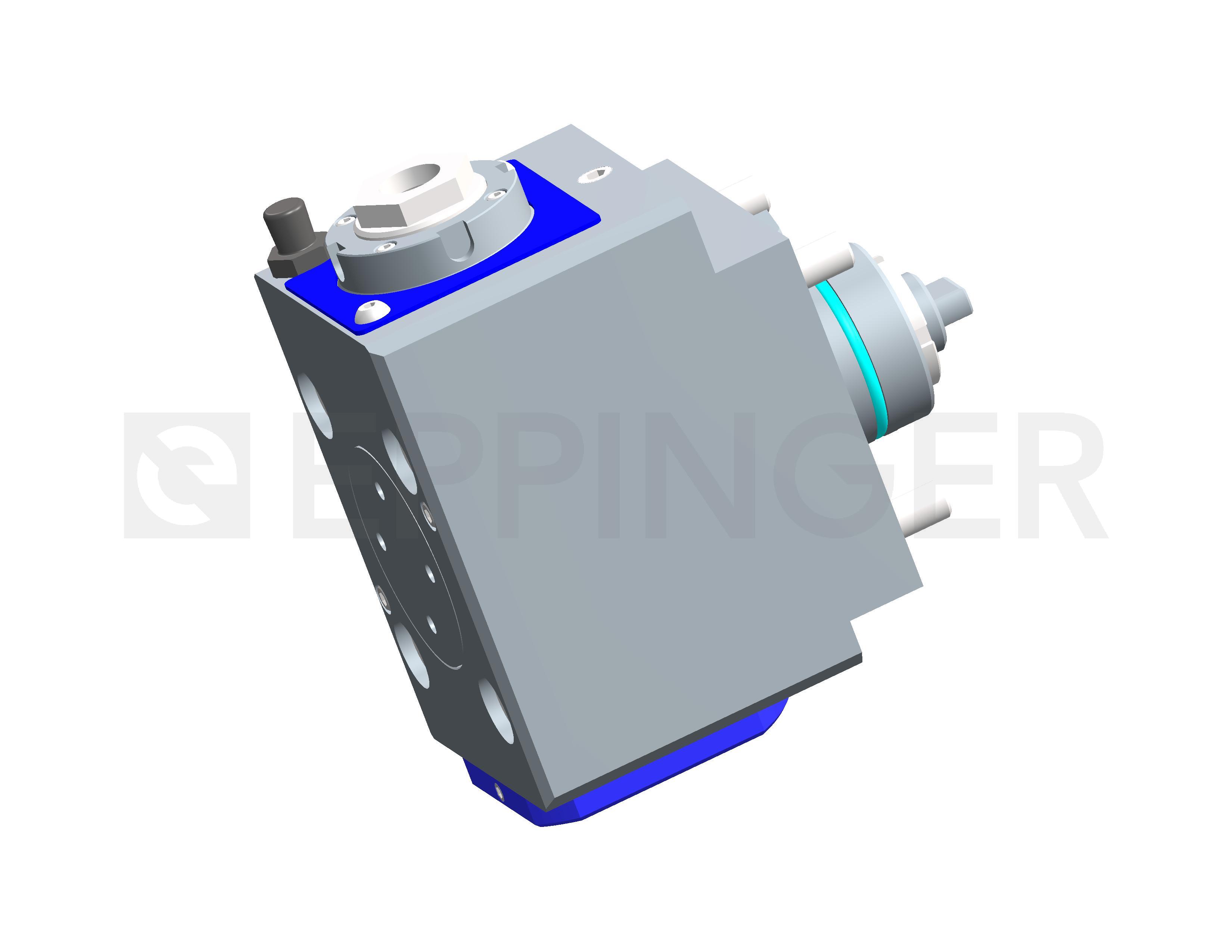

3D-View
2D-View
3D-View / QR-Code

Upload to Smart Phone
