Drilling and milling head, straight collet chuck, ER20A, PRECI-FLEX® external and central coolant supply

Part Number 7.075.245
for 3 Machines
Ratio1:1
rpm at Inputmax. 6000 rpm
rpm at Outputmax. 6000 rpm
Torque at Outputmax. 25 Nm
Direction of Rotation
Scope of Deliverysupplied with wrench, excluding collets
AccessoriesCollets see Equipment for Toolholders Z2.1
Sealing washers see Equipment for Toolholders Z4.1
Wrench for spindle 0.002.325
PRECI-FLEX® Adapter
Spindle cover see P99.1
Spindle sealing see P99.1
Coolant tubes 0.000.377
Additional CAD Files:

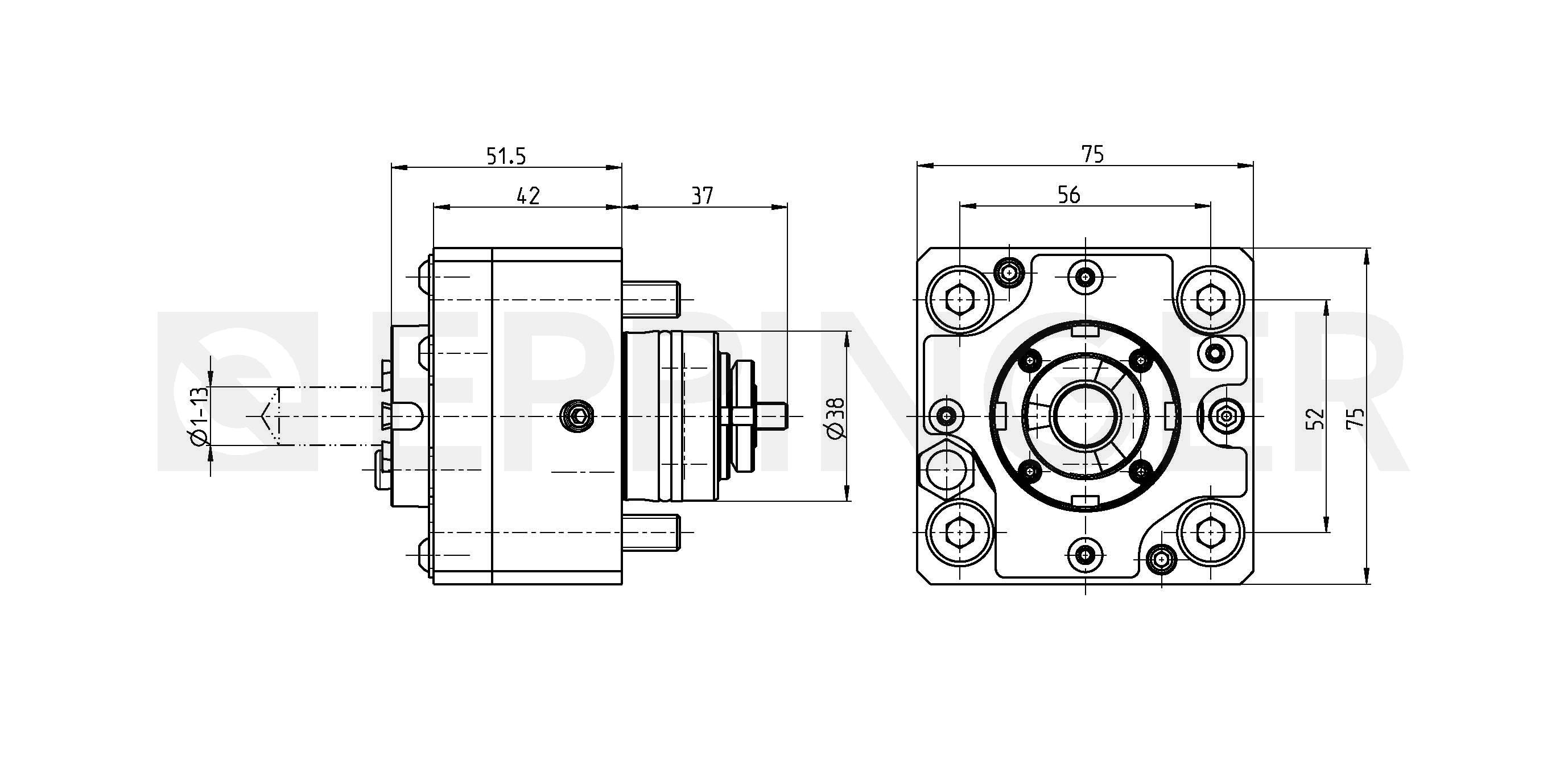

2D-View

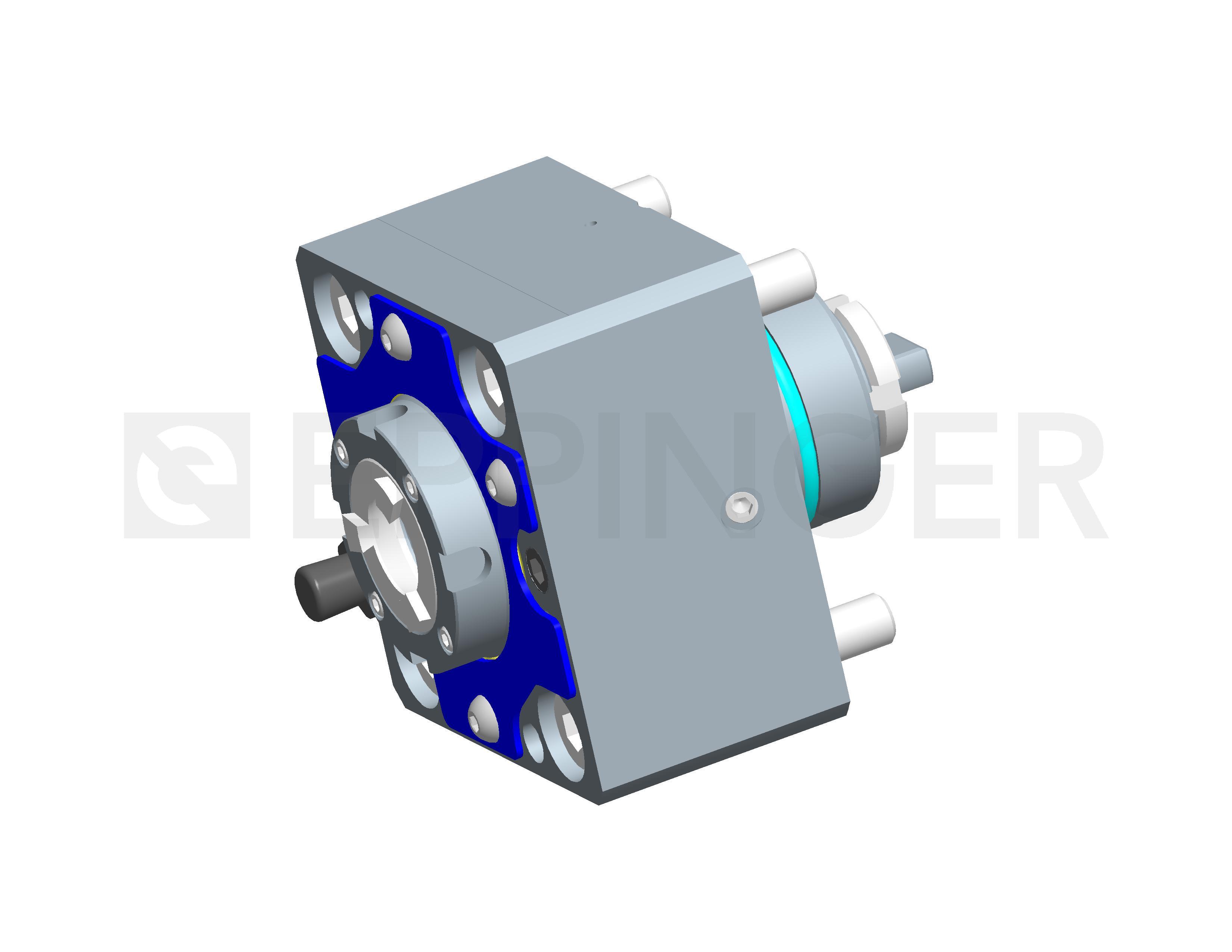

3D-View
2D-View
3D-View / QR-Code

Upload to Smart Phone
