Detailed View
Drilling and milling head, angular, right hand adjustable alignment pin collet chuck, ER32A, PRECI-FLEX®, external coolant supply
| Part Number | 7.075.230 |
| for | 2 Machines |
| Ratio | 1:1 |
| rpm at Input | max. 6000 rpm |
| rpm at Output | max. 6000 rpm |
| Torque at Output | max. 70 Nm |
| Direction of Rotation |  |
| Scope of Delivery | supplied with wrench, excluding collets * Actual size inscribed on the tool |
| Accessories | Collets see Equipment for Toolholders Z2.1 PRECI-FLEX® Adapter Spindle cover see P99.1 |
Additional CAD Files:

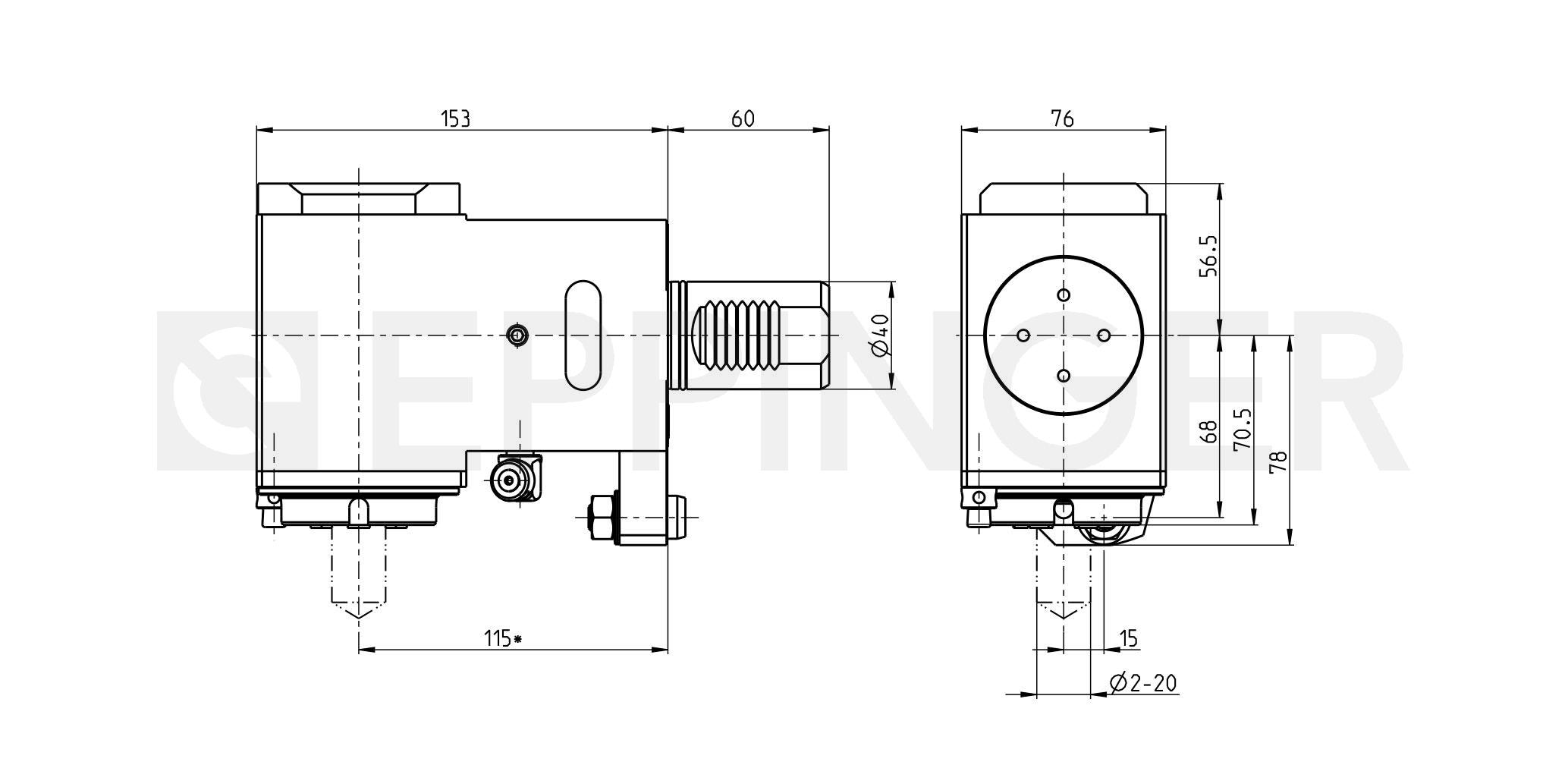

2D-View

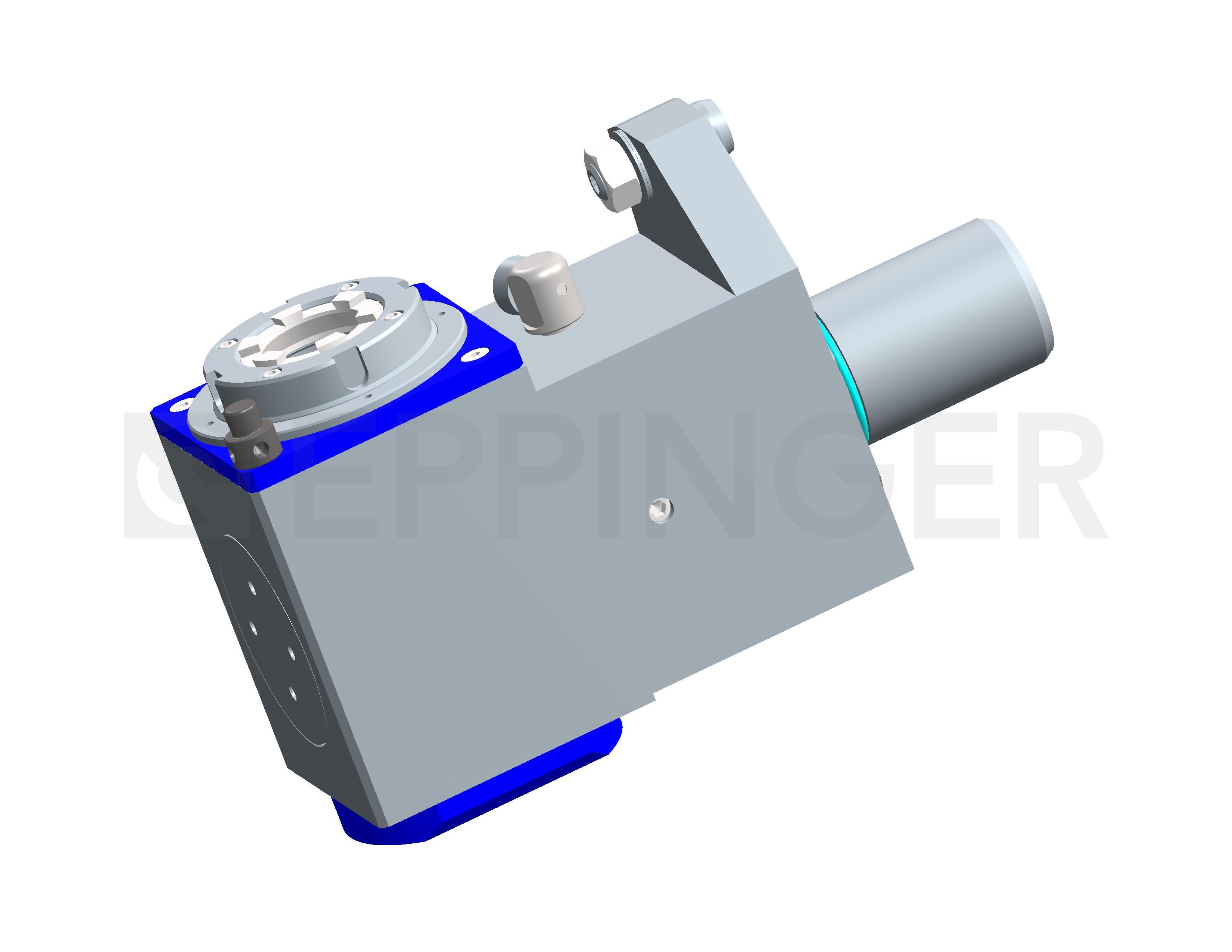

3D-View
2D-View
3D-View / QR-Code
