Device for gear milling chuck for cutter arbor Ø8, angle adjustable ±20°
| Part Number | 7.074.050 |
| for | 2 Machines |
| Ratio | 2:1 |
| rpm at Input | max. 6000 rpm |
| rpm at Output | max. 3000 rpm |
| Torque at Output | max. 40 Nm |
| Direction of Rotation |  |
| Scope of Delivery | supplied with cutter spacer 7.072.774 Important ! two disk stations are required |
Additional CAD Files:

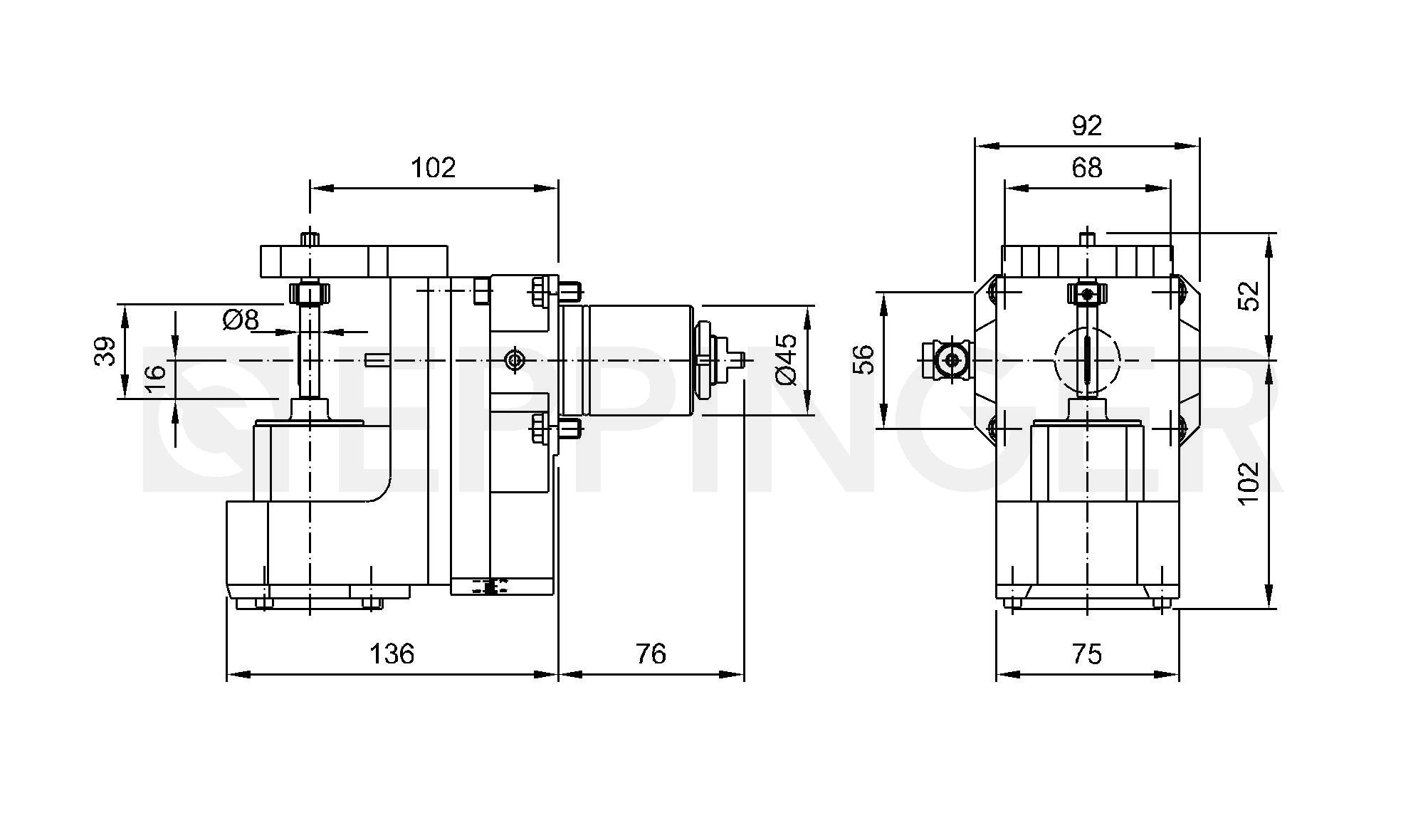

2D-View

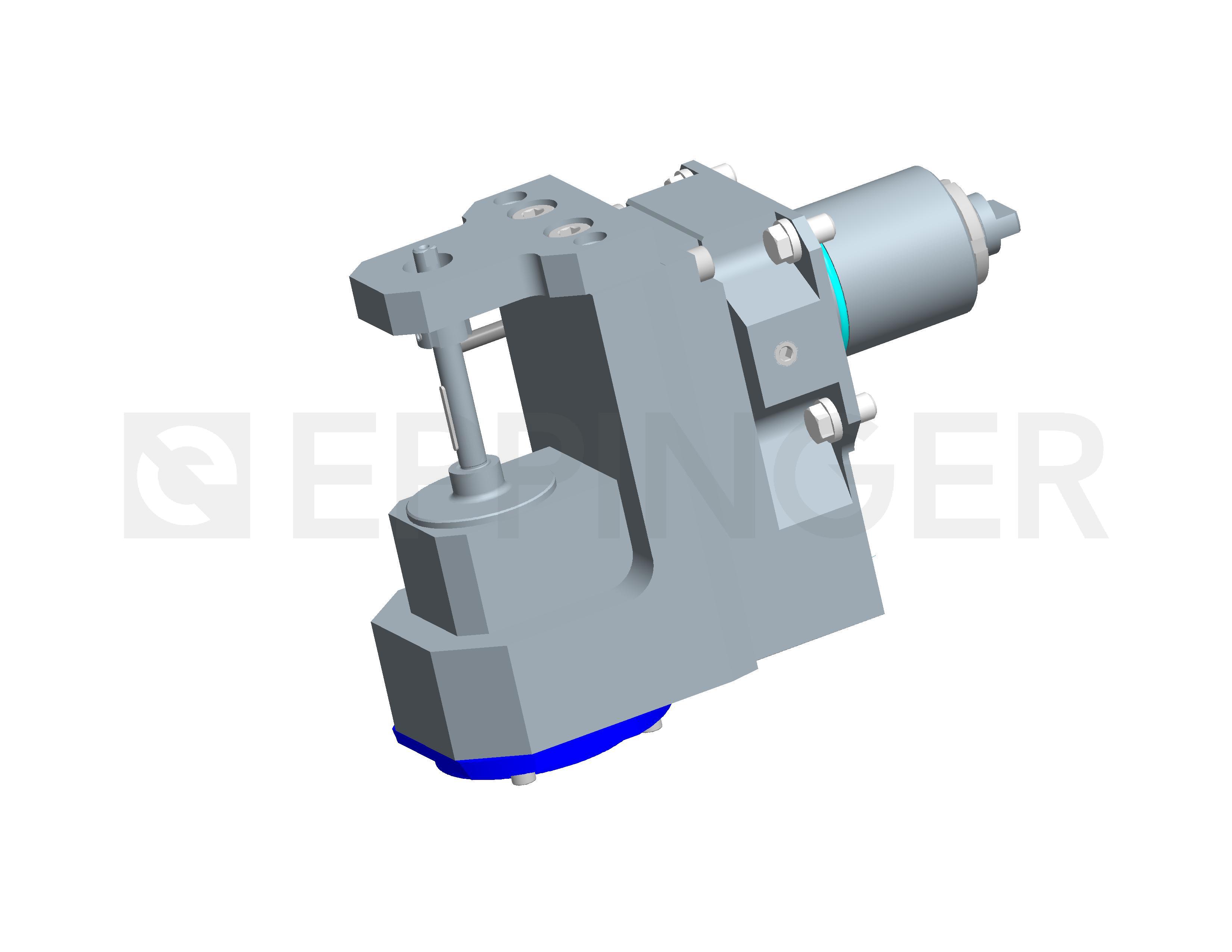

3D-View
2D-View
3D-View / QR-Code
