Detailed View
Drilling and milling head, angular, left hand, short collet chuck, ER40, external and central coolant supply
| Part Number | 9.820.191 |
| for | Okuma LB35II-M (bis Baujahr 05/2001) |
| Ratio | 1:1 |
| rpm at Input | max. 4000 rpm |
| rpm at Output | max. 4000 rpm |
| Torque at Output | max. 100 Nm |
| Direction of Rotation |  |
| Scope of Delivery | supplied with wrench, excluding collets * Actual size inscribed on the tool |
| Accessories | Collets see Equipment for Toolholders Z2.1 Sealing washers see Equipment for Toolholders Z4.1 Coolant tubes 218.445.220 |
Additional CAD Files:

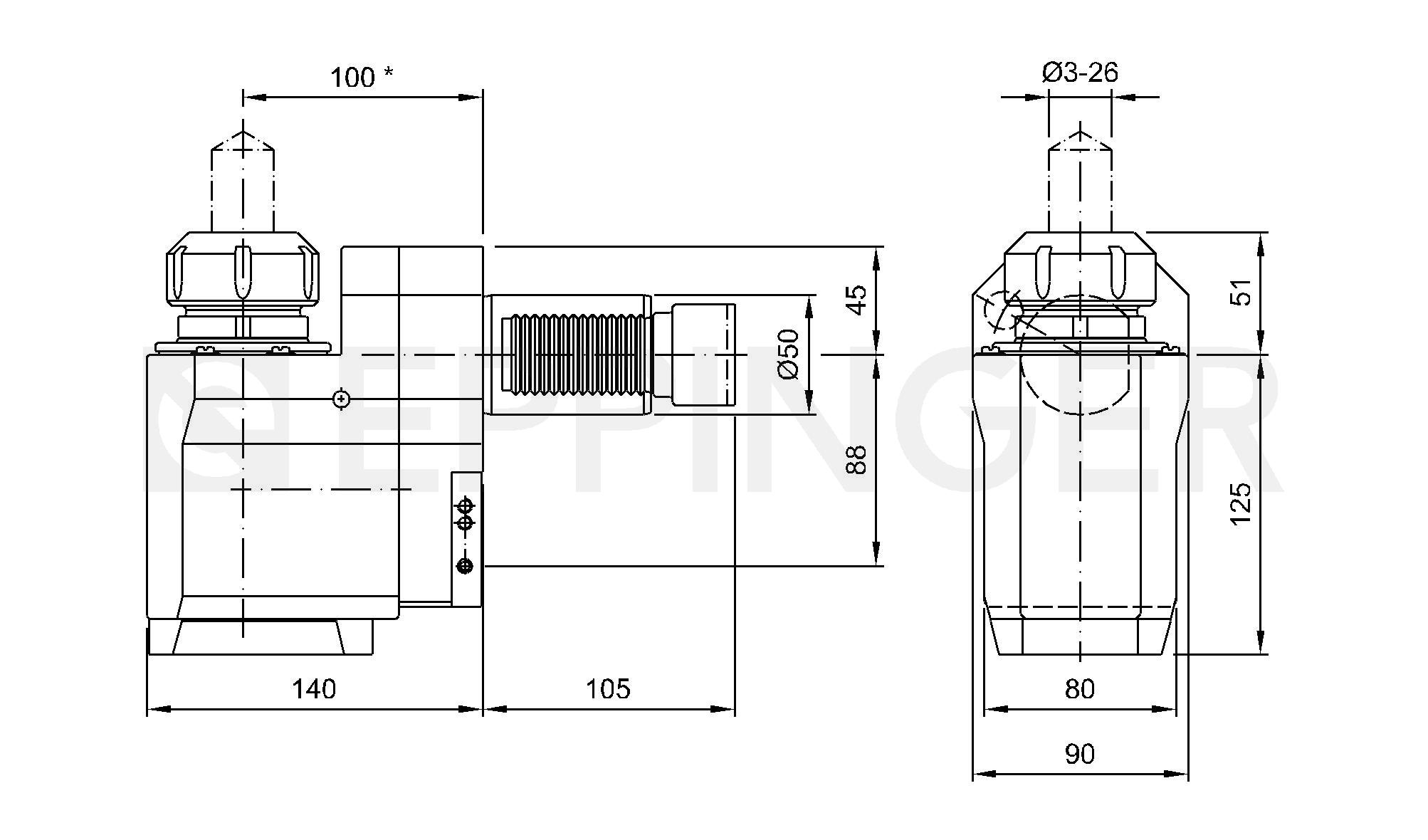

2D-View
3D-View
2D-View
