Detailed View

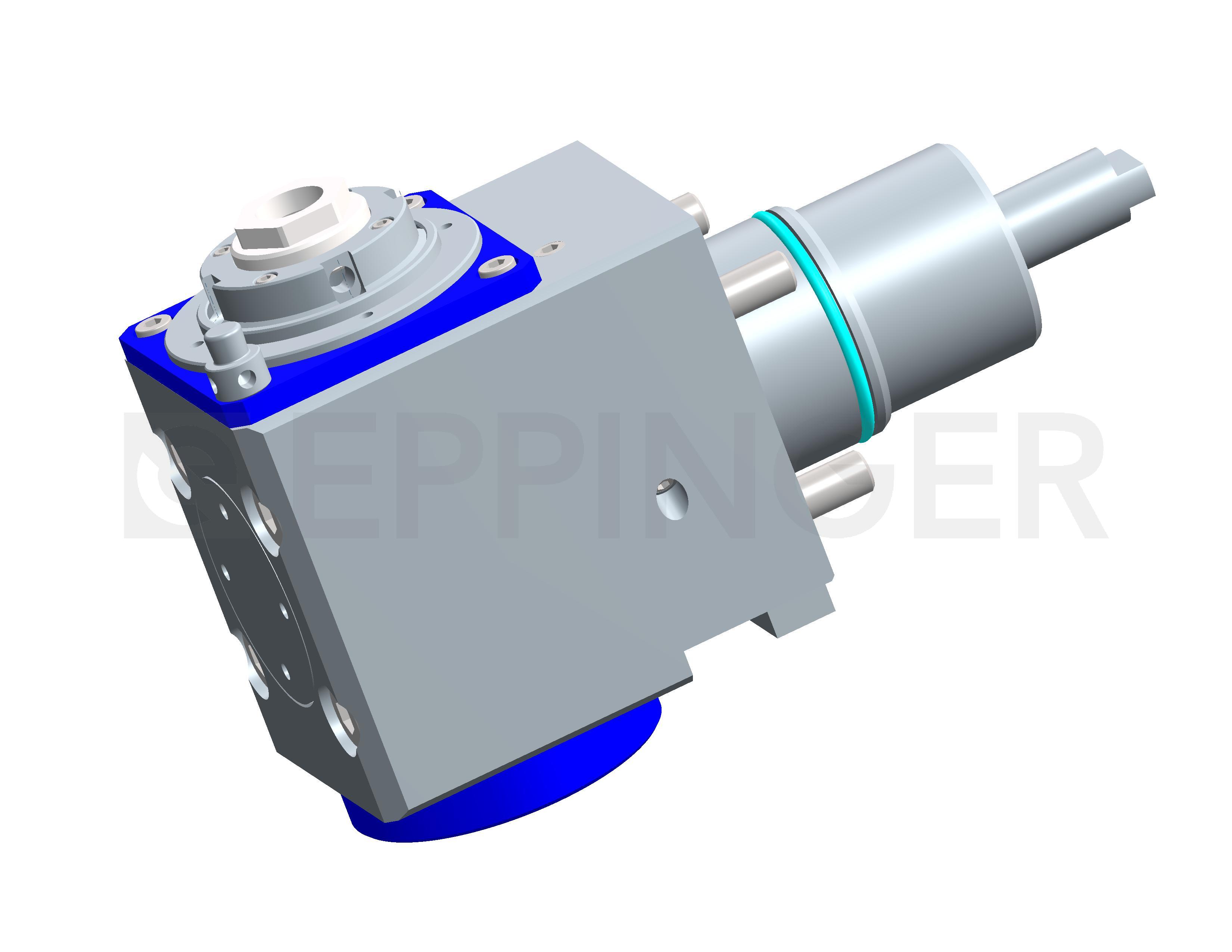

Drilling and milling head, angular, left hand - right hand collet chuck, ER25A, PRECI-FLEX® external and central coolant supply
| Part Number | 7.071.907 |
| for | 6 Machines |
| Ratio | 1:1 |
| rpm at Input | max. 6000 rpm |
| rpm at Output | max. 6000 rpm |
| Torque at Output | max. 40 Nm |
| Direction of Rotation |  |
| Scope of Delivery | without wrench and collets * Actual size inscribed on the tool |
| Accessories | Collets see Equipment for Toolholders Z2.1 Sealing washers see Equipment for Toolholders Z4.1 Wrench for spindle 0.002.277 PRECI-FLEX® Adapter Spindle cover see P99.1 Spindle sealing see P99.1 Coolant tubes 218.844.220 |
Additional CAD Files:

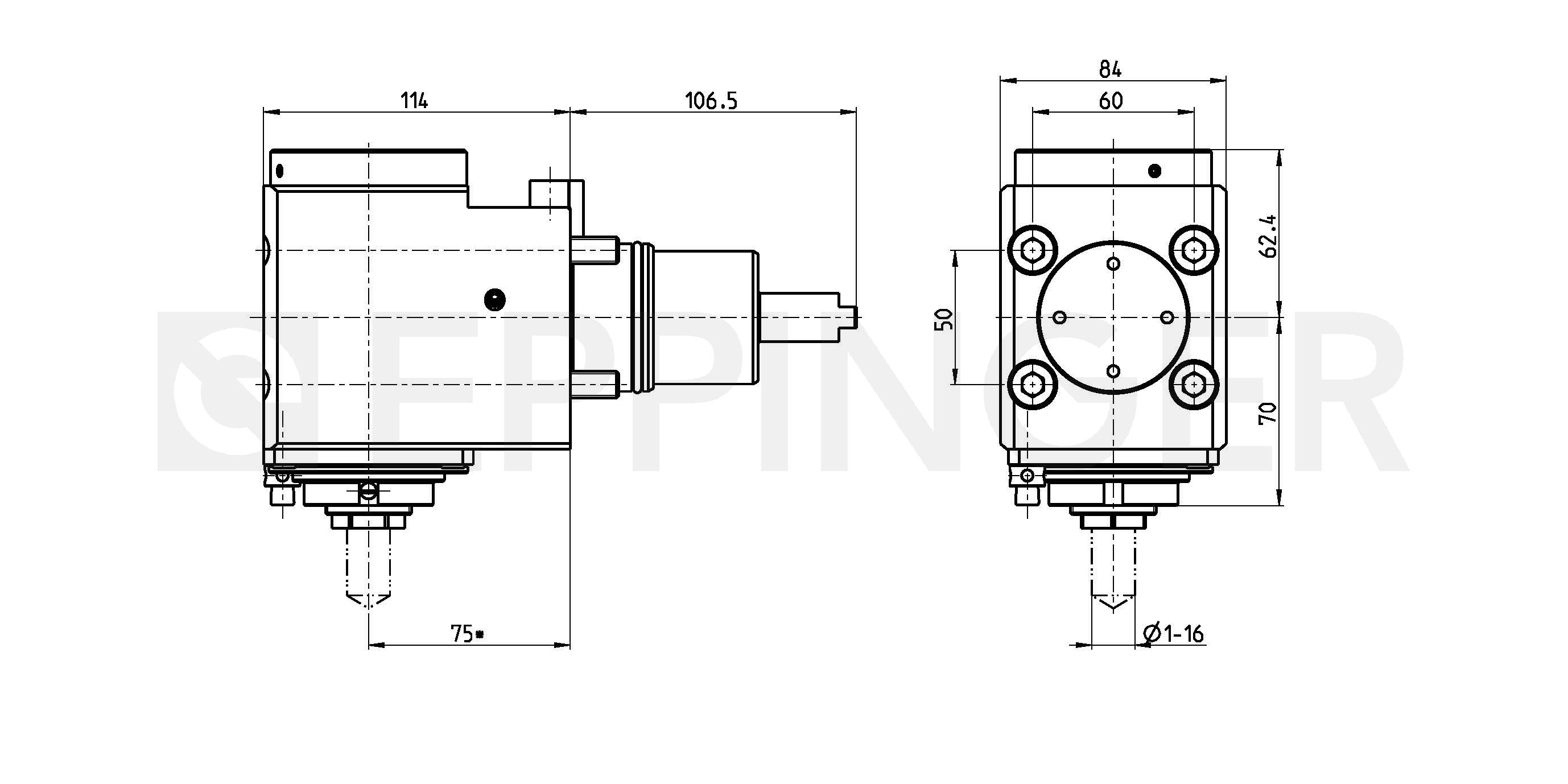

2D-View
3D-View
2D-View
3D-View / QR-Code
