Detailed View

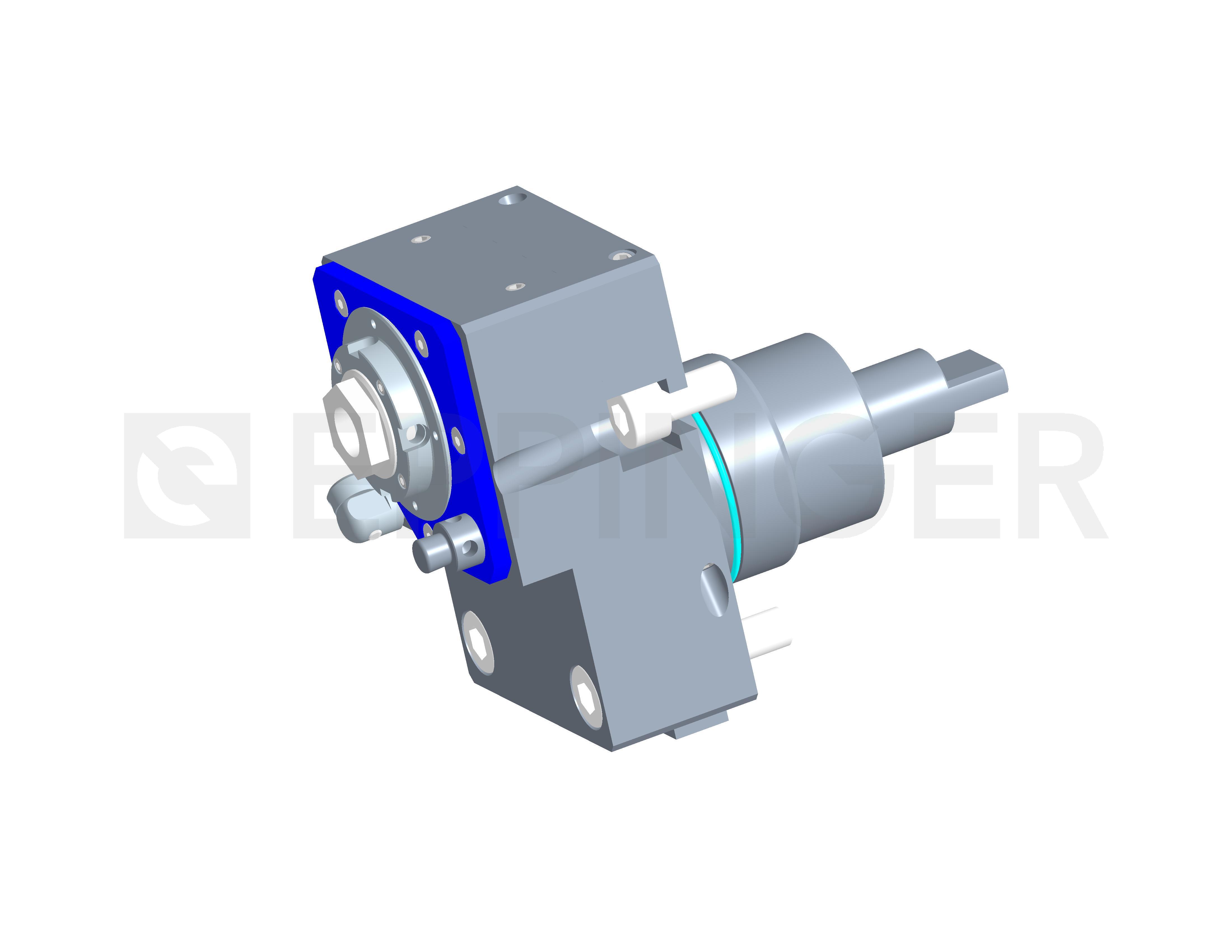

Drilling and milling head, straight, left hand-right hand, offset collet chuck, ER20A, PRECI-FLEX®, CC external coolant supply
| Part Number | 1109559 |
| for | Biglia B620 (YS) , |
| Ratio | 1:2.5 |
| rpm at Input | max. 6000 rpm |
| rpm at Output | max. 15000 rpm |
| Torque at Output | max. 17 Nm |
| Direction of Rotation |  |
| Scope of Delivery | without wrench and collets |
| Accessories | Collets see Equipment for Toolholders Z2. Wrench for spindle 0.002.277 PRECI-FLEX® Adapter Spindle cover see P99.1 |
Additional CAD Files:

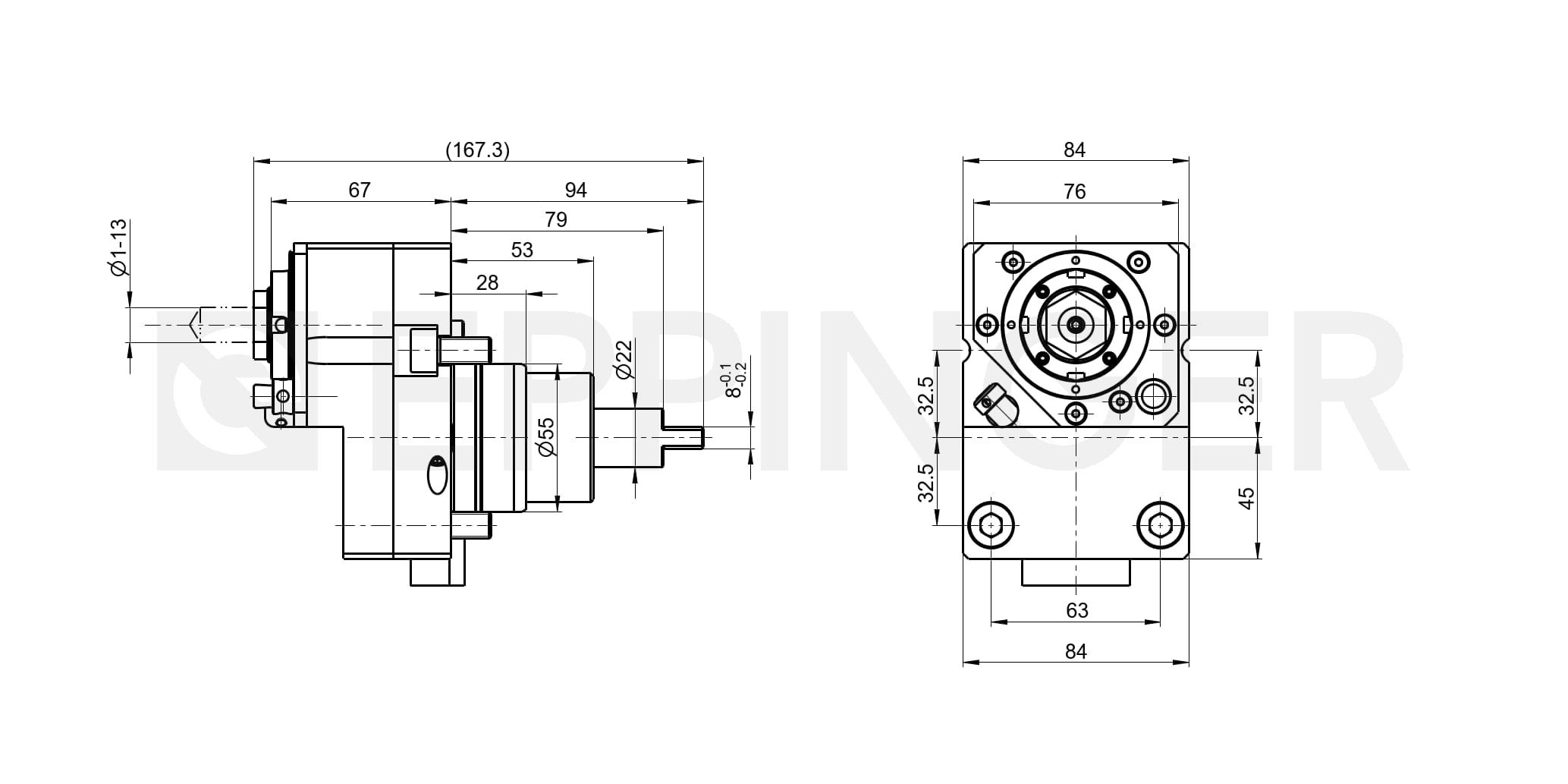

2D-View
3D-View

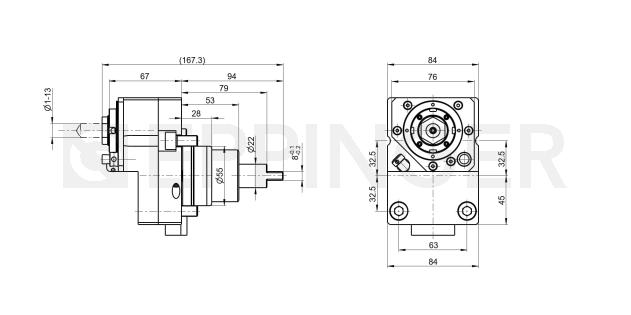

2D-View
3D-View / QR-Code
