Drilling and milling head, angular, left hand - right hand collet chuck, ER32A, PRECI-FLEX® external and central coolant supply, high pressure

Part Number 1105906
for Index G420 (VDI40) (W-Verzahnung)
Ratio1:1
rpm at Inputmax. 5400 rpm
rpm at Outputmax. 5400 rpm
Torque at Outputmax. 25 Nm
Direction of Rotation
Scope of Deliverysupplied with wrench, excluding collets * Actual size inscribed on the tool
AccessoriesCollets see Equipment for Toolholders Z2.1 Sealing washers see Equipment for Toolholders Z4.1 PRECI-FLEX® Adapter Spindle cover see P99.1 Spindle sealing see P99.1 Coolant tubes 0.000.378
Additional CAD Files:

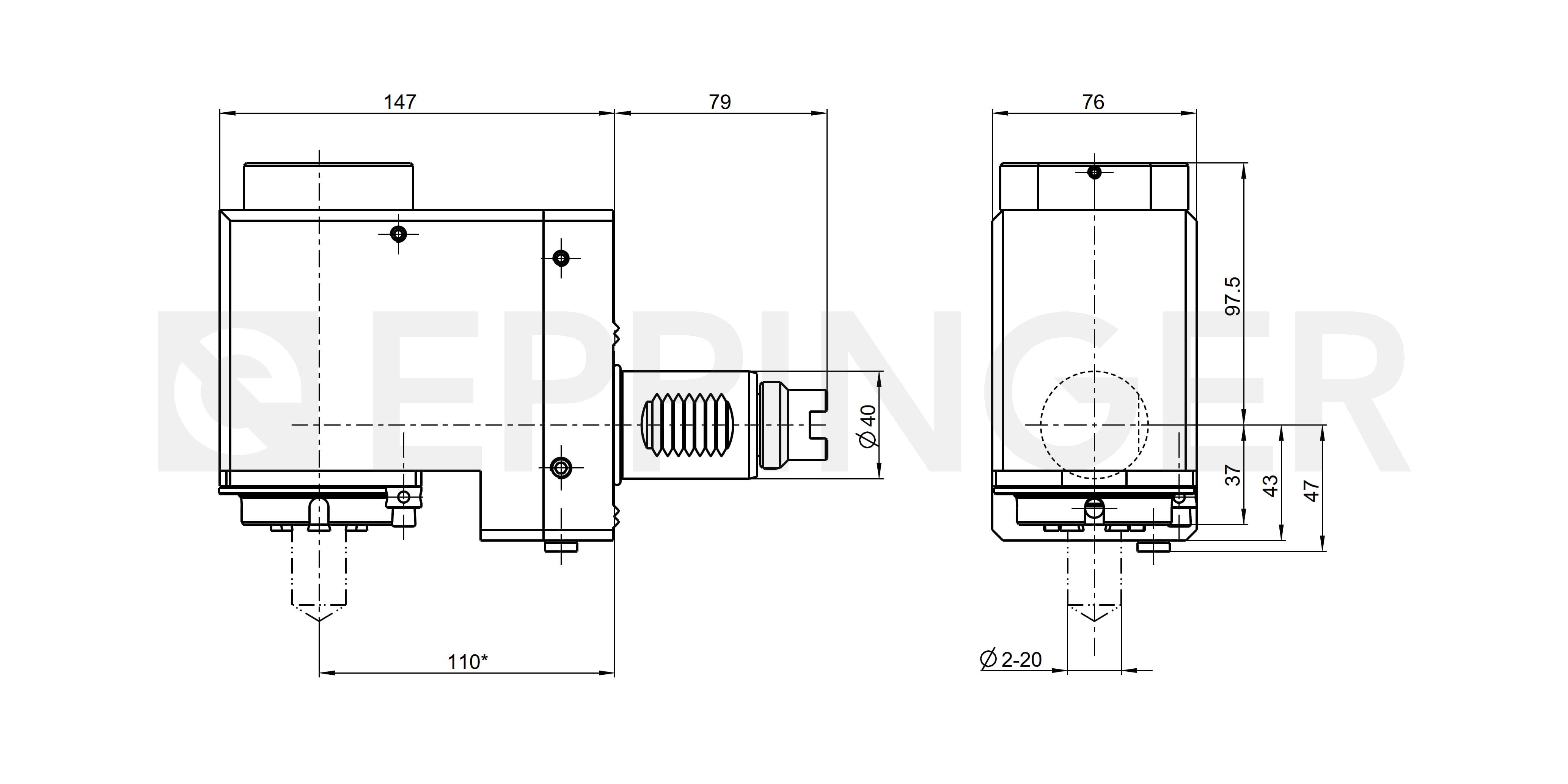

2D-View

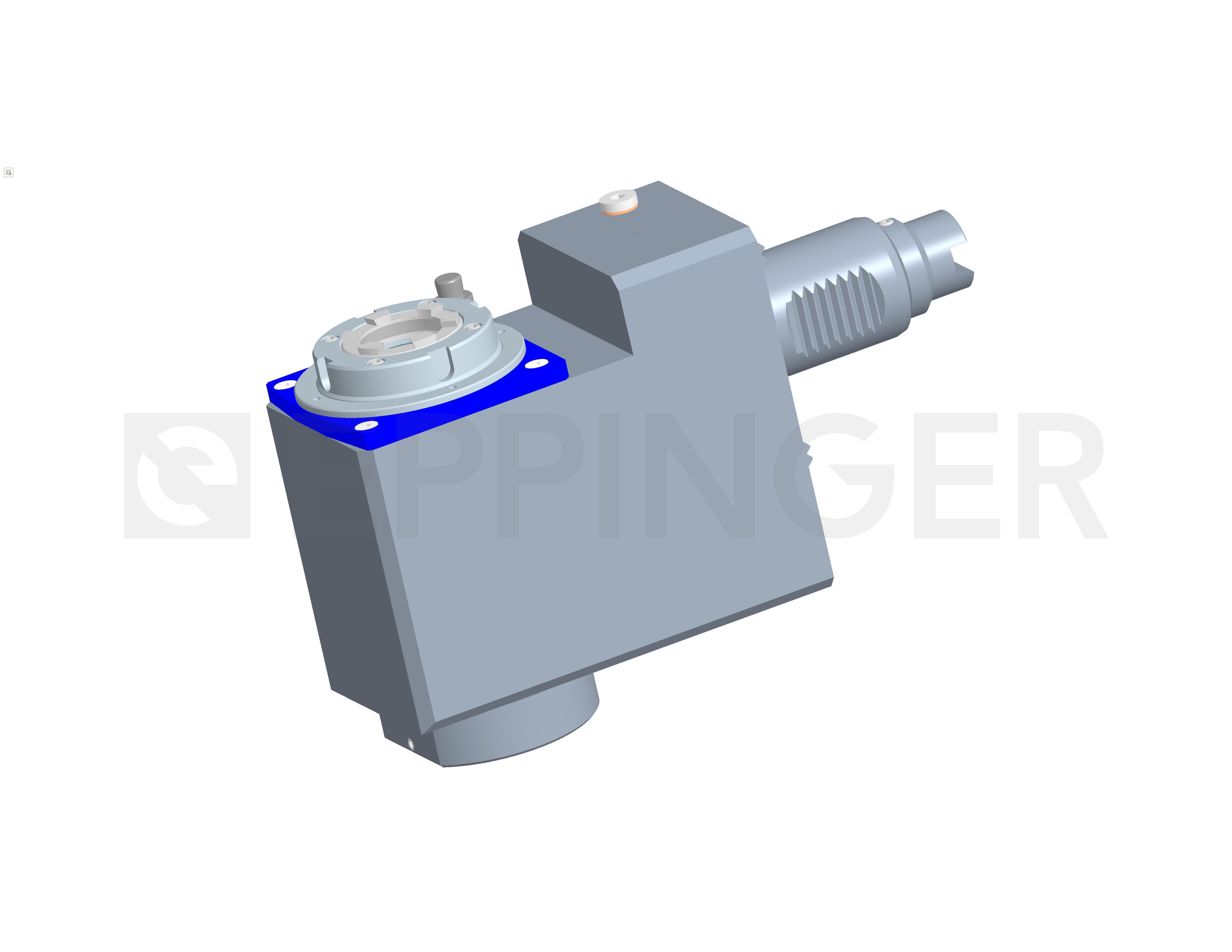

3D-View
2D-View
3D-View / QR-Code

Upload to Smart Phone
