Tapping head, angular, left hand, tension compensation collet chuck, ER20, external coolant supply
| Part Number | 9.630.092 |
| for | Baruffaldi TOERR 200/12 (40) |
| Ratio | 2:1 |
| rpm at Input | max. 4000 rpm |
| rpm at Output | max. 2000 rpm |
| Torque at Output | max. 40 Nm |
| Direction of Rotation |  |
| Scope of Delivery | supplied with one set of tap drivers and one wrench, excluding collets * Actual size inscribed on the tool |
| Accessories | Collets see Equipment for Toolholders Z2.1 Tap driver see Equipment for Toolholders Z10.1 |
Additional CAD Files:

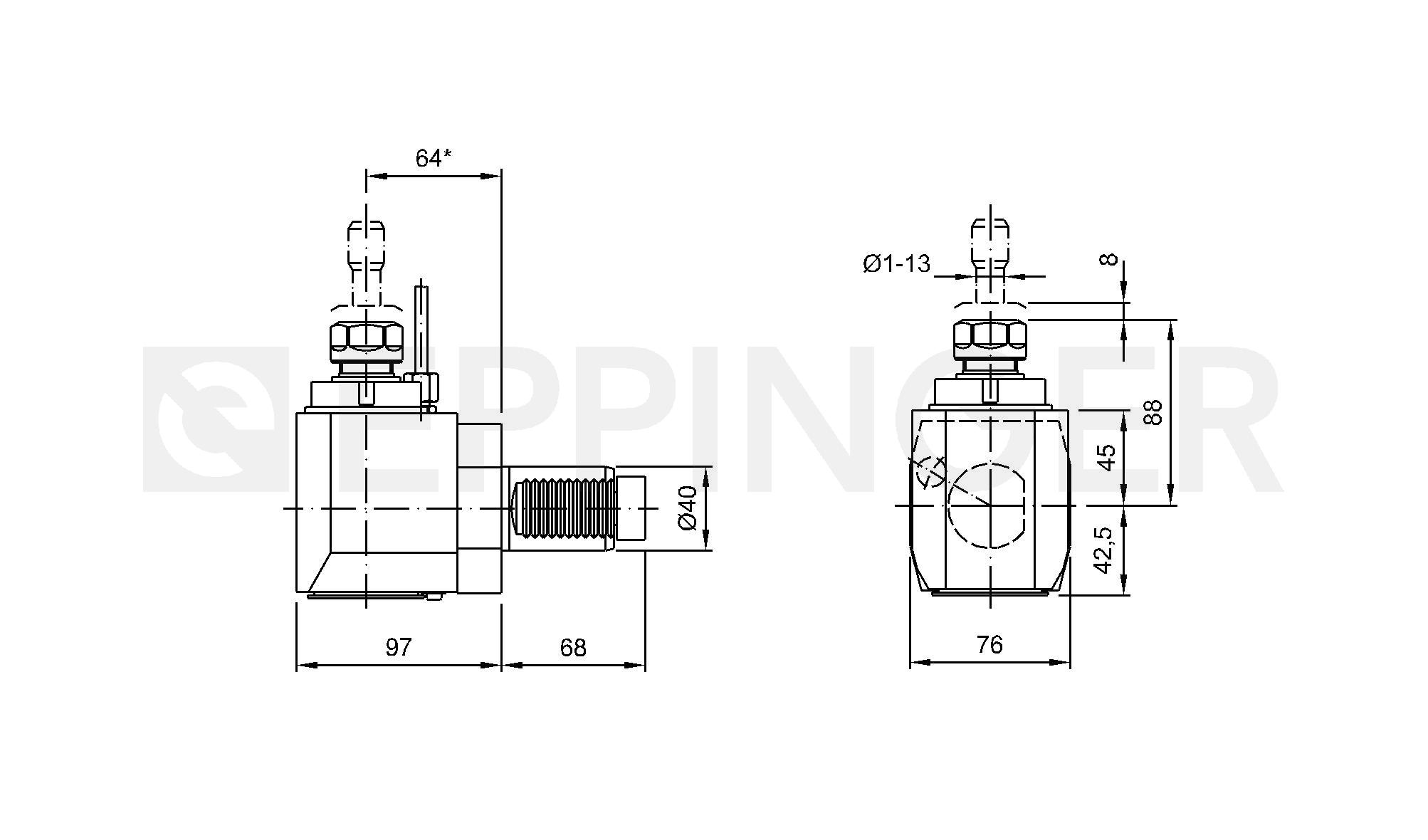

2D-View
3D-View
2D-View
