Detailed View
Drilling and milling head, straight, height adjustable in Y collet chuck, ER16, external coolant supply
| Part Number | 2.700.030 |
| for | 4 Machines |
| Ratio | 1:1 |
| rpm at Input | max. 6000 rpm |
| rpm at Output | max. 6000 rpm |
| Torque at Output | max. 16 Nm |
| Direction of Rotation |  |
| Scope of Delivery | supplied with wrench, excluding collets |
| Accessories | Collets see Equipment for Toolholders Z2.1 Cover for internal coolant 1088334 |
Additional CAD Files:

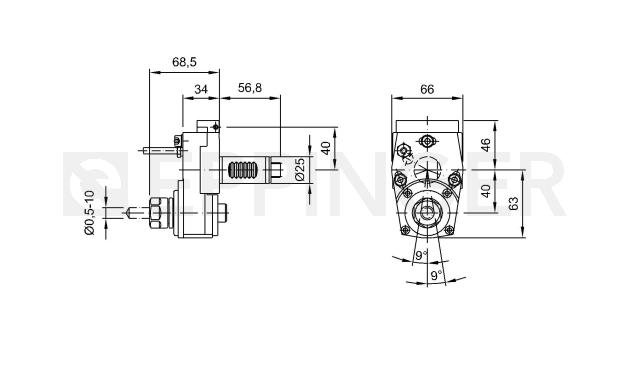

2D-View
3D-View
2D-View
