Detailed View
Drilling and milling head, angular, right hand, short collet chuck, ER20A, PRECI-FLEX®, CC external and central coolant supply, Nanolube
| Part Number | 7.174.751 |
| for | 12 Machines |
| Ratio | 1:1 |
| rpm at Input | max. 10000 rpm |
| rpm at Output | max. 10000 rpm |
| Torque at Output | max. 25 Nm |
| Direction of Rotation |  |
| Scope of Delivery | without wrench and collets * Actual size inscribed on the tool |
| Accessories | Collets see Equipment for Toolholders Z2. Wrench for spindle 0.002.325 PRECI-FLEX® Adapter Protection cover for spindle see P99.1 |
Additional CAD Files:

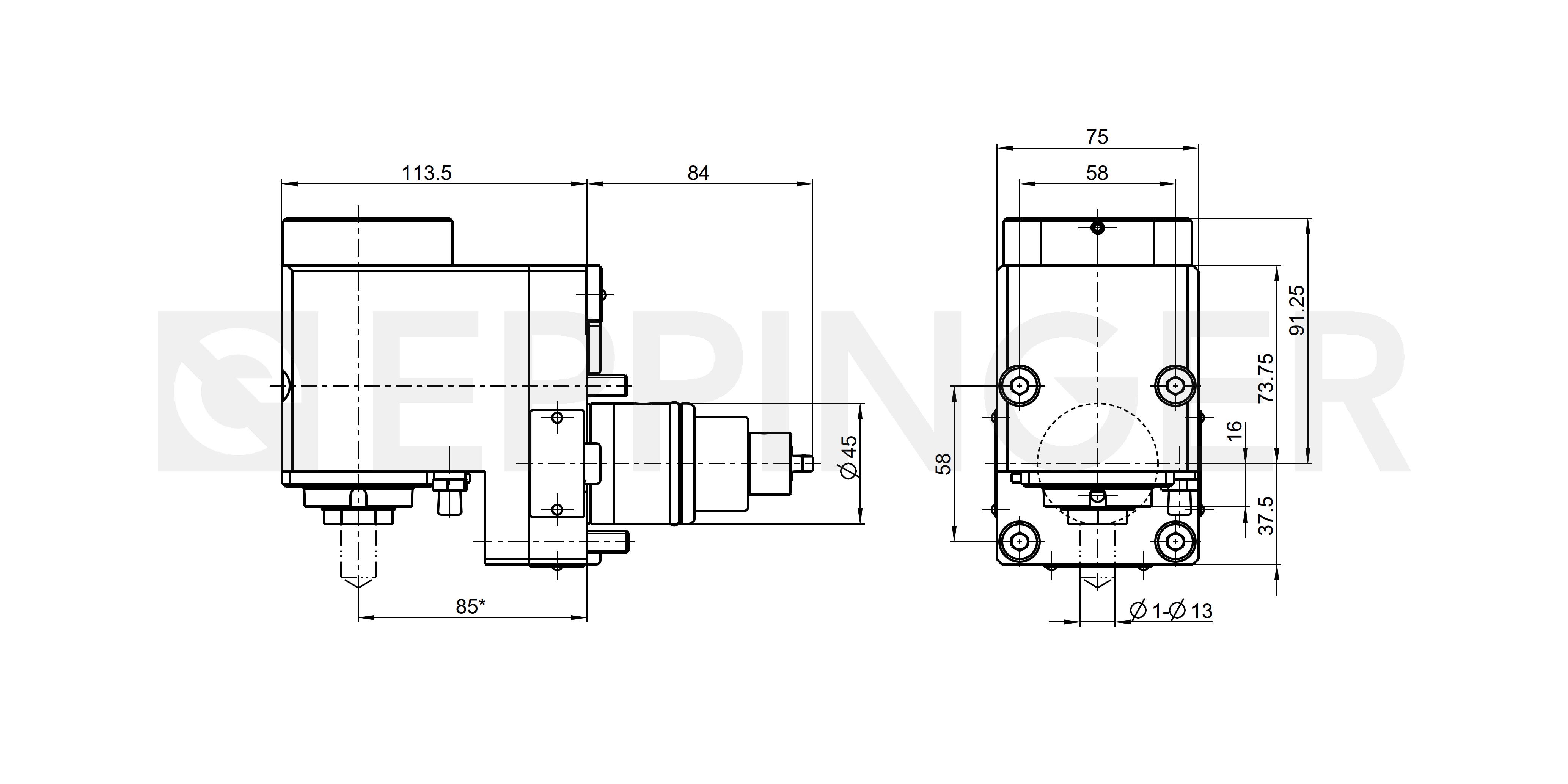

2D-View

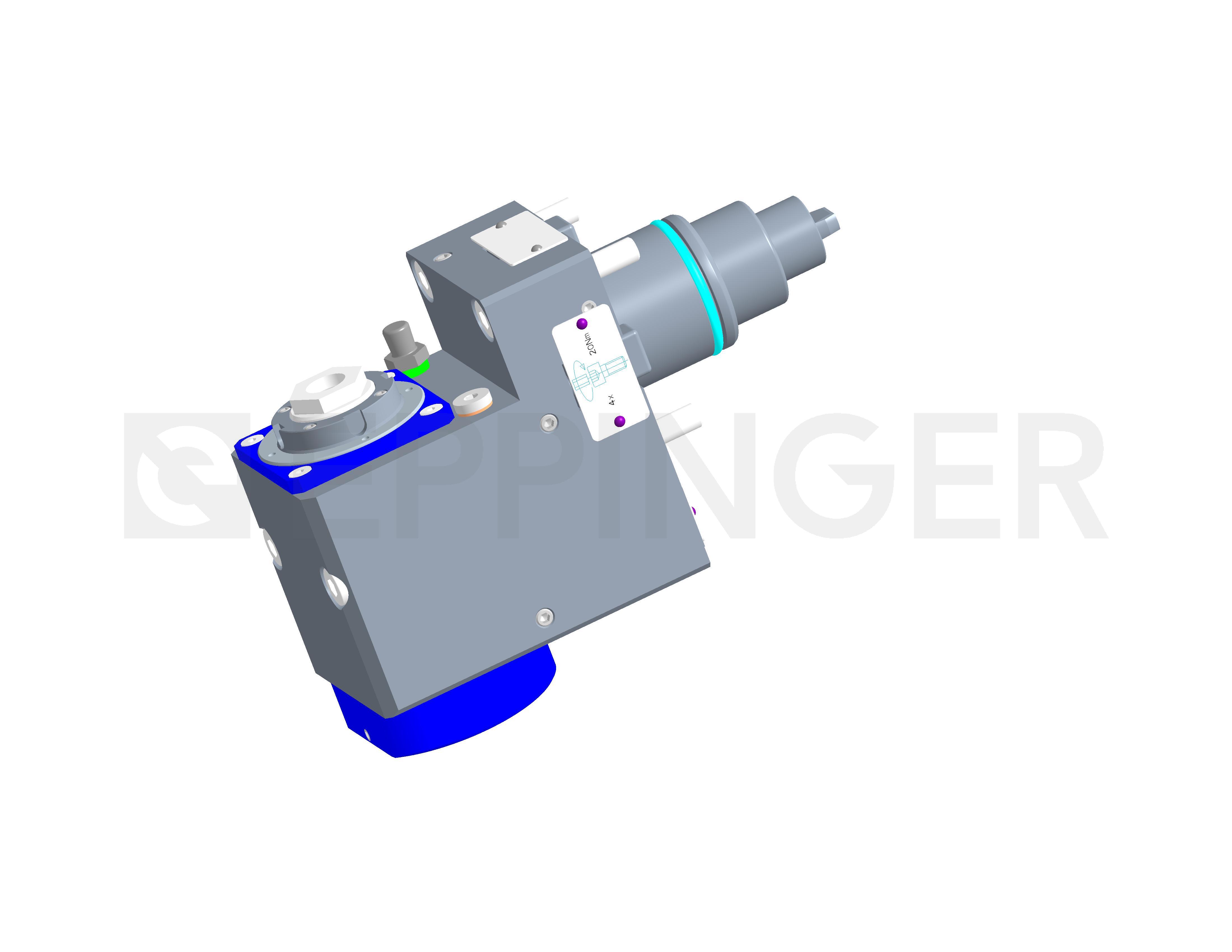

3D-View
2D-View
3D-View / QR-Code
