Detailed View
Drilling and milling head, straight, angular adjustable collet chuck, ER16A, CC external coolant supply
| Part Number | 1126537 |
| for | 20 Machines |
| Ratio | 1:1 |
| rpm at Input | max. 6000 rpm |
| rpm at Output | max. 6000 rpm |
| Torque at Output | max. 8 Nm |
| Direction of Rotation |  |
| Scope of Delivery | supplied with wrench and collet nut * Actual size inscribed on the tool |
| Accessories | Collets see Equipment for Toolholders Z2.1 |
Additional CAD Files:

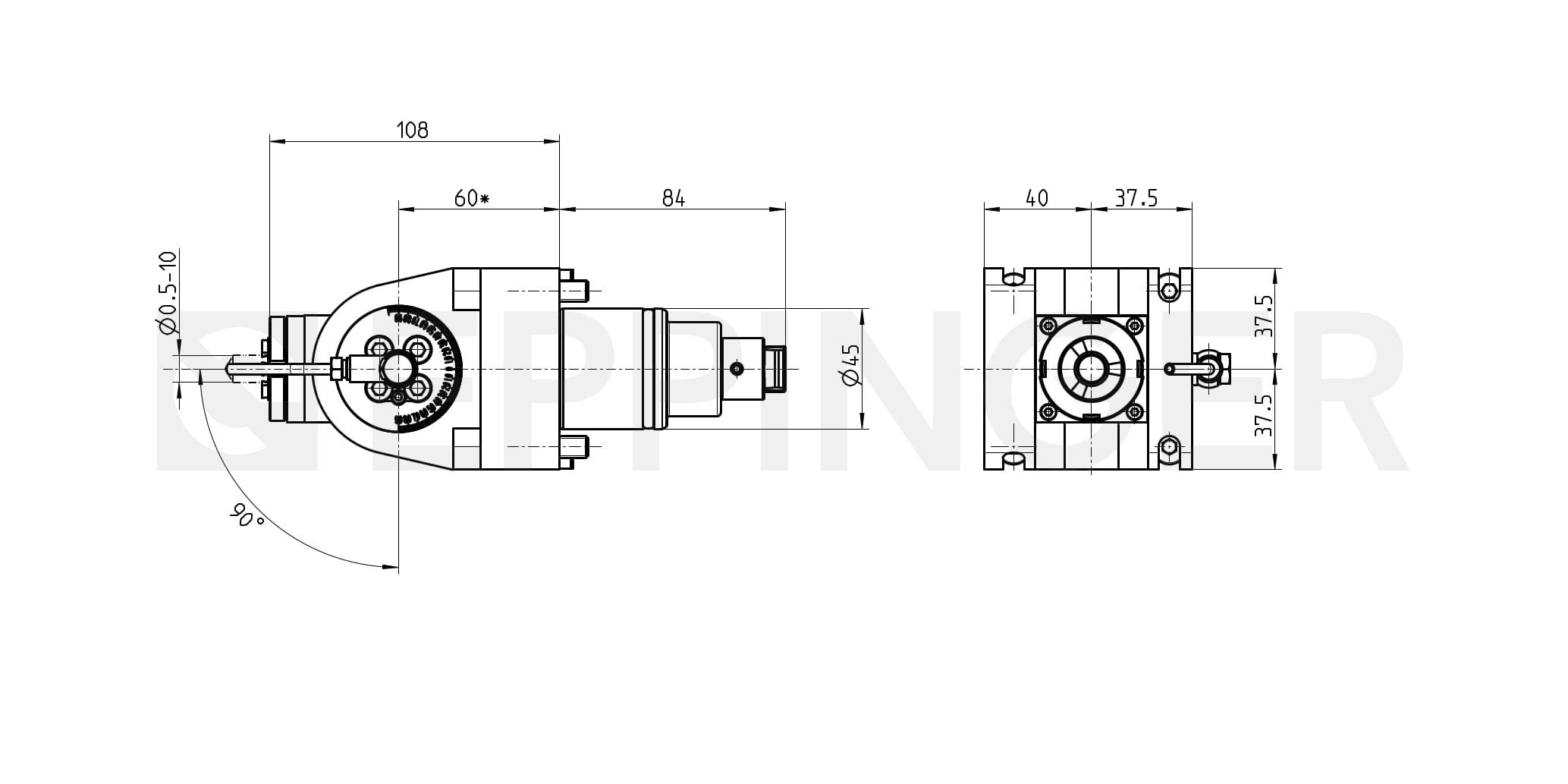

2D-View

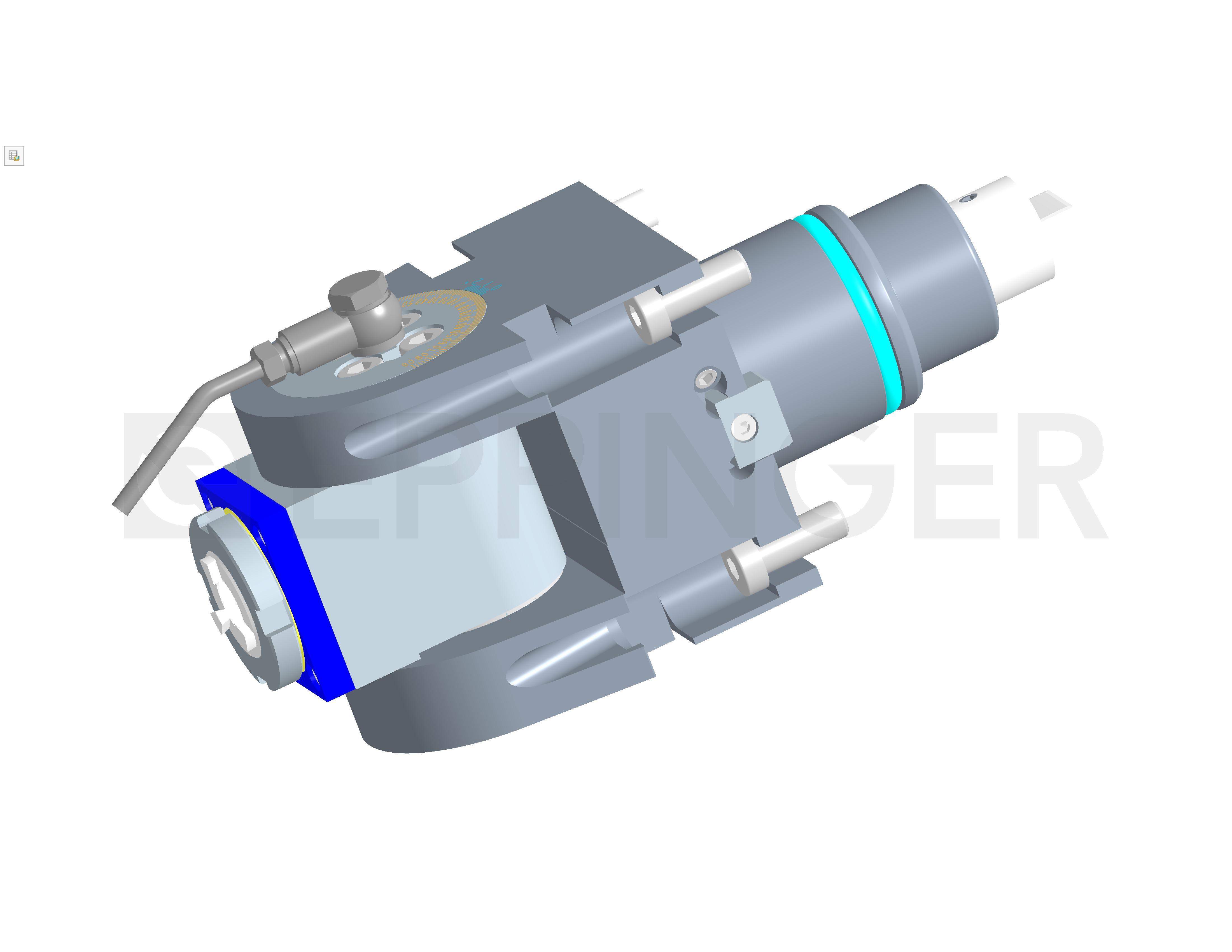

3D-View
2D-View
3D-View / QR-Code
