Detailed View

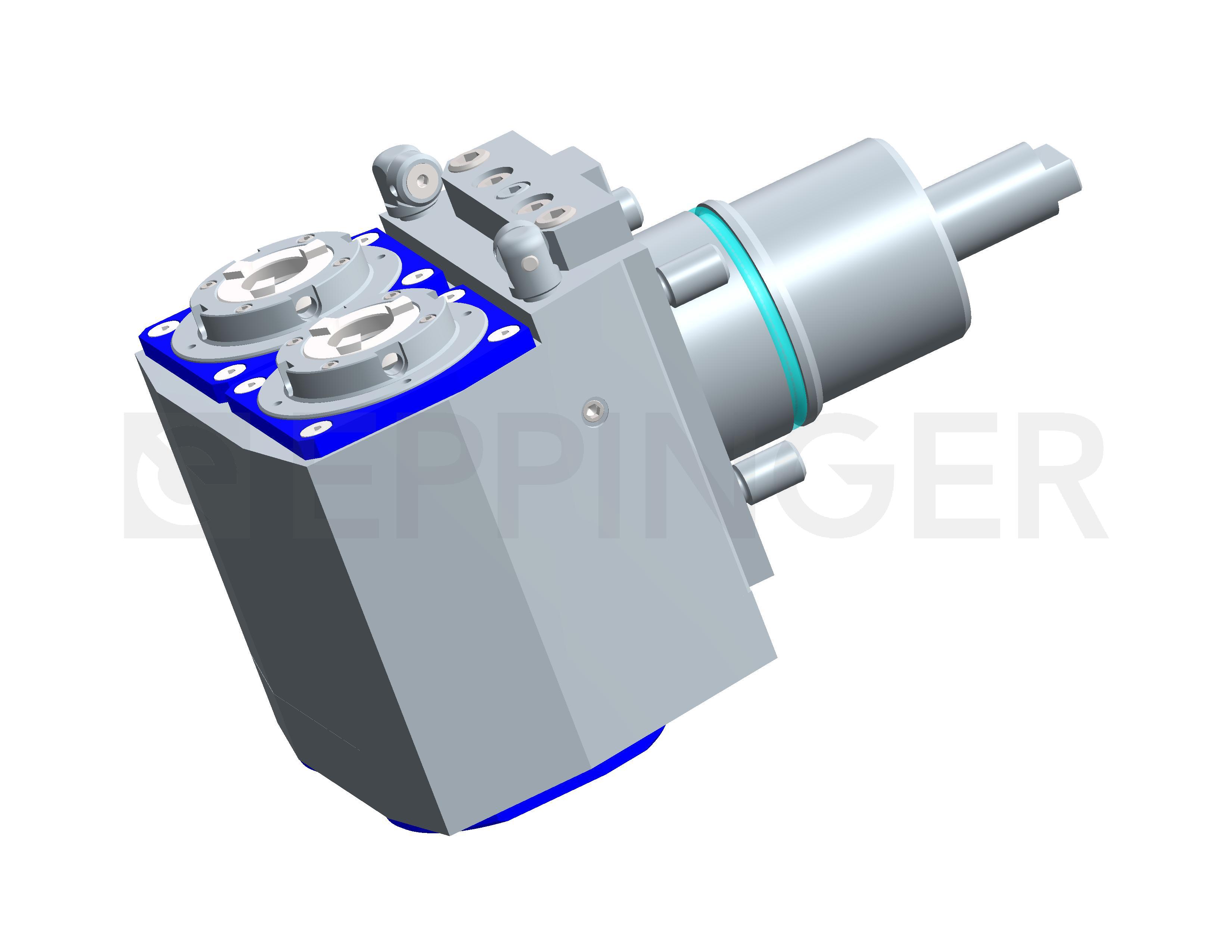

Drilling and milling head, angular, double sided collet chuck, ER20A, PRECI-FLEX® external coolant supply
| Part Number | 7.171.765 |
| for | 4 Machines |
| Ratio | 1:1,036 |
| rpm at Input | max. 6000 rpm |
| rpm at Output | max. 6214 rpm |
| Torque at Output | max. 25 Nm |
| Direction of Rotation |  |
| Scope of Delivery | without wrench and collets neighbor stations can be used to a limited conditions |
| Accessories | Collets see Equipment for Toolholders Z2.1 Wrench for spindle 10005, 15830 PRECI-FLEX® Adapter Spindle cover see P99.1 |
Additional CAD Files:

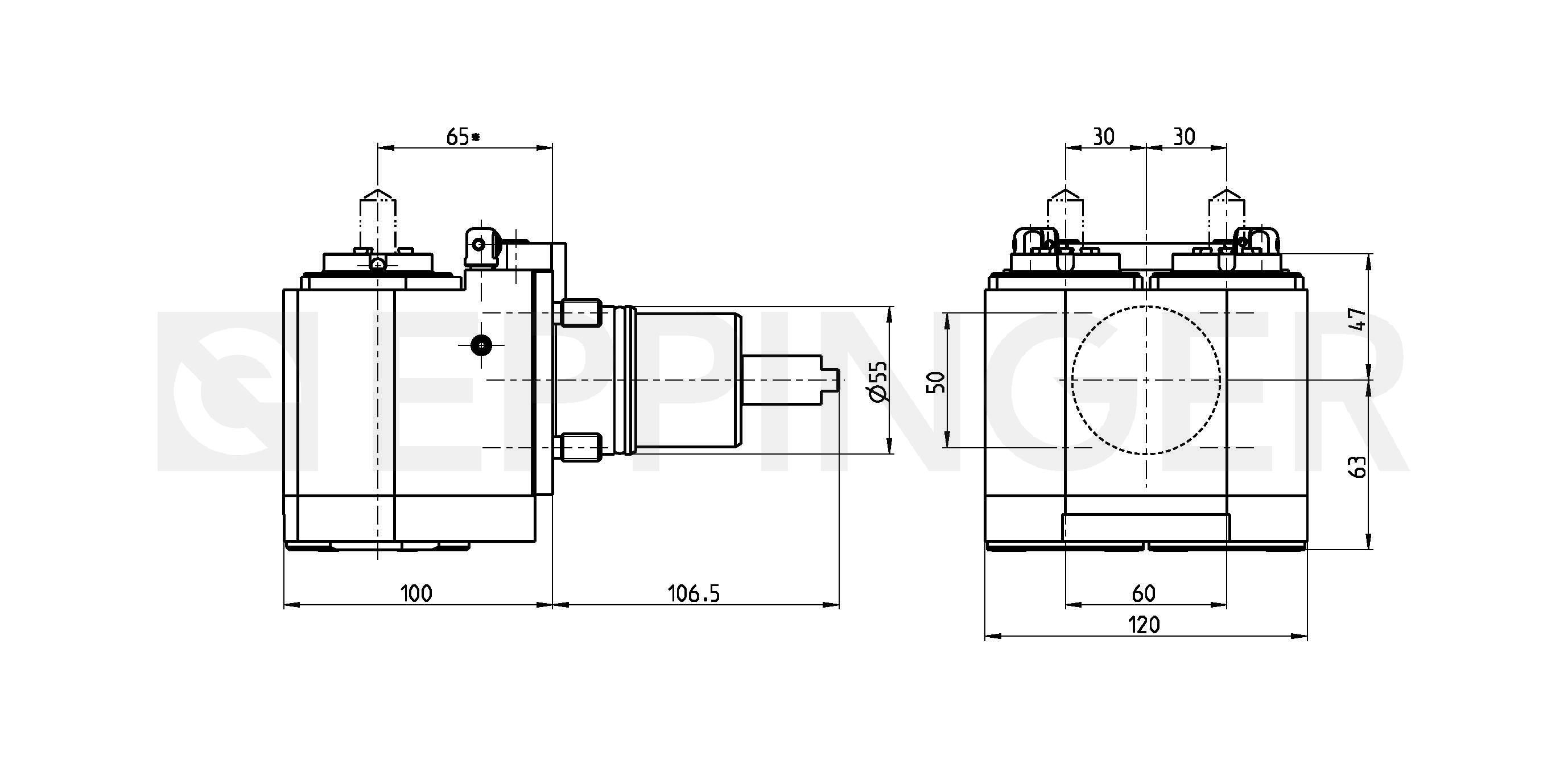

2D-View
3D-View
2D-View
3D-View / QR-Code
