Detailed View
Drilling and milling head, angular, right hand adjustable alignment pin quick change, PSC 40 external and central coolant supply
| Part Number | 7.079.405 |
| for | 4 Machines |
| Ratio | 1:1 |
| rpm at Input | max. 4000 rpm |
| rpm at Output | max. 4000 rpm |
| Torque at Output | max. 100 Nm |
| Direction of Rotation |  |
| Scope of Delivery | supplied with wrench |
| Accessories | Coolant tubes 0.000.378 Torque screwdriver 0.001.792 Torx 20 |
Additional CAD Files:

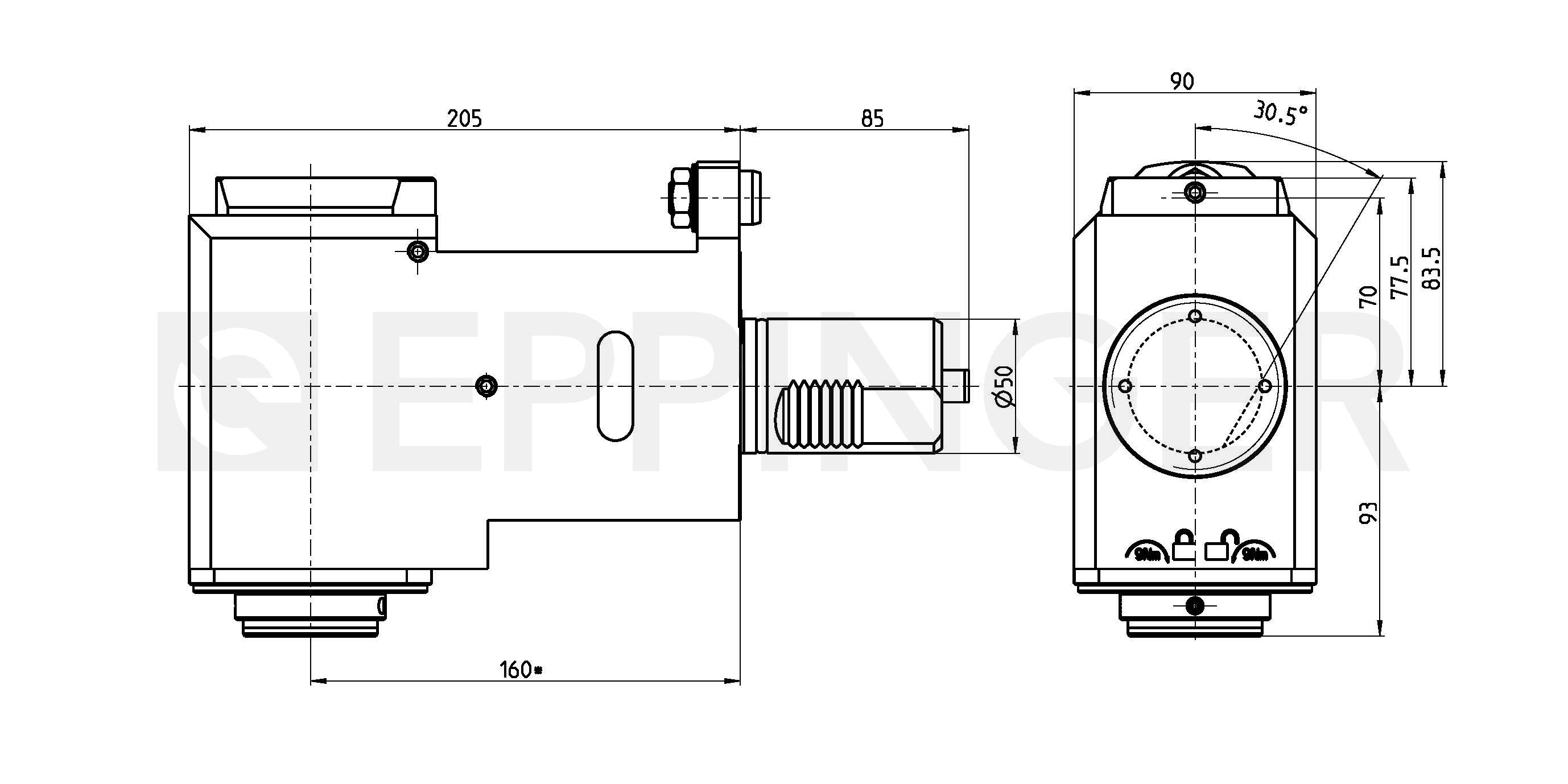

2D-View

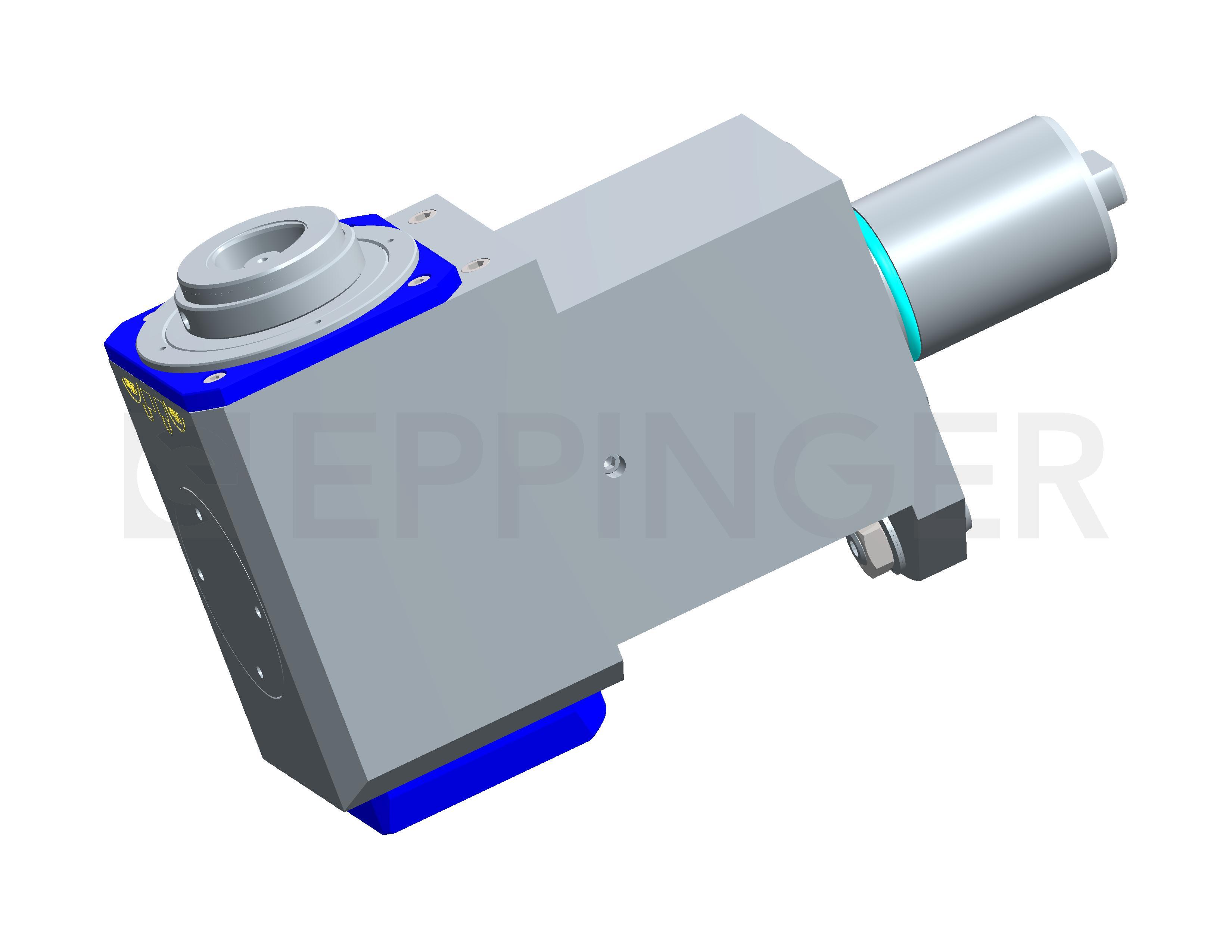

3D-View
2D-View
3D-View / QR-Code
