Detailed View
Drilling and milling head, angular, left hand - right hand quick change, EPPINGER PSC 32 external and central coolant supply
| Part Number | 7.078.823 |
| for | 4 Machines |
| Ratio | 1:1 |
| rpm at Input | max. 6000 rpm |
| rpm at Output | max. 6000 rpm |
| Torque at Output | max. 40 Nm |
| Direction of Rotation |  |
| Scope of Delivery | supplied with wrench * Actual size inscribed on the tool |
| Accessories | Coolant tubes 0.000.377 Torque screwdriver 0.001.886 Torx 15 |
Additional CAD Files:

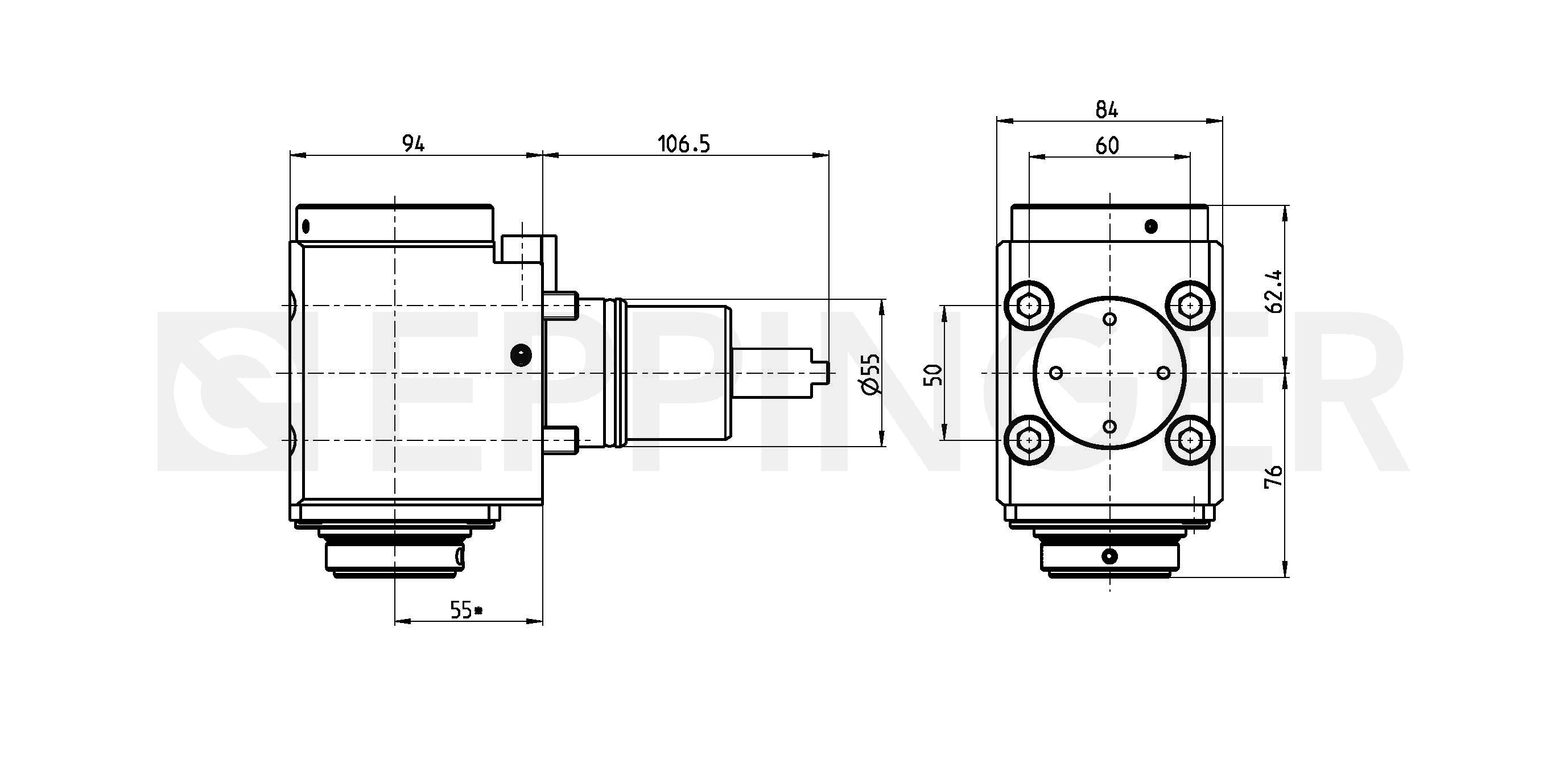

2D-View

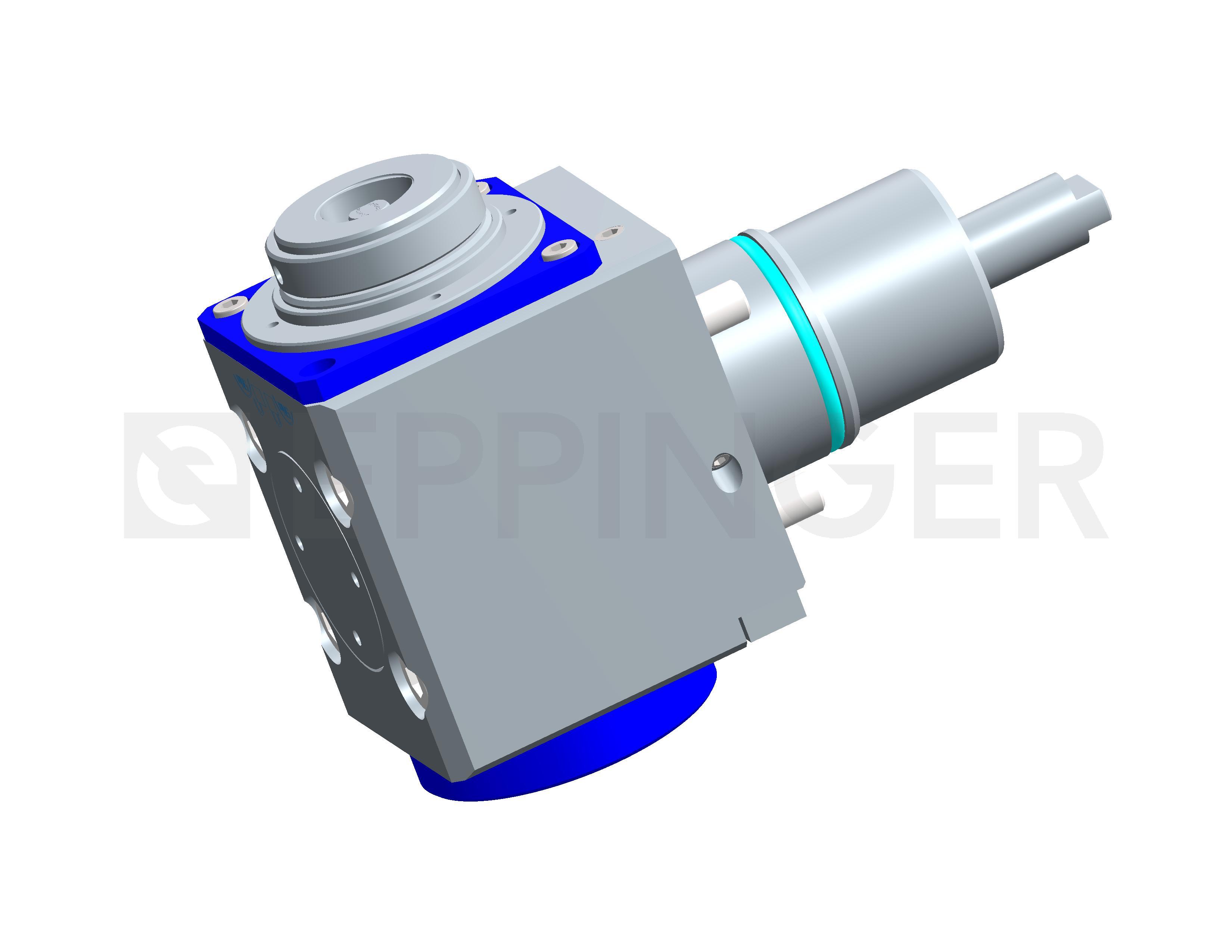

3D-View
2D-View
3D-View / QR-Code
