Device for gear milling chuck for cutter arbor Ø22, angle adjustable ±25°
upon request
| ID-No. | 1027435 |
| Part Number | 7.078.445 |
| for | 2 Machines |
| LF-Value | 120 mm |
| Ratio | 1,5:1 |
| rpm at Input | max. 4000 rpm |
| rpm at Output | max. 2667 rpm |
| Torque at Output | max. 60 Nm |
| Direction of Rotation |  |
Additional CAD Files:

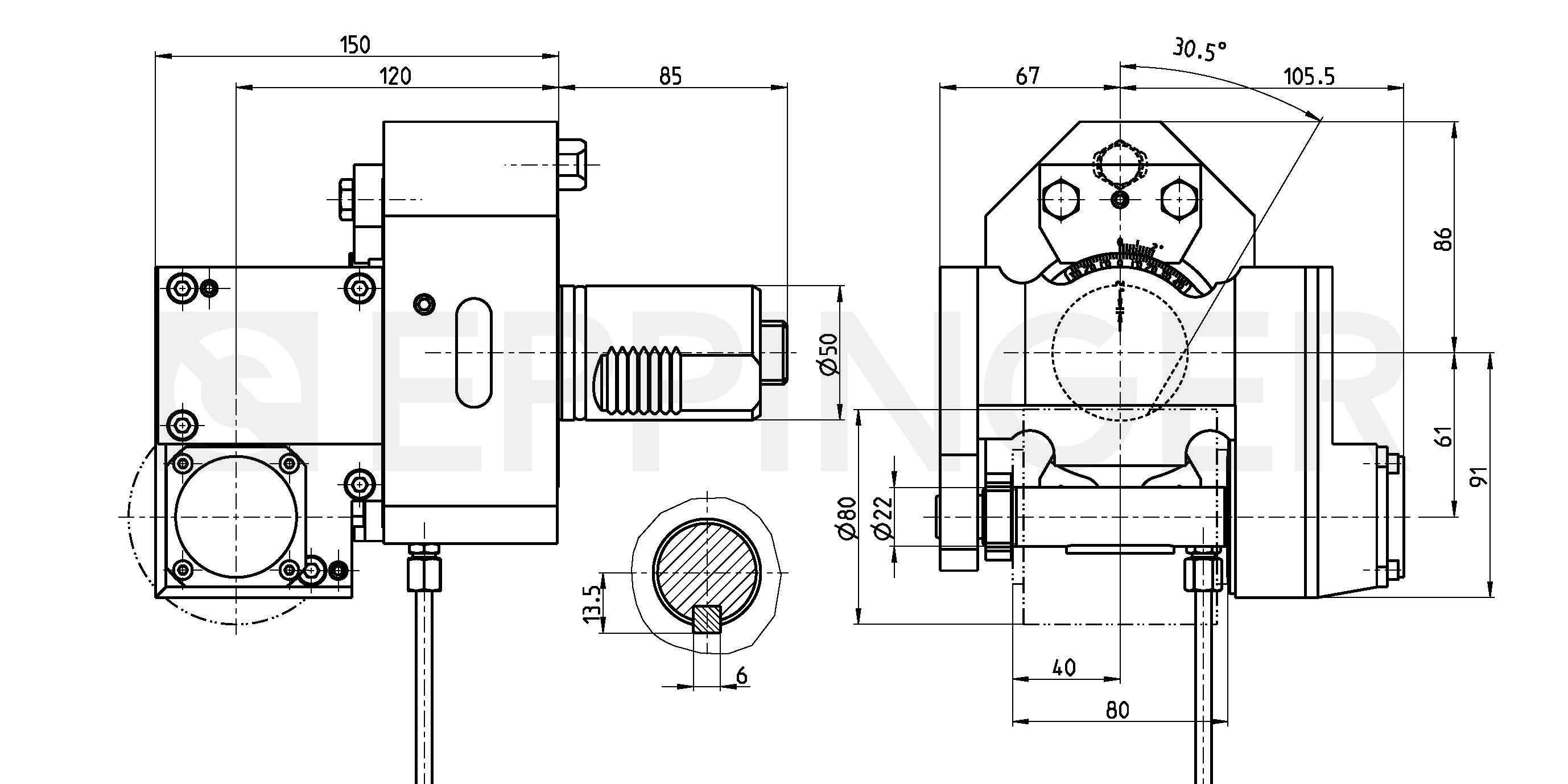

2D-View

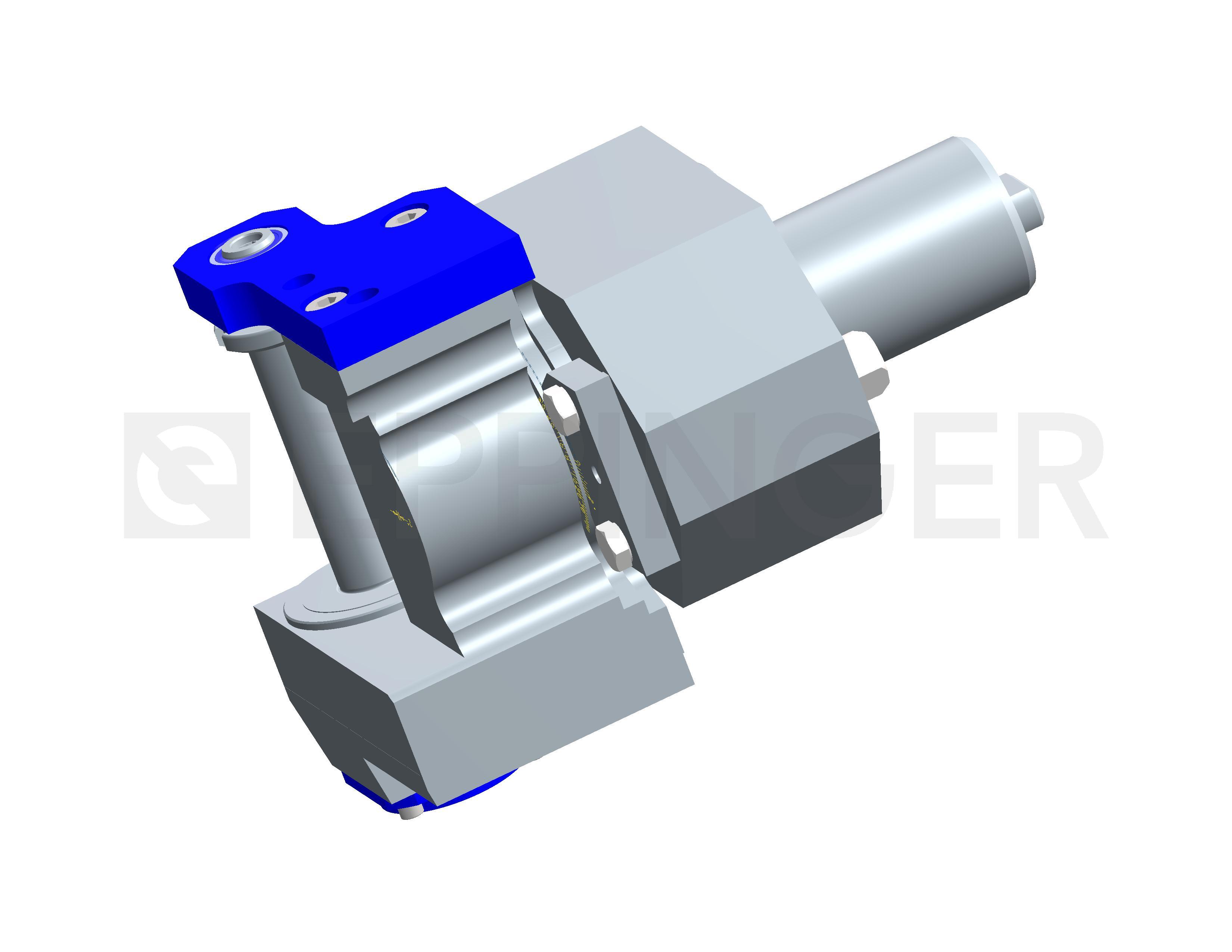

3D-View
2D-View
3D-View / QR-Code
