Drilling and milling head, angular collet chuck, ER32A, PRECI-FLEX®, external and central coolant supply
| Part Number | 7.078.307 |
| for | 6 Machines |
| Ratio | 1:1 |
| rpm at Input | max. 12000 rpm |
| rpm at Output | max. 12000 rpm |
| Torque at Output | max. 70 Nm |
| Direction of Rotation |  |
| Scope of Delivery | without wrench and collets * Actual size inscribed on the tool |
| Accessories | Collets see Equipment for Toolholders Z2.1 Sealing washers see Equipment for Toolholders Z4.1 Wrench for spindle 0.002.277 PRECI-FLEX® Adapter Spindle cover see P99.1 Spindle sealing see P99.1 Coolant tubes 0.000.378 |
Additional CAD Files:

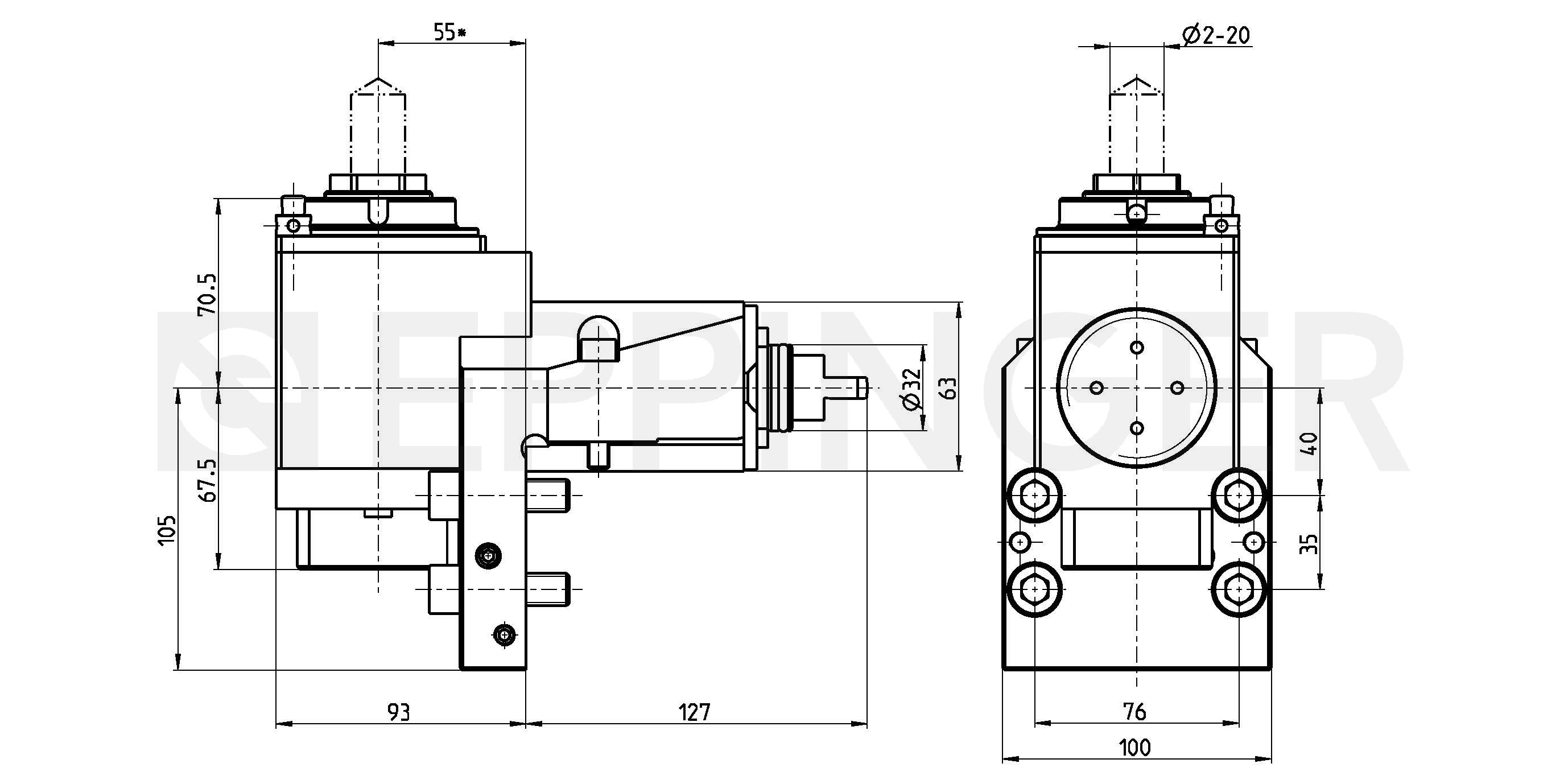

2D-View

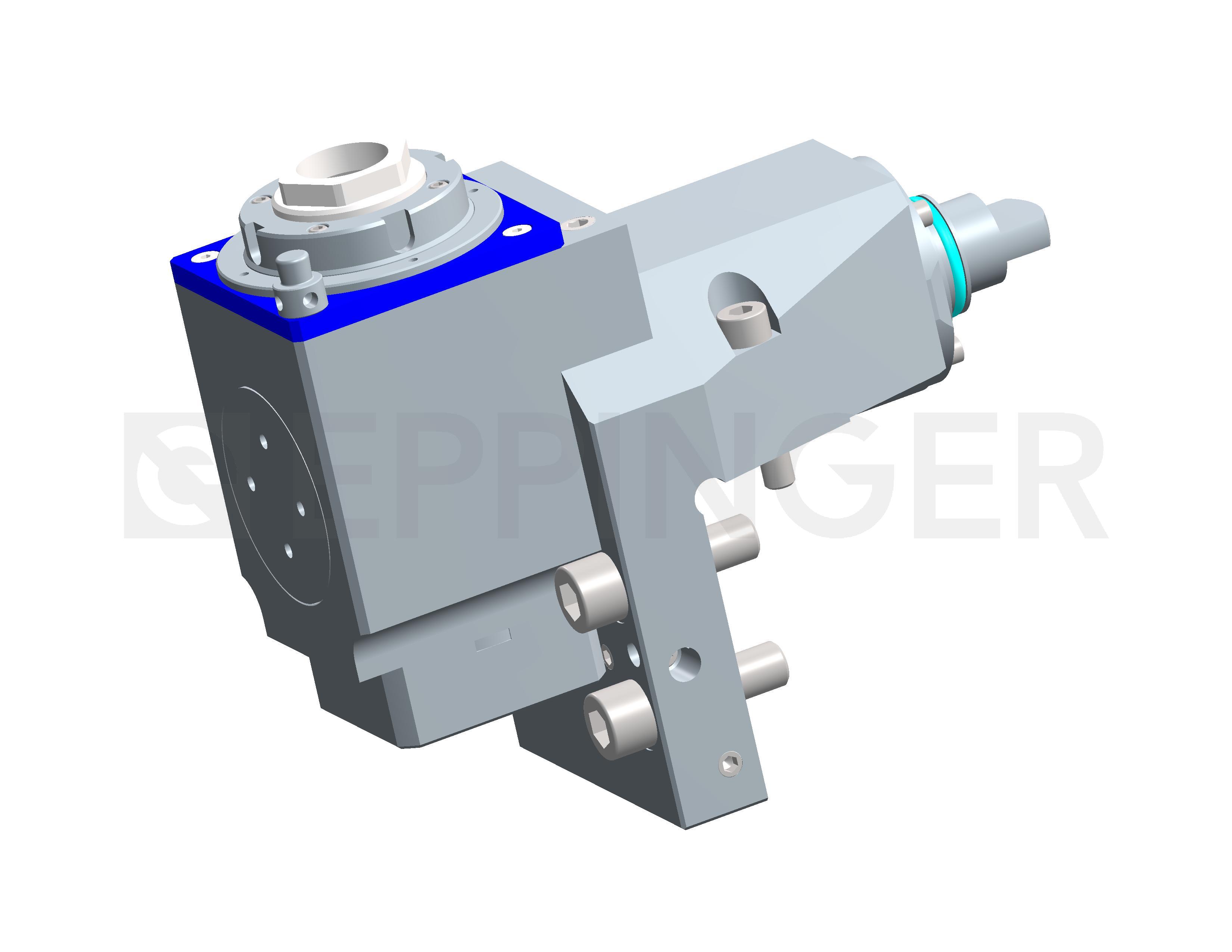

3D-View
2D-View
3D-View / QR-Code
